19
20. Remove timing belt guide wheel
Hint:

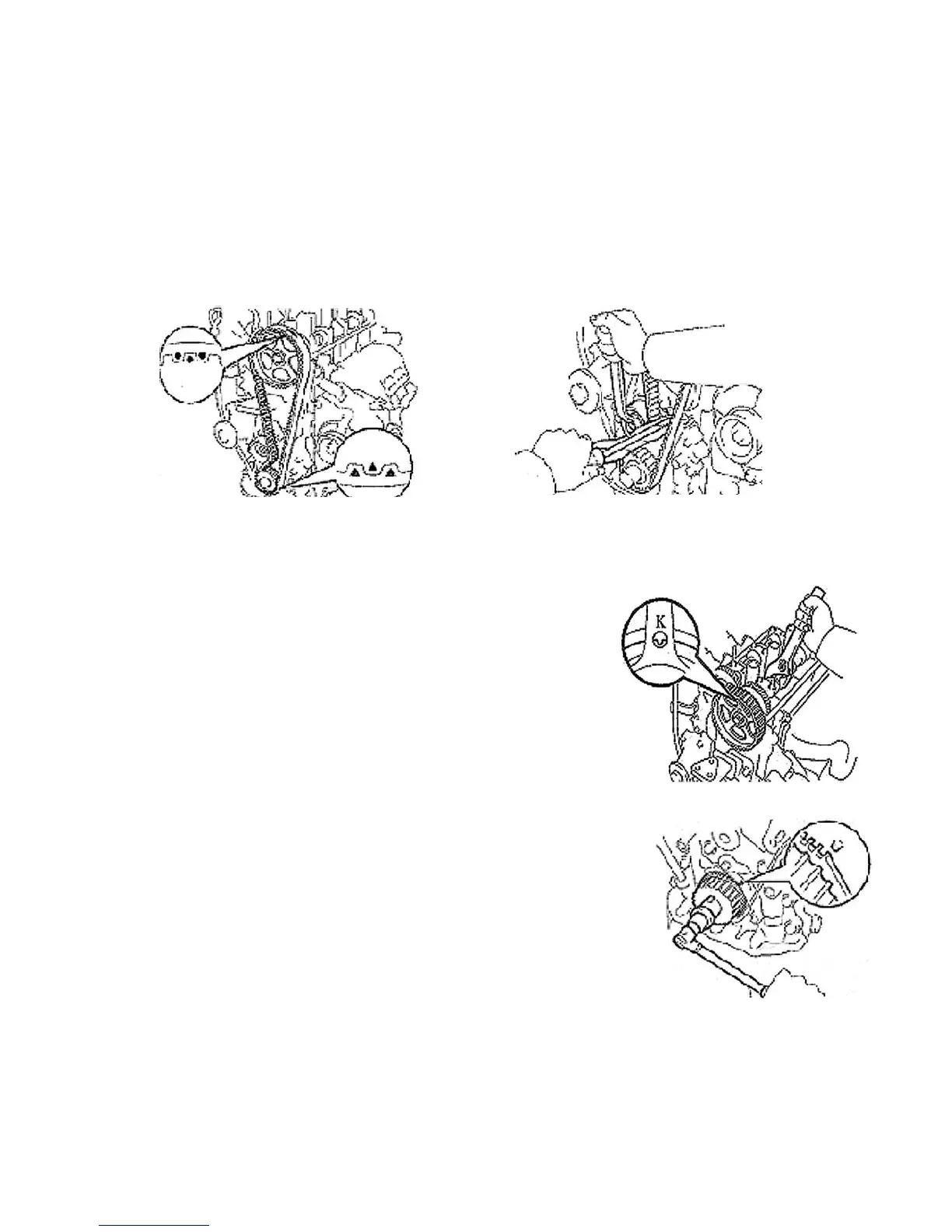

(a) Mark on pulley and belt (in engine turning direction) if re-using timing belt (See Figure 42).
(b) Install bolt to the idler pulley. Move pulley to its far left and tighten it temperarily (See Figure 43).
21. Remove spark plug and gasket
Figure 42
22. Install spark plug and gasket
23. Put the piston in Cylinder 1 to TDC compression position.
See (Figure 44)
(a) Turn camshaft hexagon part. Align the mark "K" on the camshaft
timing pulley to the mark on the bearing cap.
(b) Using the crankshaft pulley bolt, turn the crankshaft, align the mark
on crankshaft timing pulley to the oil pump.
24. Install timing belt. See (Figure 45)
Notice: The engine must be cool.
(a) Install timing belt. Check the tension force between crankshaft timing
pulley and camshaft timing pulley.
Hint: Align the marks if re-using the timing belt when removing. The
engine's rotating direction should be the same with the arrow's when
installing belt.
(b) Check valve timing. Loose idler bolt.
(1) Turn crankshaft from TDC to BDC slowly.
Notice: Crank always in clockwise.
(2) Align each pulley to timing mark as shown in the figure. If the timing mark is not aligned,
remove timing belt and reinstall it.
(3) Tighten idler bolt.
Torque: 37N. m
(4) Remove crankshaft pulley bolt.
Figure 44
Figure 45
Figure 43
