III. DIAGNOSIS OF CRASHED VEHICLEs
Whether the SRS is deployed or not, the checking and maintenance of the crashed vehicle shall be carried
out according to the following procedures.
1. Check the diagnostic signal of ECU
(1) Connect the check connector of the Hi-DS T Scan Meter.
(2) Read out the diagnostic results from Hi-DS T Scan Meter.
2. Repair procedures
(1) When the SRS is deployed, the following parts shall be renewed.
1Passenger airbag assembly.
2ECU.
3Driver airbag assembly.
Check the following parts, if abnormal, replace with new ones.
1Clock spring.
2Steering wheel, steering column and steering lower shaft
component.
The installation status of driver airbag assembly in relation to steering wheel.
1Check and see if there is abnormal noise in the steering wheel, the action of the same is good,
or the clearance is normal.
2Check the union joint of the wire harness for damage and the terminal for distortion.

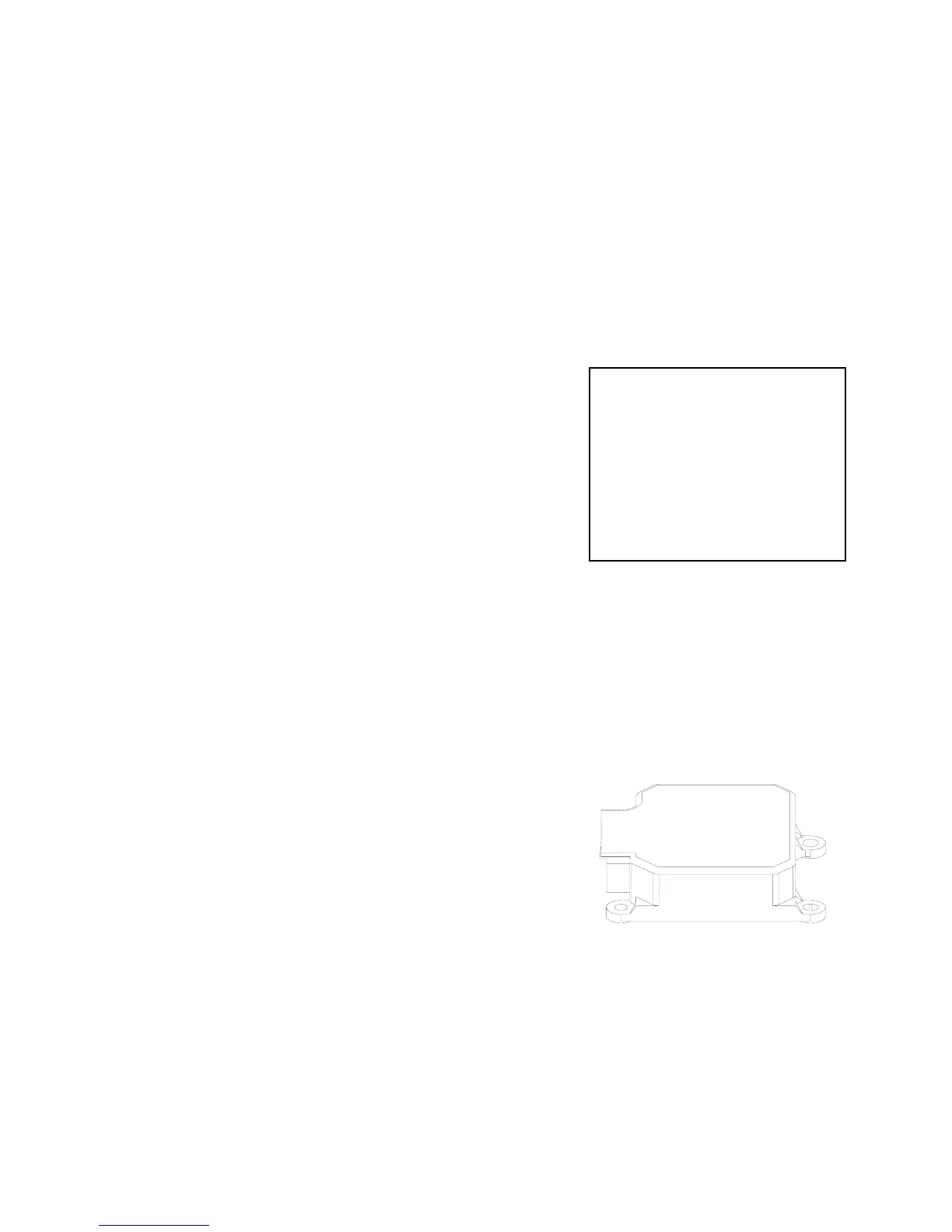

3. ECU
(1) Check the brackets of the ECU Case for recess, crack, distortion, etc.
(2) Check the union joint for damage and terminal for distortion.
(3) Check the installation status of he ECU brackets
1Check the hood for recess, crack, distortion, etc.
2Check the union joint for damage, terminal for distortion
and wire harness for seizure.
3Check the case of the gas generator for recess,
crack and distortion.
NOTICE
Due to shock, when the battery power
supply is insufficient, the scan Meter
cannot communicate with ECU, the
instrument panel wire harness shall be
checked and maintained or external
power source shall be used.
