267

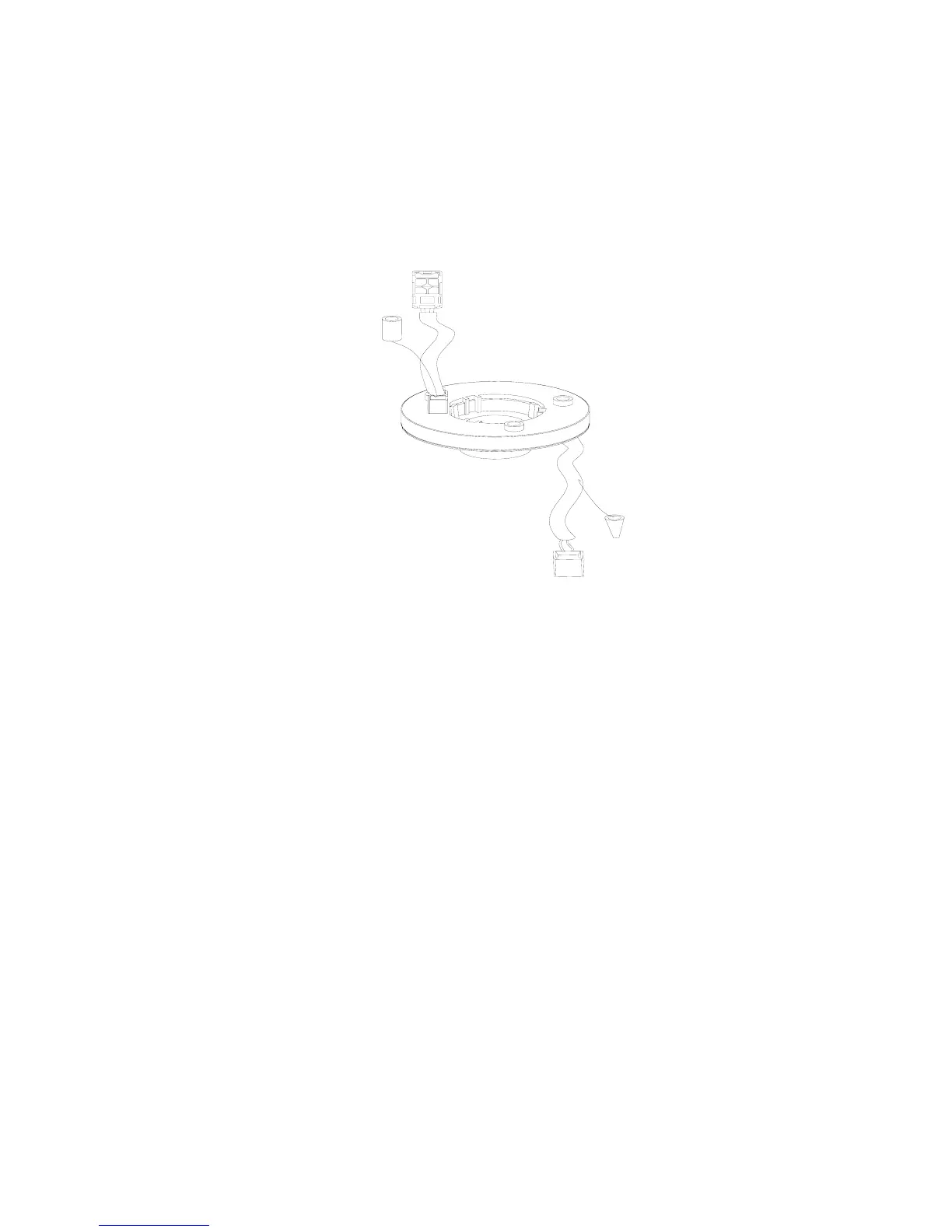

(5) With reference to the figure below, insert thin probes into the current tester to check the conduction of
the terminals.
V. KEY POINTS FOR SCRAPPING THE AIRBAG ASSEMBLY
The airbag shall be deployed according to the following procedures before scrapping the airbag assembly or
a vehicle installed with an airbag.
1. Scrapping of an airbag assembly prior to deployment
(1) Deploy inside a vehicle
1Park the vehicle in a flat area
NOTICE
Never insert probe directly from the lower end of the connector.
NOTICE
The airbag shall be deployed before being scrapped.
The airbag shall be deployed outside the vehicle before being changed.
The airbag shall be deployed in the vicinity of a smoke detector since smoke will appear when the airbag is
deployed.
When being deployed, the airbag will create much noise. People nearby shall wear noise muffler to close
their ears. Avoid do the job within the residential areas.
To Next Page
