271

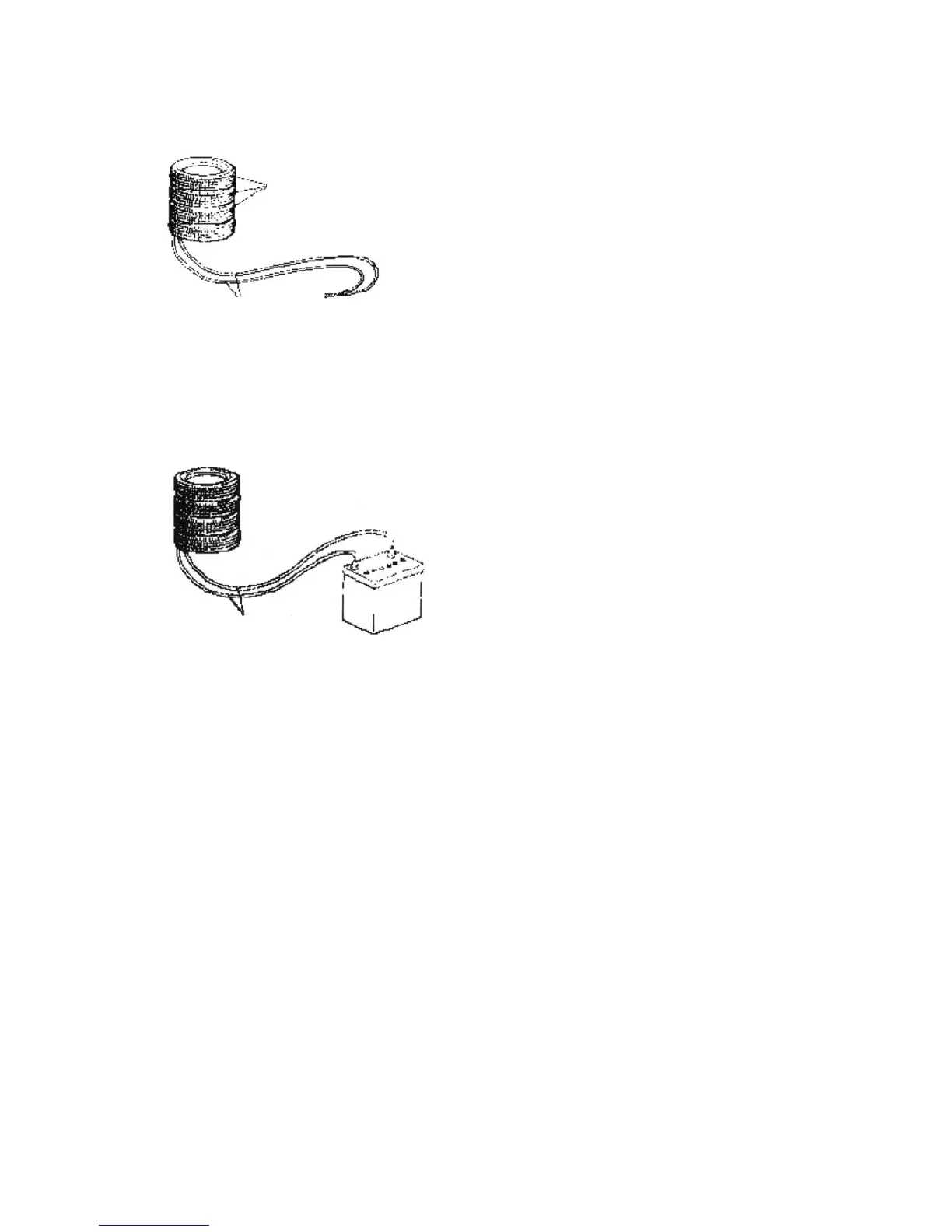

7 Put three old tires without hubs onto the tire used to fix the driver airbag assembly (see the figure below).
8 Try to disconnect at a location far away from the vehicle the connector of the wire harness for deployment
of the driver airbag assembly, connect with the two terminals of the battery removed from the vehicle
and deploy the airbag (see the figure below).
9 the deployed driver airbag assembly shall be scrapped according to the scrapping procedures.
Wire Harness for Deployment
Old Wheels
without Hub
Wire Harness
for Deployment
NOTICE
Make sure to deploy the driver airbag assembly when there is no person close by.
After the driver airbag is deployed, the gas generator is of high temperature. Keep it for over 30 minutes
until it gets cool for use
