25

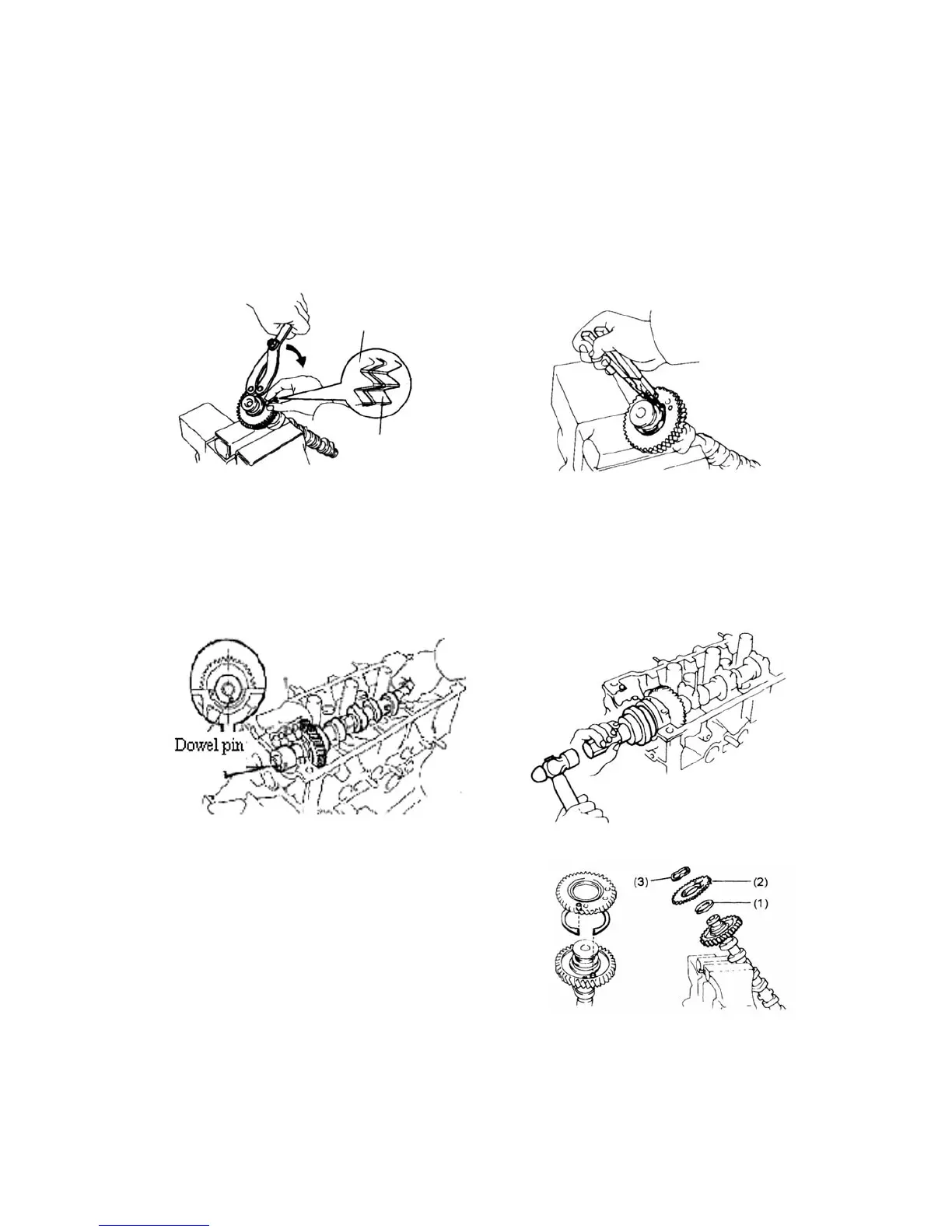

(b) Remove the counter gear of the camshaft.
(1) Clamp the camshaft's hexagon on the vise.
(2) Turn the counter gear cloclwise, Remove the service bolt.
(3) Remove the snap ring with a circlip pliers. See (Figure 57).
(4) Remove waved gasket, camshaft counter gear and the camshaft gear spring. See (Figure 58)
24. Remove and install spark plug hole gasket. See Provision 15 and 16, Section 3 Timing Belt
Replacement for detailed information. See (Figure 44, 45).
Figure 57
25. Install camshaft
(a) Install exhaust camshaft and turn camshaft counterclockwise to make the dowel pin cross the vertical
line a little. See (Figure 59).
(b) Apply grease to a new oil seal lip and install it into the oil seal. See (Figure 60).
Figure 59
(c) Install camshaft counter gear.
(1) Clamp the camshaft's hexagon head with a vise.
(2) Install camshaft gear spring, camshaft counter gear and waved washer. (Figure 61).
Hint: Align the pin on the gear to the spring end of the counter gear.
(3) Install the snap ring with a circlip plier.
(4) Turn the counter gear clockwise with the special tool. Align the
holes on the camshaft drive gear. Install the service bolt.
Figrue 61
Rotate
Figure 58
Figure 60
