325
3. Engine Hood Adjustment
Fix the engine hood to the engine hood hinge with bolts. the engine hood in vertical direction through the hinge
hole. Vertically adjust the front by adjusting the engine hood bumper and adjust the engine hood master lock
striker. The clearance tolerance is 1.0 mm-3.0 mm, while the flatness tolerance is 0 mm-1.0 mm.
(1) Open the engine hood
(2) Loose the bolt between the engine hood and the hinge
(3) Adjust the clearance between the engine hood and the front fender. Loose the bolt and move the engine
hood for adjustment.
(4) Close the engine hood
(5) Check for alignment
(6) Open the engine hood and adjust it as specified
(7) Adjust the engine hood bumper
(8) Check for alignment
(9) Adjust the engine hood master lock striker:
Loose 3 pin bolts on the engine hood lock. Move the engine hood lock for adjustment.
(10) Tighten the bolt between the engine and the hinge.
(11) Close the engine hood
4.Processing The Brace
Notice
• The air in the brace is of no color, no taste and no
poison.
(1) Wear the eye protection.
(2) Level the brace.

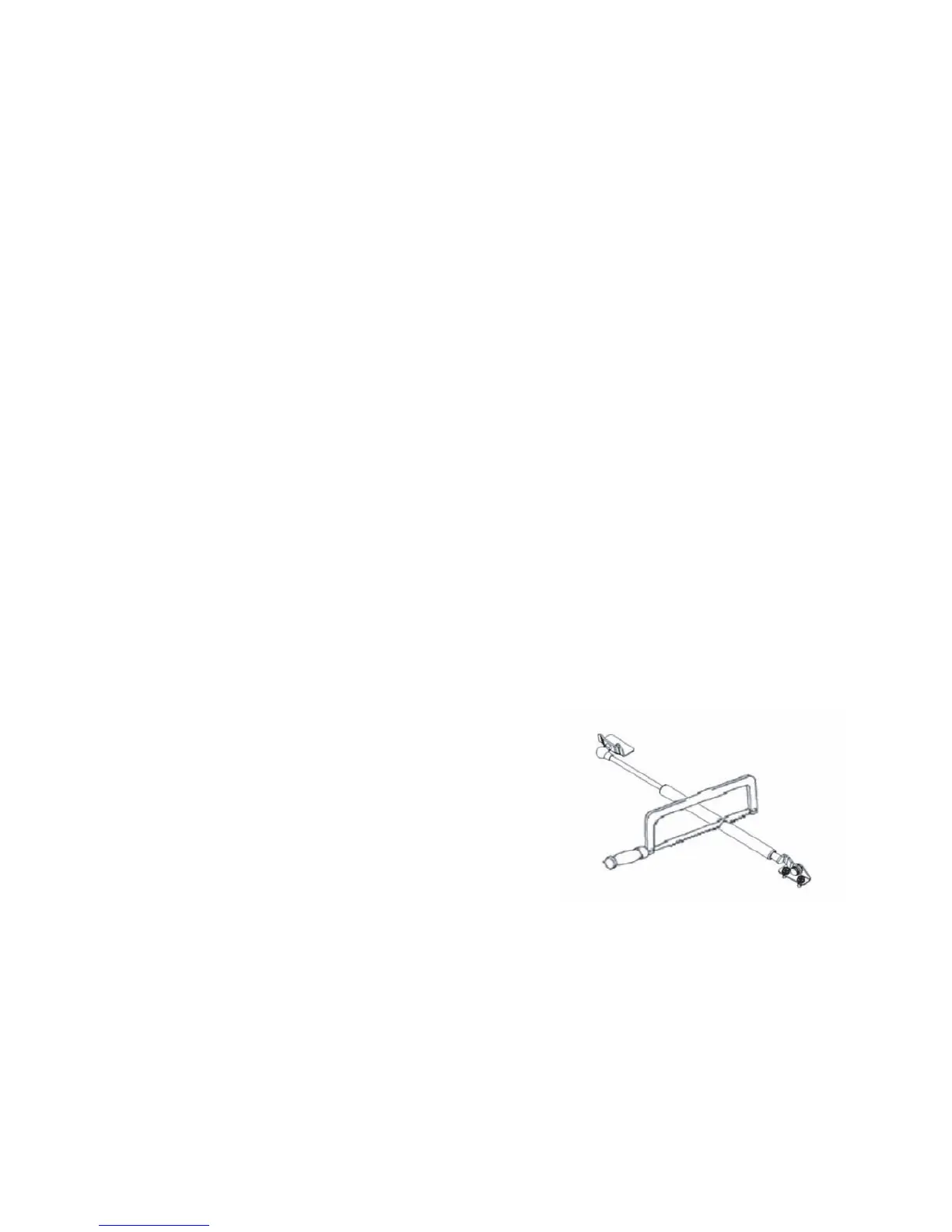

(3) Cut the brace with the hack saw as shown in the figure on
the right.
(4) Bleed the air from the brace
(5) Abandon the brace
