Geely CK Series 2007 User Manual

370

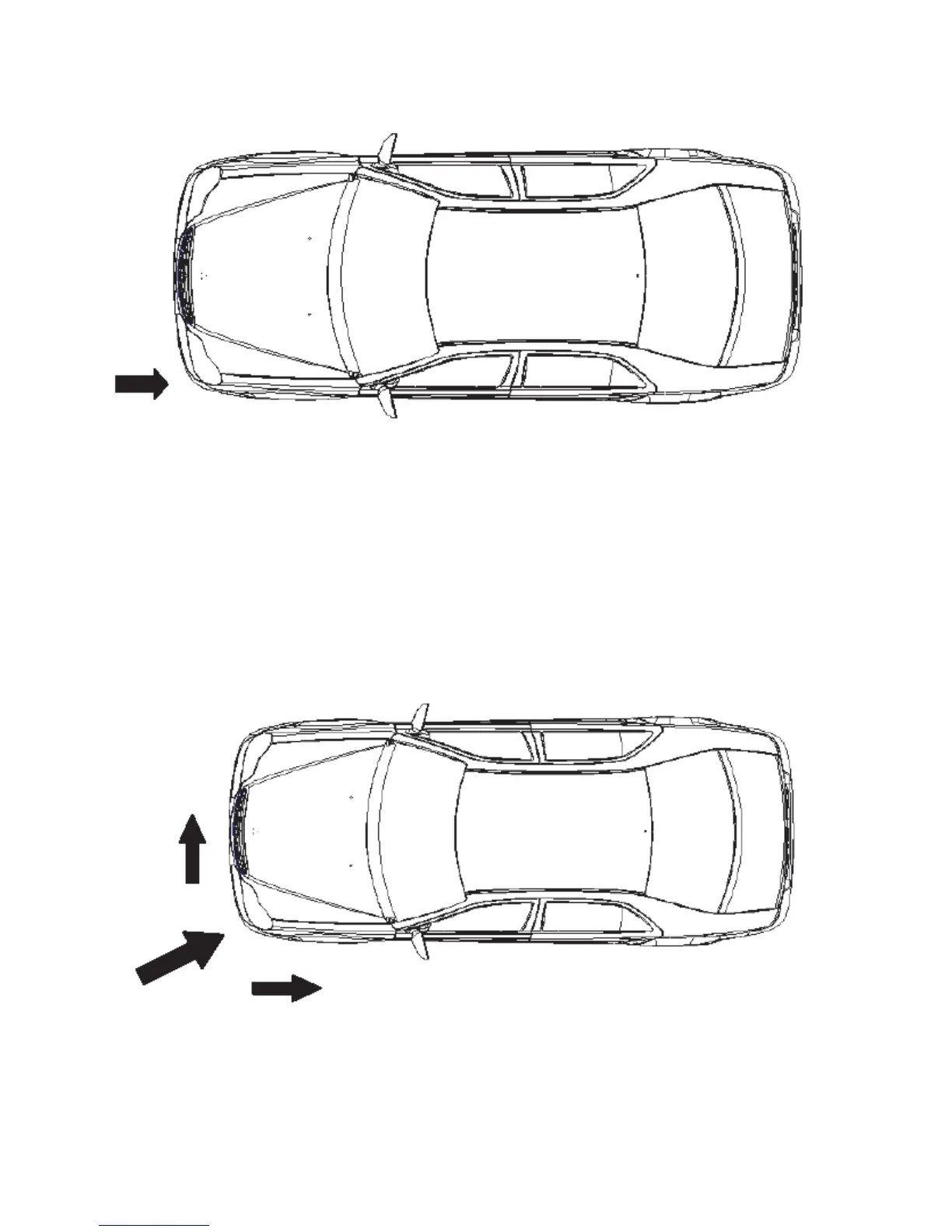

2. Crashed By Outside Force Ahead Or From The Left Side (Figure 5-14)
Figure 5-14 Crashed By Outside Force Ahead Or From The Left Side
Figure 5-14 shows the situation when the front is pressed or the left side is crashed by outside force. Under
this kind of situation, the outside force spreads from the left (or right) of the hood to the front suspension
mounting place, to get this part easily deformed.
3. Crashed By Outside Force Forming An Angle To The Center Line Of The Vehicle (Figure 5-
15)
FIGURE 5-15 Outside Force Forming An Angle to The Center Line of The Vehicle
Figure 5-15 shows the situation when it is crashed by outside force forming an angle to the centerline of the
vehicle. When the force is too great, the hood bottom and the front window side column will be affected.
Outside force
