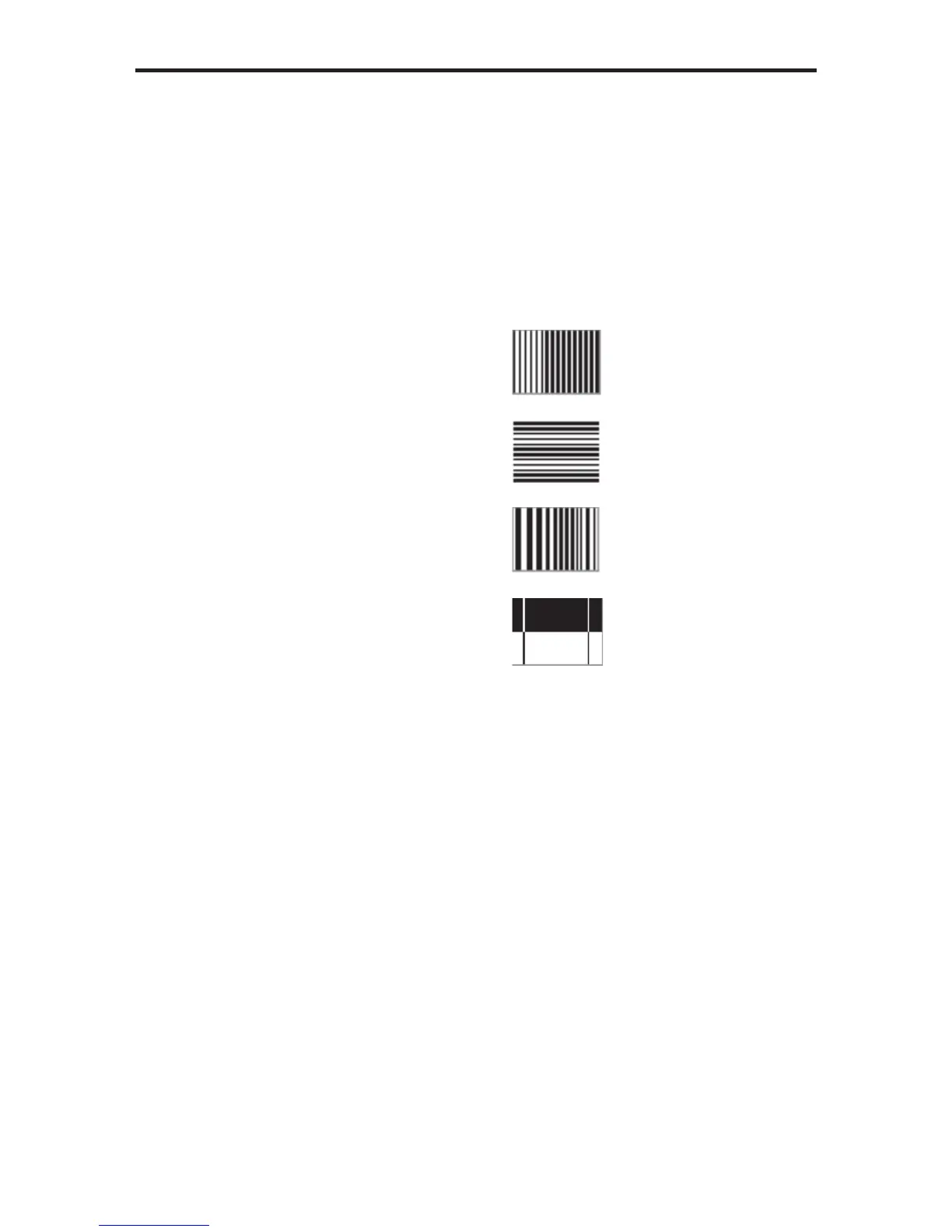

PATTERN SUMMARY
Black White Line
Pattern 23 -Pattern 26 (P23 - P26)
The vertical pattern serves as a test for the horizontal bandwidth and phase behavior
of a color monitor. This pattern can also be used to verify the video amplifi er and
color temperature.
The horizontal pattern can check the vertical bandwidth and phase behavior, in
addition to verifying the video amplifi er integrity and color temperature.
P23 V Line ONOFF
P24 H Line ONOFF
P25 MULTI-BURST
P26 Dual Needle
