PATTERN SUMMARY
Audio
Pattern 39 (P39)
This pattern displays the audio information of the connected source device, such as
the number of audio channels, sampling rate, and I
2
S (Intergrated Interchip Sound)
bus data.
P39 AUDIO
The table below provides a listing of the audio input and audio output combinations
when using the Audio Pattern (P39).
Analog 7.1 Ch Optical / Coax HDMI
Ext. 7.1 Ch Bypass LPCM 2CH @ 48 kHz Ext. 7.1 Ch
Ext. Optical 2 CH Bypass Bypass
Int. Sinewave 2CH, 6CH, 8CH LPCM 2 CH @ 48 kHz Ext. Optical
External 7.1 Channel Audio Input

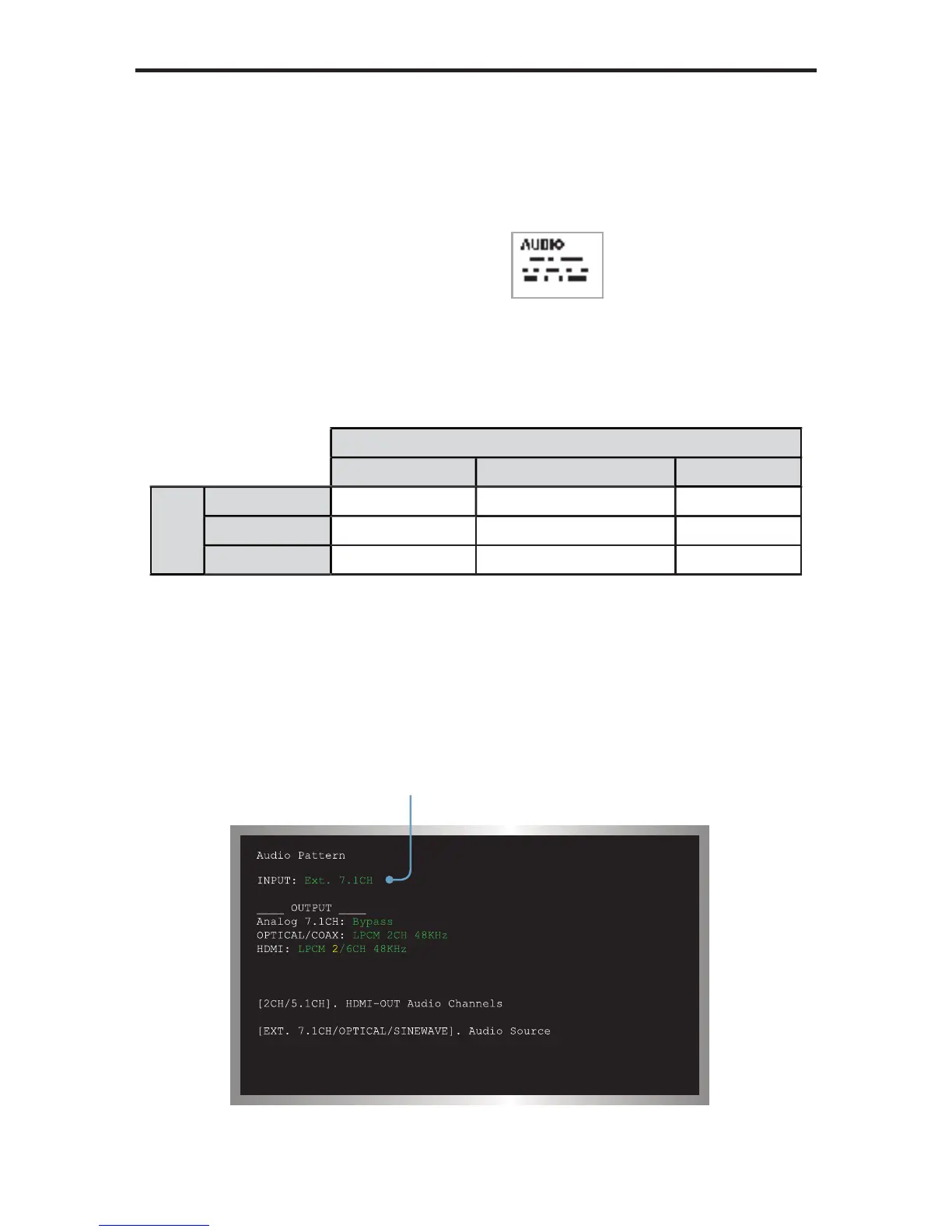

In the example below, the Audio Pattern is shown using the external 7.1 channel
audio input.
Current Audio input
selection.
Input
Output
To Next Page
