WALL MOUNTING INSTRUCTIONS
The GefenToolBox HD Pattern Signal Generator should be mounted vertically in

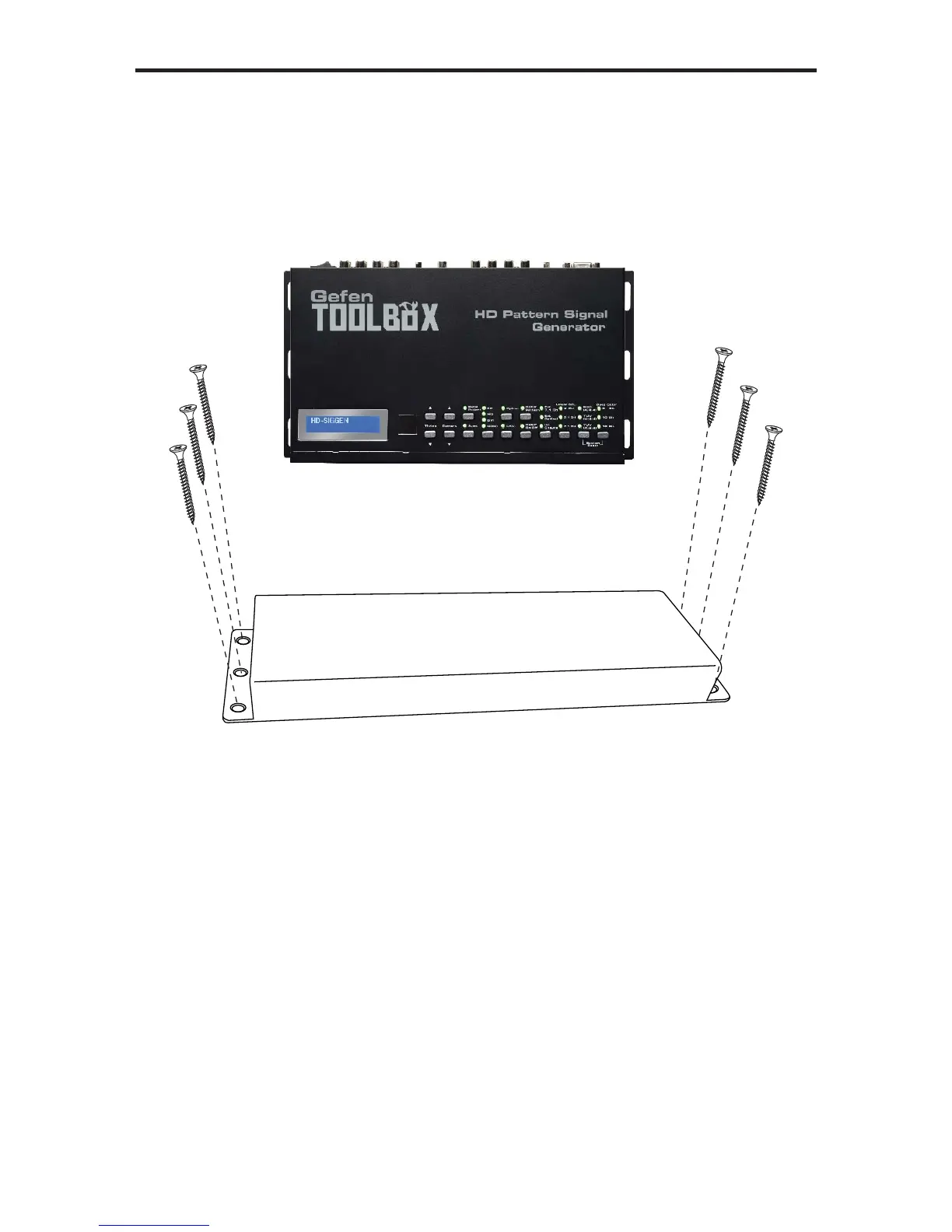

a wall or cabinet with wood/drywall screws as shown in the diagram above. There
should be an inch or two of clearance between the edges of the unit and any
walls or vertical surfaces to allow for enough clearance for insertion and removal
of cables on the back of the unit.
For installation on a drywall surface, use a #6 drywall screw. It is recommended
when installing on a drywall surface that studs be used to secure the Splitter
should undue stress be applied when connecting and disconnecting HDMI
cables.
