138 ADV200 • Functions description and parameters list

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

22.14.1 3900Dimfactornum UINT16 1 1 65535 ERW FVS

Numerator dimension factor

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

22.14.2 3902Dimfactorden UINT16 1 1 65535 ERW FVS

Denominator dimension factor

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

22.14.3 3904Dimfactortext UINT32 7172210 0 0 ERW FVS

The unit of measure displayed for parameters expressed in user units is user denable but requires the use of

the congurator. The text of the unit of measure can contain up to a maximum of 4 characters.

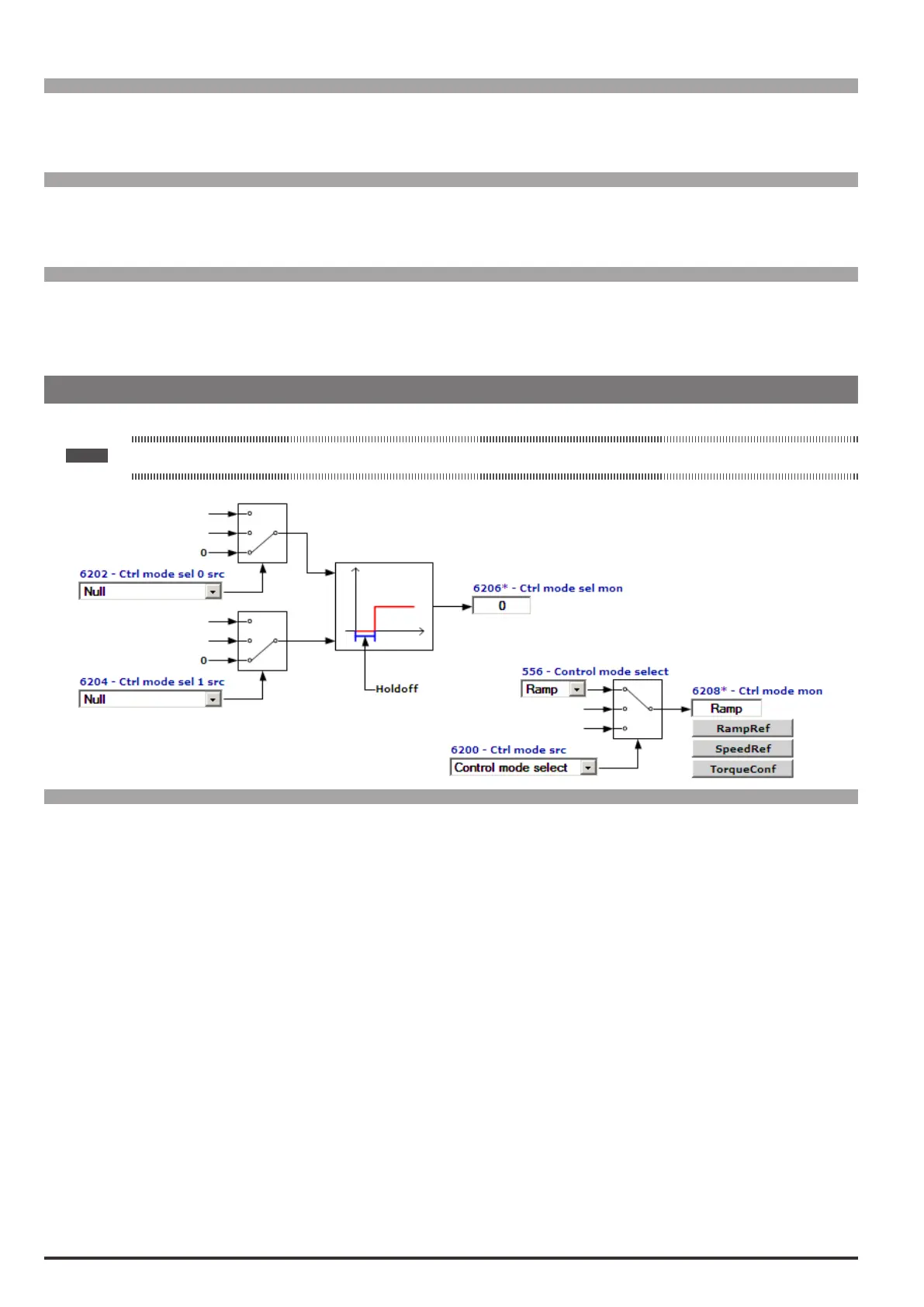

22.15-FUNCTIONS/CONTROLMODE

Note! Function available only when PAR 552 Controlmodeselect is set [1] FluxVectorCL or [2] FluxVectorOL.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

22.15.1 556 Controlmodeselect ENUM Ramp 0 2 ERWZ F_S

Selection of the drive control mode.

0 Torque

1 Speed

2 Ramp

In torquecontrol(0-Torque)the reference and load of the motor determine its speed and direction of rota-

tion. Symmetrical torque limits can be set, for each direction of rotation and for motor/generator operation. This

type of control is only available in the FluxvectorCL control mode. In this mode the Ramp function is not used

to generate the drive speed reference so it can be used in stand-alone mode.

In speedcontrol(1-Speed) the reference arrives straight after the ramp circuit, enabling an extremely rapid

response to signal variations. This is ideal for applications that require a highly dynamic response. This type of

control is available in the FluxvectorCL and FluxvectorOLcontrol modes. In this mode the Ramp function

is not used to generate the drive speed reference so it can be used in stand-alone mode.

In controlwithramp(2-Ramp) the speed reference is applied to the input of the “Ramp” block and is pro-

duced by the “Rampref” block. This allows setting of both the acceleration/deceleration times and the ramp

time (linear or S-shaped with customizable jerks). This type of control is available in all control.
