ADV200 • Functions description and parameters list 35

Activespeedref Multirefsel0src Multirefsel1src Multirefsel2src Multirefsel3src

Multi reference 14 0 1 1 1

Multi reference 15 1 1 1 1

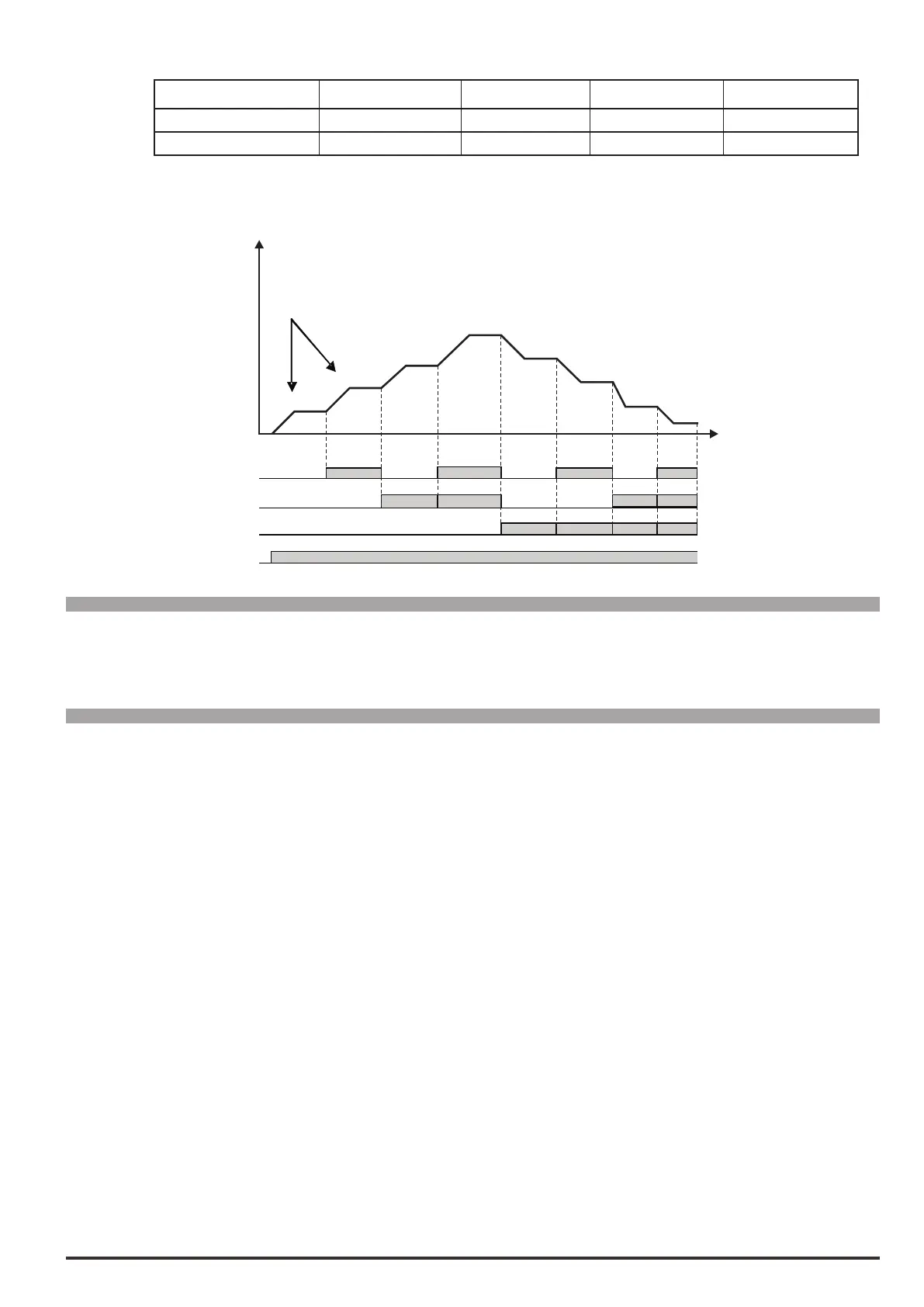

The following gure describes the selection of a control for 8 Multispeeds.

Multi ref sel 0src

Multi ref sel1 src

Multi ref sel 2src

Start

Speed

Multi ref 0

Multi ref 1

Multi ref2

Multi ref 3

Multi ref 4

Multi ref 5

Multi ref 6

Multi ref 7

Selected by:

Multi ref0 src (par. 832)

Multi ref1 src (par. 834)

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

7.23 850 Multirefselmon UINT16 0 0 15 R FVS

The multispeed that has been selected using the digital commands or by the digital inputs selected in the termi-

nal strip.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

7.24 852 Multirefoutmon FF INT16 16/32 0 0 0 R FVS

The selected speed reference on the Multispeed block output is displayed.
