66 ADV200 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.14 1526Aninp1signsrc LINK 16 6000 0 16384 ERW FVS
14.30 1576Aninp2signsrc LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal to be assigned to the relative digital input for selecting the direction
of rotation of the motor. The functions that can be associated with the digital outputs are listed in the “L_DIG-
SEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.15 1528Aninp1altselsrc LINK 16 6000 0 16384 ERW FVS
14.31 1578Aninp2altselsrc LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal to be assigned to the relative digital input for selecting the alterna-
tive analog reference. The functions that can be associated with the digital outputs are listed in the “L_DIG-
SEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.16 1532Analoginp1dest ILINK 0 0 0 ER FVS
14.32 1582Analoginp2dest ILINK 0 0 0 ER FVS
The function for which the relative analog input has been programmed and on which it acts is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.33 1600Analoginput1Xmon cnt INT16 16/32 0 -16384 16384 R FVS
14.44 1650Analoginput2Xmon cnt INT16 16/32 0 -16384 16384 R FVS
The value of the voltage output of the function block of the relative analog input is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.34 1602Analoginp1Xtype ENUM -10V..+10V 0 6 RW FVS
14.45 1652Analoginp2Xtype ENUM -10V..+10V 0 6 RW FVS

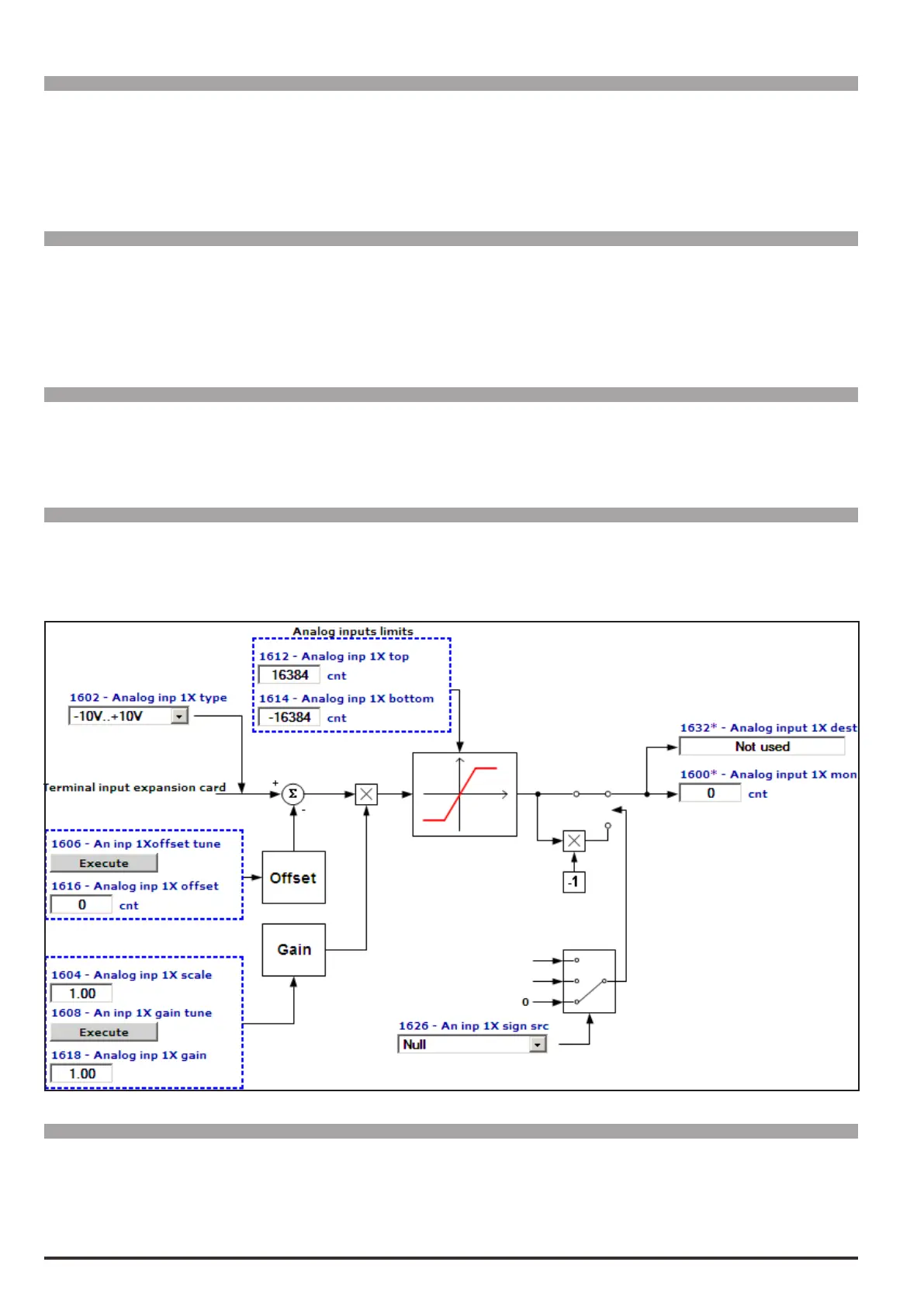

Selection of the type of expansion card input (voltage or current input). Depending on the input signal, move
the switches on the expansion card. Standard inputs are coded for voltage signals.
