ADV200 • Functions description and parameters list 67

0 -10V…+10V

1 0..10V

2 4..20mA

3 0..20mA

4 PT1000

5 NI1000

6 PT100

Select option 0 in order to connect a maximum voltage of ±12.5V (typically ±10V/5mA) to the analog input con-

cerned. If the signal is used as a reference, reverse the direction of rotation of the drive by inverting the voltage

polarity.

Select option 1 to connect a max voltage of 12.5V (typically 10V/5mA).

Select option 2 to connect a current signal of 4...20 mA to the analog input concerned. The signal must be positive.

Select option 3 to connect a current signal of 0...20 mA to the analog input concerned. The signal must be positive.

Select option 4 to connect a signal from a PT1000 probe to the analog input concerned.

Select option 5 to connect a signal from an NI1000 probe to the analog input concerned.

Select option 6 to connect a signal from a PT1000 probe to the analog input concerned.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.35 1604Analoginp1Xscale FLOAT 1.0 -20.0 20.0 RW FVS

14.46 1654Analoginp2Xscale FLOAT 1.0 -20.0 20.0 RW FVS

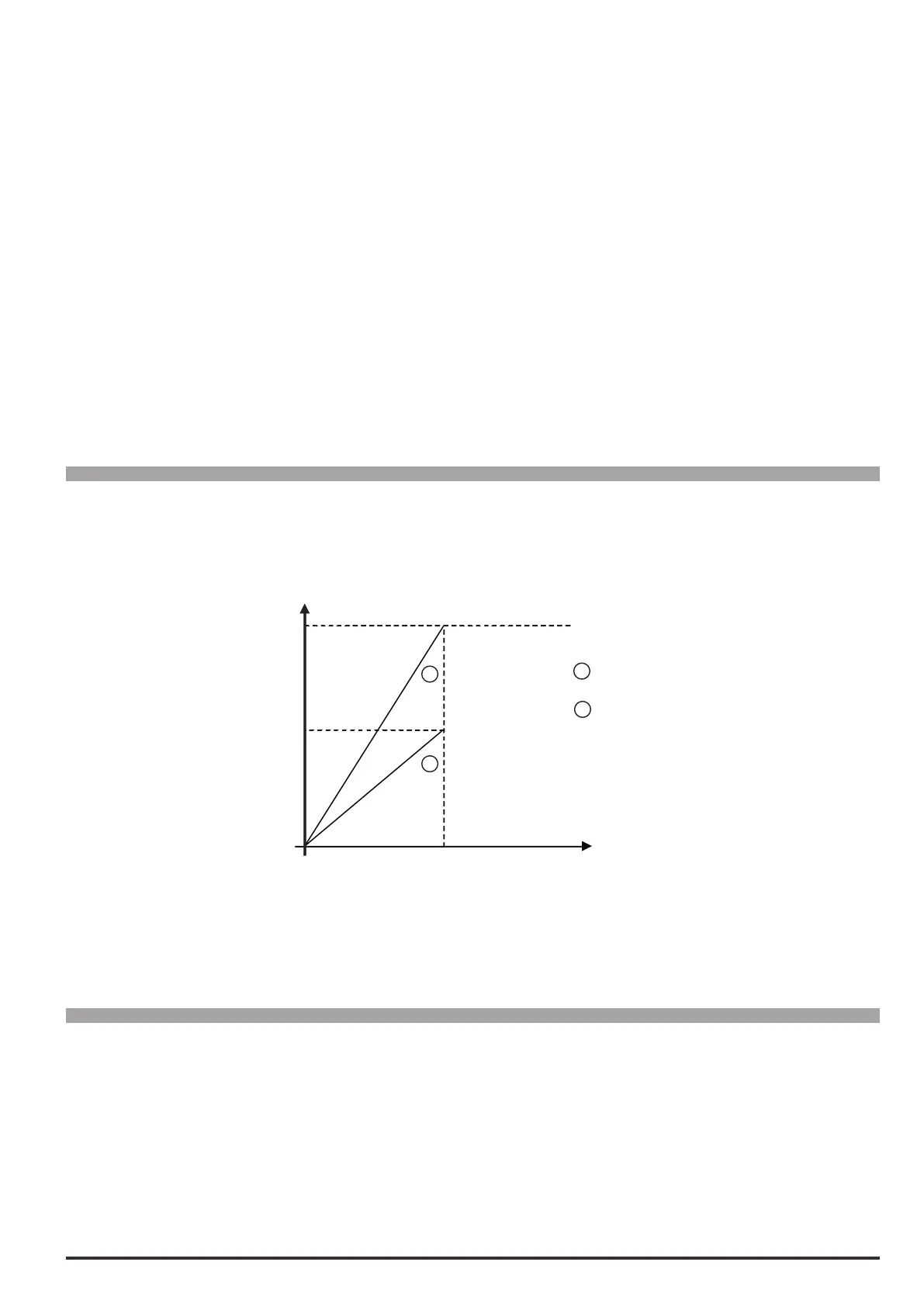

Setting of a multiplier factor to apply to the relative analog input of the expansion card.

Analog inp xX scale = 1,0

Analog inp xX scale = 2,0

10V

100%

50%

Speed

Example:

The speed reference of a drive is assigned with a max external voltage of 5V. With this value the drive must

reach the maximum speed allowed (set using Fullscalespeed).

As the AnaloginpXscaleparameter the scale factor of 2 is entered (10V : 5V)

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.36 1606Aninp1Xoffsettune BIT 0 0 1 RWZ FVS

14.47 1656Aninp2Xoffsettune BIT 0 0 1 RWZ FVS

Self-tuning command for the offset of the relative analog input of the expansion card. Automatic ne tuning

of the input. To perform self-tuning, set the input signal to its minimum value and execute the command. The

conditions containing an offset can be compensated. When this command is sent, AninpxXoffsettuneis

automatically selected so that the available input signal corresponds to the zero value of the variable.

Automatic tuning can only be performed if the following condition is present:

- Input voltage less than 1V or input current less than 2 mA
