68 ADV200 • Functions description and parameters list
Note ! The value that is obtained automatically can be changed manually, if necessary, using AninpoffsetxX.
If the voltage setting on the analog input is higher than 1V, the Value too low alarm is generated.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.37 1608Aninp1Xgaintune BIT 0 0 1 RWZ FVS
14.48 1658Aninp2Xgaintune BIT 0 0 1 RWZ FVS
Self-tuning command for the relative analog input gain. Automatic ne tuning of the input. When this command
is sent, Analoginp1gainx is automatically selected so that the available input signal corresponds to the
maximum value of the variable.
Two conditions are necessary in order to perform automatic tuning:
- Input voltage greater than 1V or input current greater than 2 mA
- Positive polarity. The value that is found is automatically accepted for the other direction of rotation.
Note ! If necessary, the value obtained automatically can be changed manually via AnaloginpXxgain.
To perform self-tuning, set the input signal to its maximum value and execute the command. A multiplier factor
is calculated to apply to the input signal value (not considering the Analoginpscaleparameter) to reach the
full scale value.
If the voltage setting on the analog input is less than 1V, the Value too low alarm is generated.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.38 1612Analoginp1Xtop cnt INT16 16384 -32768 + 32767 ERW FVS
14.49 1662Analoginp2Xtop cnt INT16 16384 -32768 + 32767 ERW FVS
Setting of the upper speed reference limit as a function of the voltage (or current) of the relative analog refer-
ence of the expansion card.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.39 1614Analoginp1Xbottom cnt INT16 -16384 -32768 + 32767 ERW FVS
14.50 1664Analoginp2Xbottom cnt INT16 -16384 -32768 + 32767 ERW FVS
Setting of the lower speed reference limit as a function of the voltage (or current) of the relative analog refer-
ence of the expansion card.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

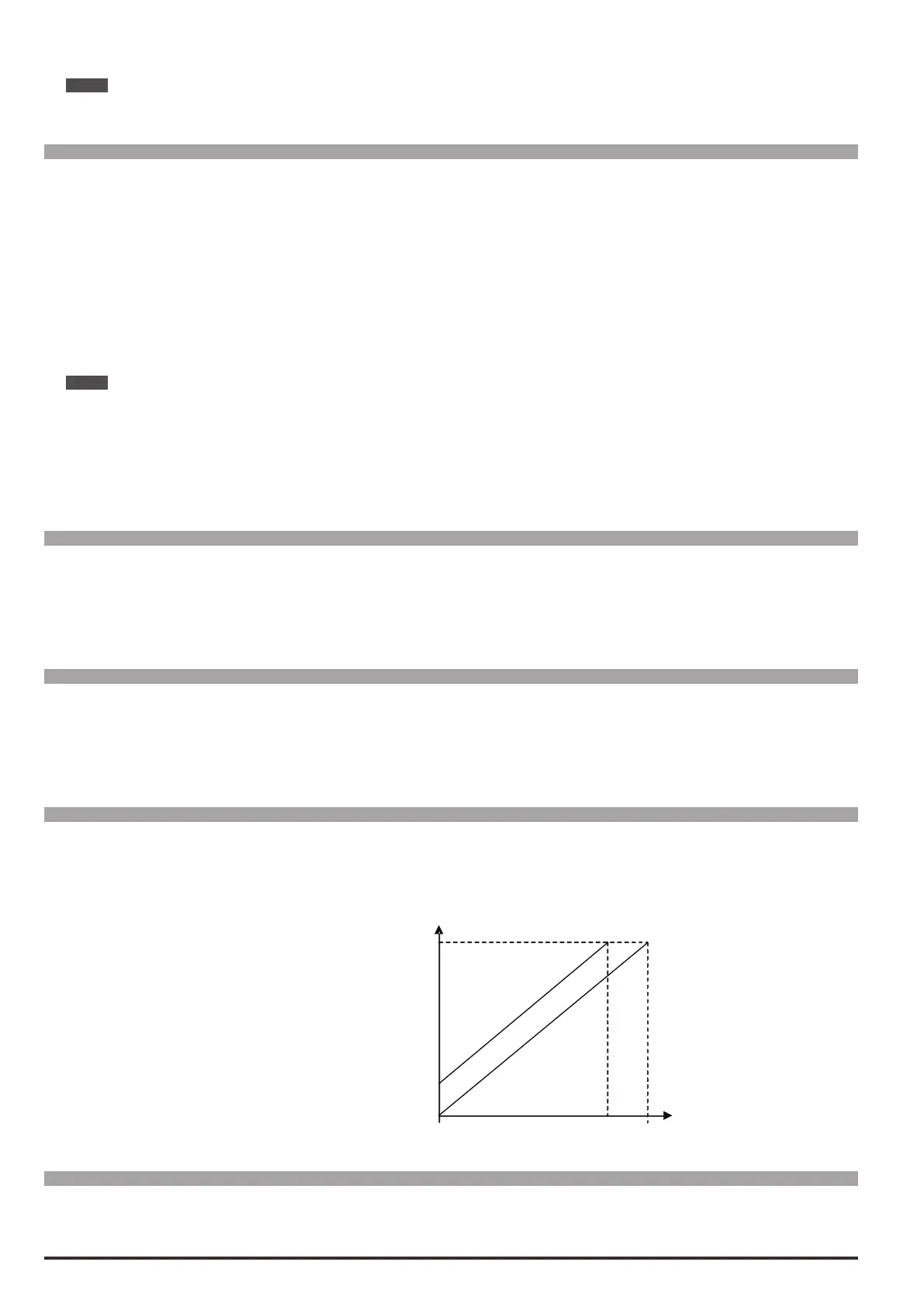

14.40 1616Analoginp1Xoffset cnt INT16 0 -32768 + 32767 ERW FVS
14.51 1666Analoginp2Xoffset cnt INT16 0 -32768 + 32767 ERW FVS
Setting of an offset value to algebrically add to the relative analog input of the expansion card.
100%
Analog inp xX offset
{
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.41 1618Analoginp1Xgain FLOAT 1.0 -20.0 20.0 ERW FVS
14.52 1668Analoginp2Xgain FLOAT 1.0 -20.0 20.0 ERW FVS
