2. Model Description

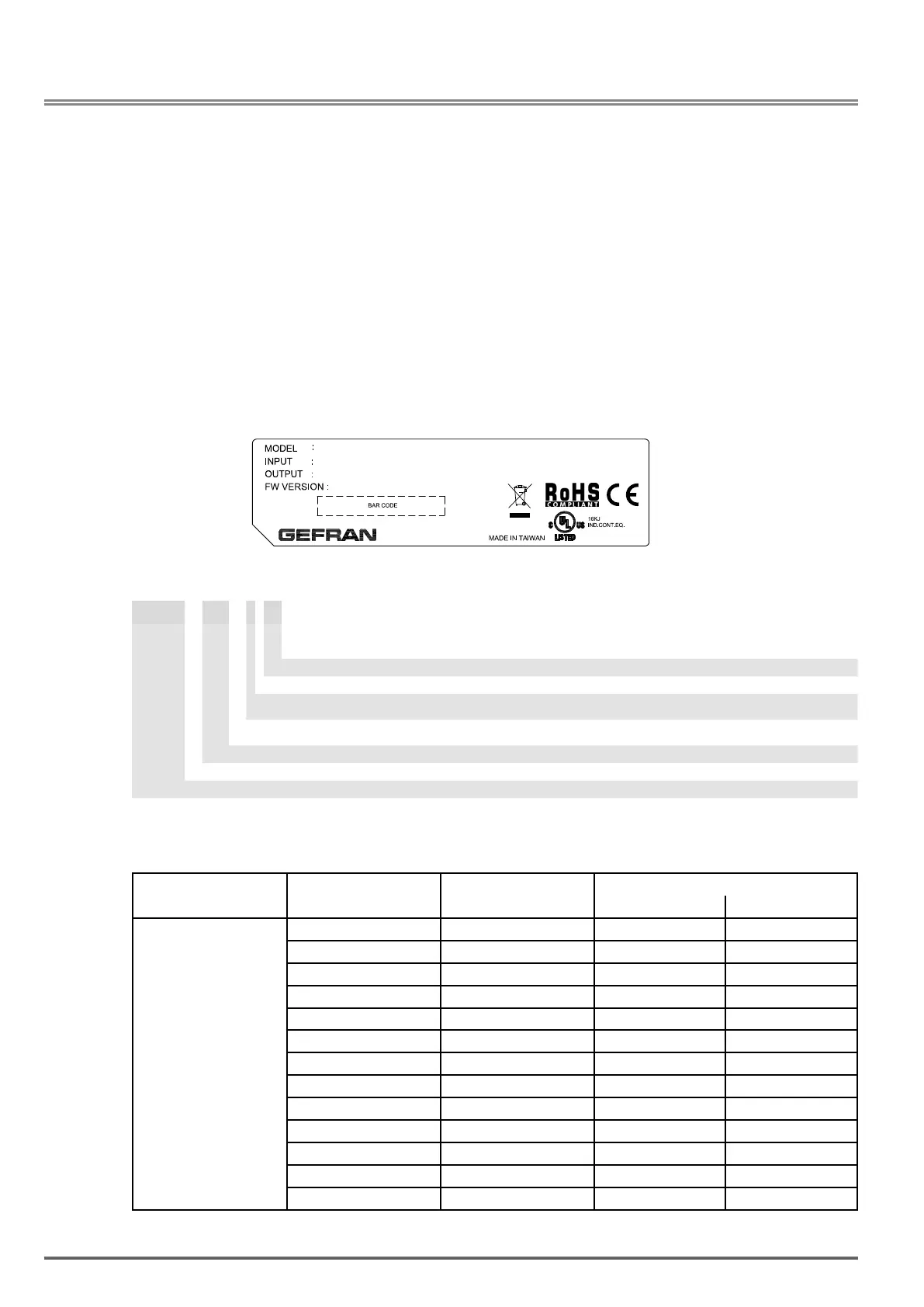

2.1. Nameplate Data
It is essential to verify the VDI100 inverter nameplate and make sure that the VDI100 inverter has the correct
rating so it can be used in your application with the proper sized AC motor.
Unpack the VDI100 inverter and check the following:
(1) The VDI100 inverter and start-up and installation manual are contained in the package.
(2) The VDI100 inverter has not been damaged during transportation there should be no dents or parts missing.
(3) The VDI100 inverter is the type you ordered. You can check the type and specications on the main nameplate.
(4) Check that the input voltage range meets the input power requirements.
(5) Ensure that the motor kW (HP) matches the motor rating of the inverter.
HD: Heavy Duty (Constant Torque); ND: Normal Duty (Variable Torque) (1HP = 0.746 kW)
Drive model ->
VDI100-2055-KBX-4
PW RATING : 5.5 kW/7.5kW-7.5Hp/10Hp
AC 3PH 380~480V (+10%,-15%) 50/60Hz 15.5A/18.2A
AC 3PH 0~480V 0-599Hz 14.8A/17.5A
V 1.06/V1.0
S6N127
Gefran S.p.A Via G.Carducci,24
I-21040-Gerenzano (Va)
<- Power rating
Input and output data ->
<- Approvals
Serial number ->
Model Identication
VDI100-X XXX -KXX -X -Y
EMI Filter: F = included; [Empty] = not included
Rated voltage: 4 = 400 Vac , 3ph
Software: X = standard
Braking unit:
B = included; X = not included
Keypad: K = Integrated (LED keypad with 5-digits 7-segment
display)
Drive power, in kW
Mechanical drive sizes
VDI100 drive series
2.2. Inverter Models – Motor Power Rating (HD – Heavy Duty)
Voltage VDI100 Models VDI100 Models Motore applicato
with filter without filter (HP) (kW)
3ph, 380~480V
+10%/-15%
50/60Hz
VDI100-1007-KBX-4-F VDI100-1007-KBX-4 1 0.75
VDI100-1015-KBX-4-F VDI100-1015-KBX-4 2 1.5
VDI100-1022-KBX-4-F VDI100-1022-KBX-4 3 2.2
VDI100-2037-KBX-4-F VDI100-2037-KBX-4 5 3.7
VDI100-2055-KBX-4-F VDI100-2055-KBX-4 7.5 5.5
VDI100-3075-KBX-4-F VDI100-3075-KBX-4 10 7.5
VDI100-3110-KBX-4-F VDI100-3110-KBX-4 15 11
VDI100-4150-KBX-4-F VDI100-3150-KBX-4 20 15
VDI100-4185-KBX-4-F VDI100-4185-KBX-4 25 18.5
VDI100-4220-KBX-4-F VDI100-4220-KBX-4 30 22
VDI100-5300-KBX-4-F VDI100-5300-KBX-4 40 30
VDI100-5370-KXX-4-F VDI100-5370-KXX-4 50 37
VDI100-5450-KXX-4-F VDI100-5450-KXX-4 60 45
Short Circuit Rating: 5kA
