gefran VDI100 Start-Up And Installation Manual

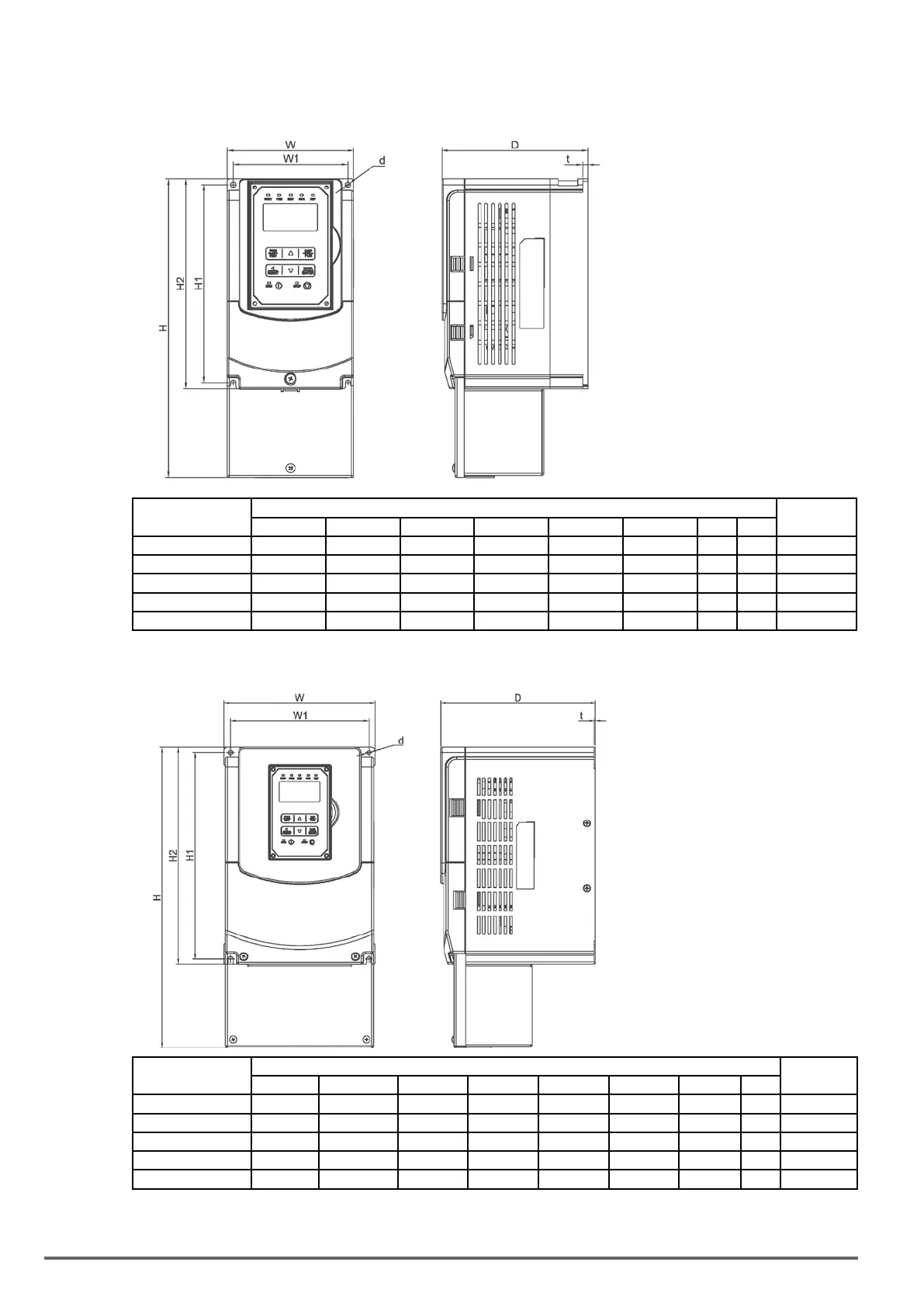

3.10. Dimensions for Models with Add-on lter
Sizes 1 and 2
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 H2 t d
VDI100-1007-KBX-4-F 130 (5.12) 306 (12.05) 150 (5.91) 118 (4.65) 203 (7.99) 215 (8.46) 5 M5 3.5 (7.71)
VDI100-1015-KBX-4-F 130 (5.12) 306 (12.05) 150 (5.91) 118 (4.65) 203 (7.99) 215 (8.46) 5 M5 3.5 (7.71)
VDI100-1022-KBX-4-F 130 (5.12) 306 (12.05) 150 (5.91) 118 (4.65) 203 (7.99) 215 (8.46) 5 M5 3.5 (7.71)
VDI100-2037-KBX-4-F 140 (5.51) 400 (15.75) 177 (6.97) 122 (4.80) 267 (10.51) 279 (10.98) 7 M6 5.5 (12.13)
VDI100-2055-KBX-4-F 140 (5.51) 400 (15.75) 177 (6.97) 122 (4.80) 267 (10.51) 279 (10.98) 7 M6 5.5 (12.13)
Sizes 3 and 4
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 H2 t d
VDI100-3075-KBX-4-F 210 (8.27) 416.5 (16.40) 215 (8.46) 192 (7.56) 286 (11.26) 300 (11.81) 1.6 (0.06) M6 8.0 (17.63)
VDI100-3110-KBX-4-F 210 (8.27) 416.5 (16.40) 215 (8.46) 192 (7.56) 286 (11.26) 300 (11.81) 1.6 (0.06) M6 8.0 (17.63)
VDI100-4150-KBX-4-F 265 (10.43) 500 (19.69) 225 (8.86) 245 (9.65) 340 (13.39) 360 (14.17) 1.6 (0.06) M8 12.5 (27.56)
VDI100-4185-KBX-4-F 265 (10.43) 500 (19.69) 225 (8.86) 245 (9.65) 340 (13.39) 360 (14.17) 1.6 (0.06) M8 12.5 (27.56)
VDI100-4220-KBX-4-F 265 (10.43) 500 (19.69) 225 (8.86) 245 (9.65) 340 (13.39) 360 (14.17) 1.6 (0.06) M8 12.5 (27.56)
24 VDI100 • Start-up and Installation Manual
