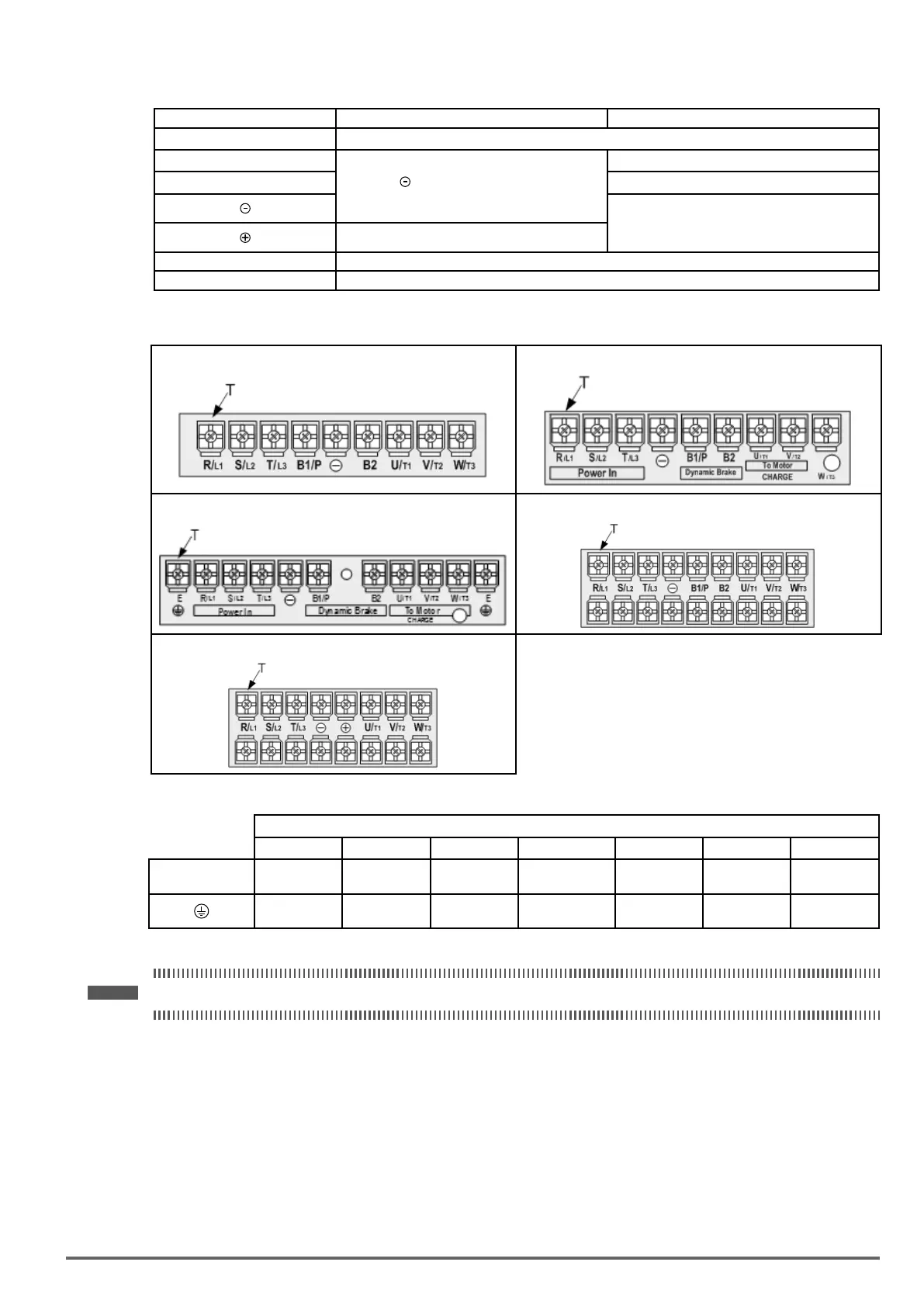

3.6. Power Terminals
Terminal 0.75 ~ 30kW 37 ~45kW
R/L1 - S/L2 - T/L3 Input Power Supply
B1/P
• B1/P-
: DC power supply
• B1/P-B2: external braking resistor
-
B2 -
DC power supply or connect braking module
-
U/T1 - V/T2 - W/T3 Inverter output
E Ground terminal
1: 0.75~2.2kW 2: 3.7 ~ 5.5kW
3: 7,5 - 11kW 4: 15 – 30kW
5:37-45 kW
Terminal screw size
1: 0.75~2.2kW 2: 3.7 ~ 5.5kW 3: 7,5 - 11kW 4: 15kW (size 3) 4: 15 – 22kW 4: 30kW 5:37-45 kW
T M4 M4 M6 M6 M6 M6 M8
M4 M4 M6 M5 M6 M8 M8
Note ! For wire gauges and screw torques, please refer to the table in section 3.6
VDI100 • Start-up and Installation Manual 17
