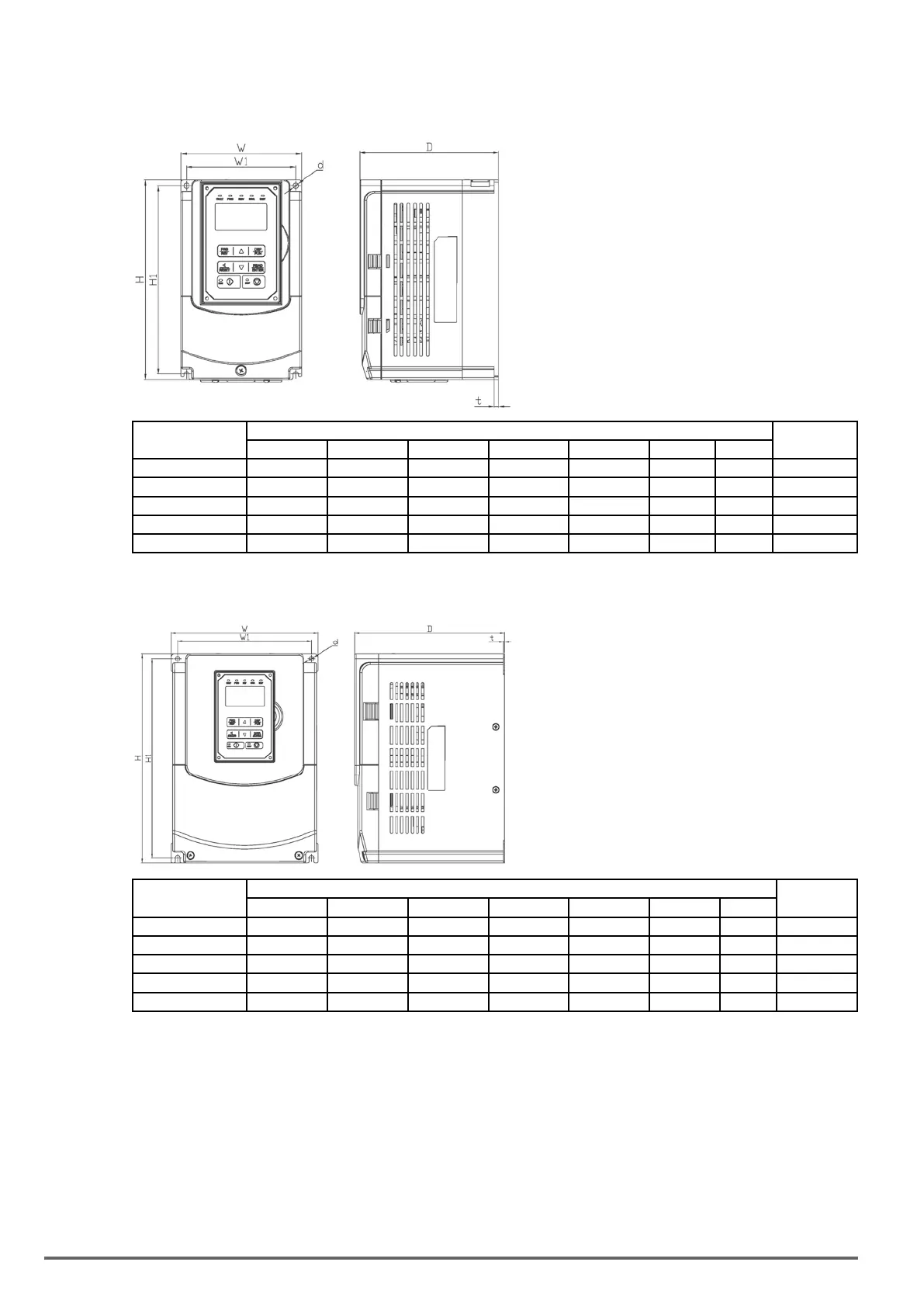

3.9. Inverter Dimensions
Sizes 1 and 2 (IP20/NEMA1)
Inverter Model
Dimensions in mm (inch)
Net Weight kg
(lbs)
W H D W1 H1 t d
VDI100-1007-KBX-4 130 (5.12) 215 (8.46) 150 (5.91) 118 (4.65) 203 (7.99) 5 (0.20) M5 2.2 (4.9)
VDI100-1015-KBX-4 130 (5.12) 215 (8.46) 150 (5.91) 118 (4.65) 203 (7.99) 5 (0.20) M5 2.2 (4.9)
VDI100-1022-KBX-4 130 (5.12) 215 (8.46) 150 (5.91) 118 (4.65) 203 (7.99) 5 (0.20) M5 2.2 (4.9)
VDI100-2037-KBX-4 140 (5.51) 279 (10.98) 177 (6.97) 122 (4.80) 267 (10.51) 7 (0.28) M6 3.8 (8.4)
VDI100-2055-KBX-4 140 (5.51) 279 (10.98) 177 (6.97) 122 (4.80) 267 (10.51) 7 (0.28) M6 3.8 (8.4)
Sizes 3 and 4 (IP20/NEMA1)
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 t d
VDI100-3075-KBX-4 210 (8.27) 300 (11.81) 215 (8.46) 192 (7.56) 286 (11.26) 1.6 (0.06) M6 6.2 (13.67)
VDI100-3110-KBX-4 210 (8.27) 300 (11.81) 215 (8.46) 192 (7.56) 286 (11.26) 1.6 (0.06) M6 6.2 (13.67)
VDI100-3150-KBX-4 210 (8.27) 300 (11.81) 215 (8.46) 192 (7.56) 286 (11.26) 1.6 (0.06) M6 6.2 (13.67)
VDI100-4185-KBX-4 265 (10.43) 360 (14.17) 225 (8.86) 245 (9.65) 340 (13.39) 1.6 (0.06) M8 10 (22.05)
VDI100-4220-KBX-4 265 (10.43) 360 (14.17) 225 (8.86) 245 (9.65) 340 (13.39) 1.6 (0.06) M8 10 (22.05)
22 VDI100 • Start-up and Installation Manual
