gefran VDI100 - Page 23

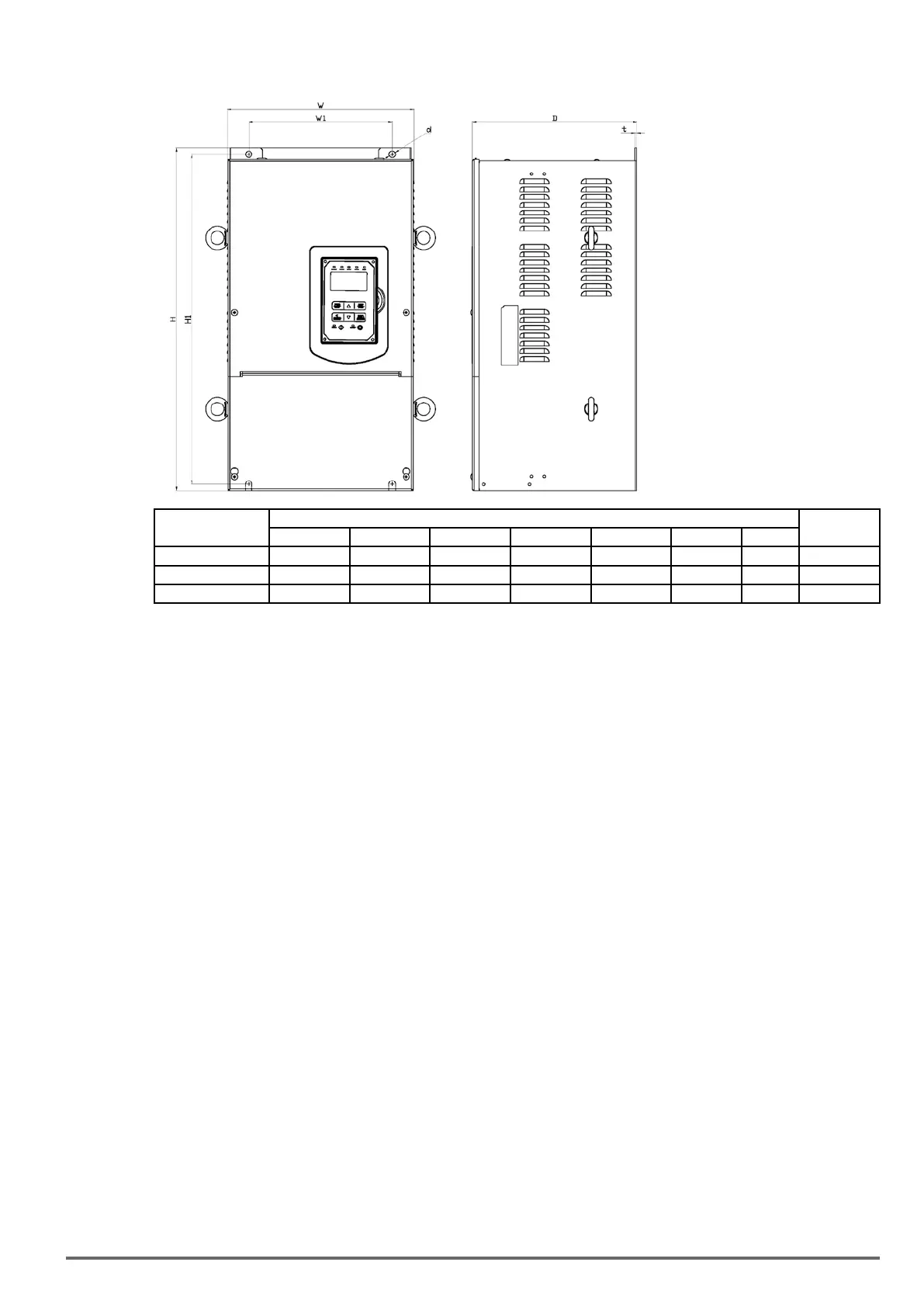

Size 5 (IP20/NEMA1)
Inverter Model
Dimensions in mm (inch)
Net Weight
kg (lbs)
W H D W1 H1 t d
VDI100-5300-KBX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 24 (52.9)
VDI100-5370-KXX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 24 (52.9)
VDI100-5450-KXX-4 286.5 (11.29) 525 (20.67) 252 (9.92) 220 (8.66) 505 (19.88) 3.3 (0.13) M8 24 (52.9)
VDI100 • Start-up and Installation Manual 23
