Disengagement
Never leave the operator’s compartment to dis-
engage the lift arm support device with the
engine running.
To return the lift arm support device to its
storage position:
1. Raise the lift arm completely.
2. Stop the engine, remove the key and
take it with you.
Before testing the loader, always clear people
from the area.
3. Before leaving the operator’s compartment, be sure that the lift arm is being
held in the raised position by the solenoid valve.
4. To store the support device, raise it up until it contacts the lift arm. Slide the
lock pin through the support device and catch under the lift arm. Once the pin
is secure, flip the lock pin loop so that it locks the pin in.
Accessory Outlet
The optional 12-volt accessory outlet is located at the bottom of the left instru-
ment panel.
WARNING

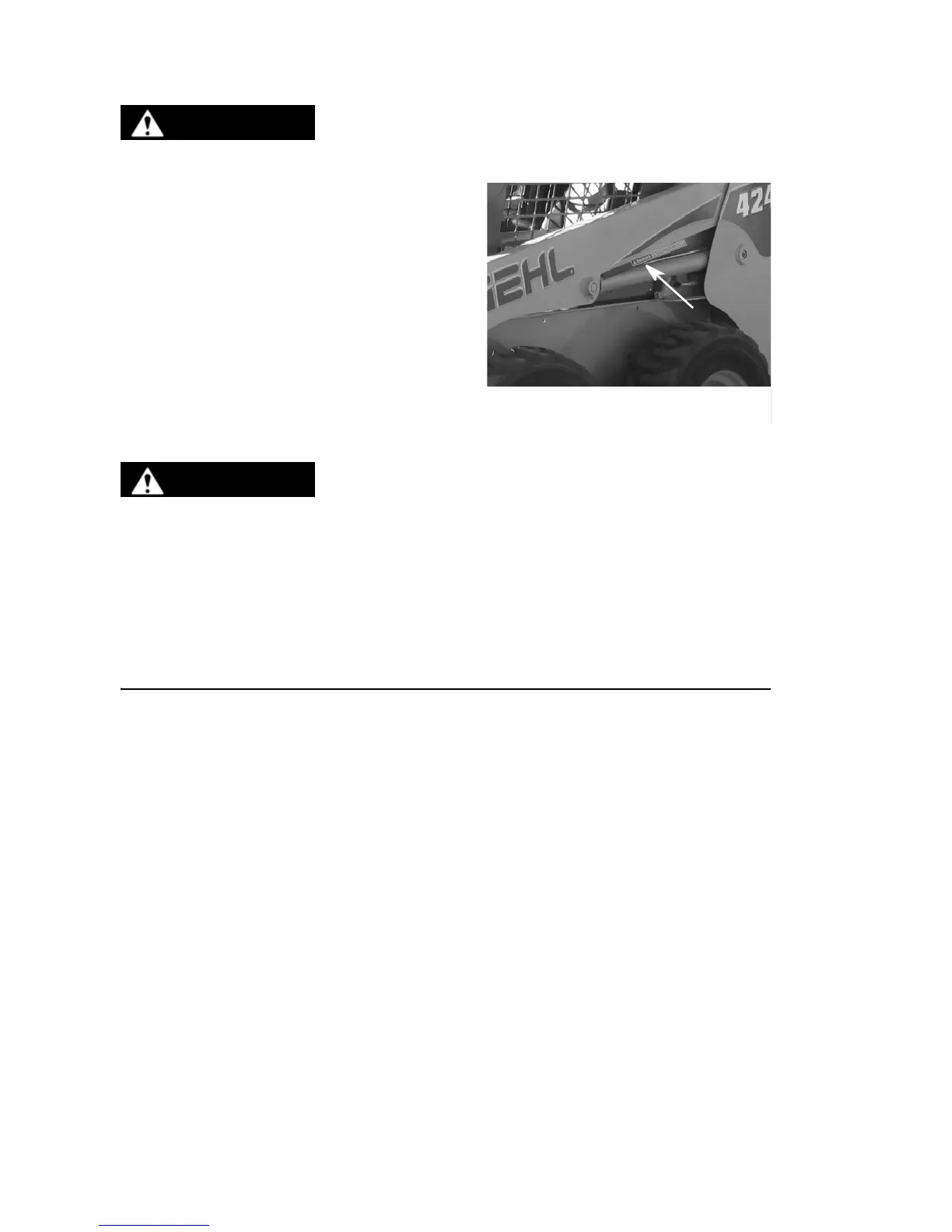

Figure 5 Lock Pin
in storage Position
