Gehl SL3640E - Control and Indicator Symbols

917334/BP0310 3

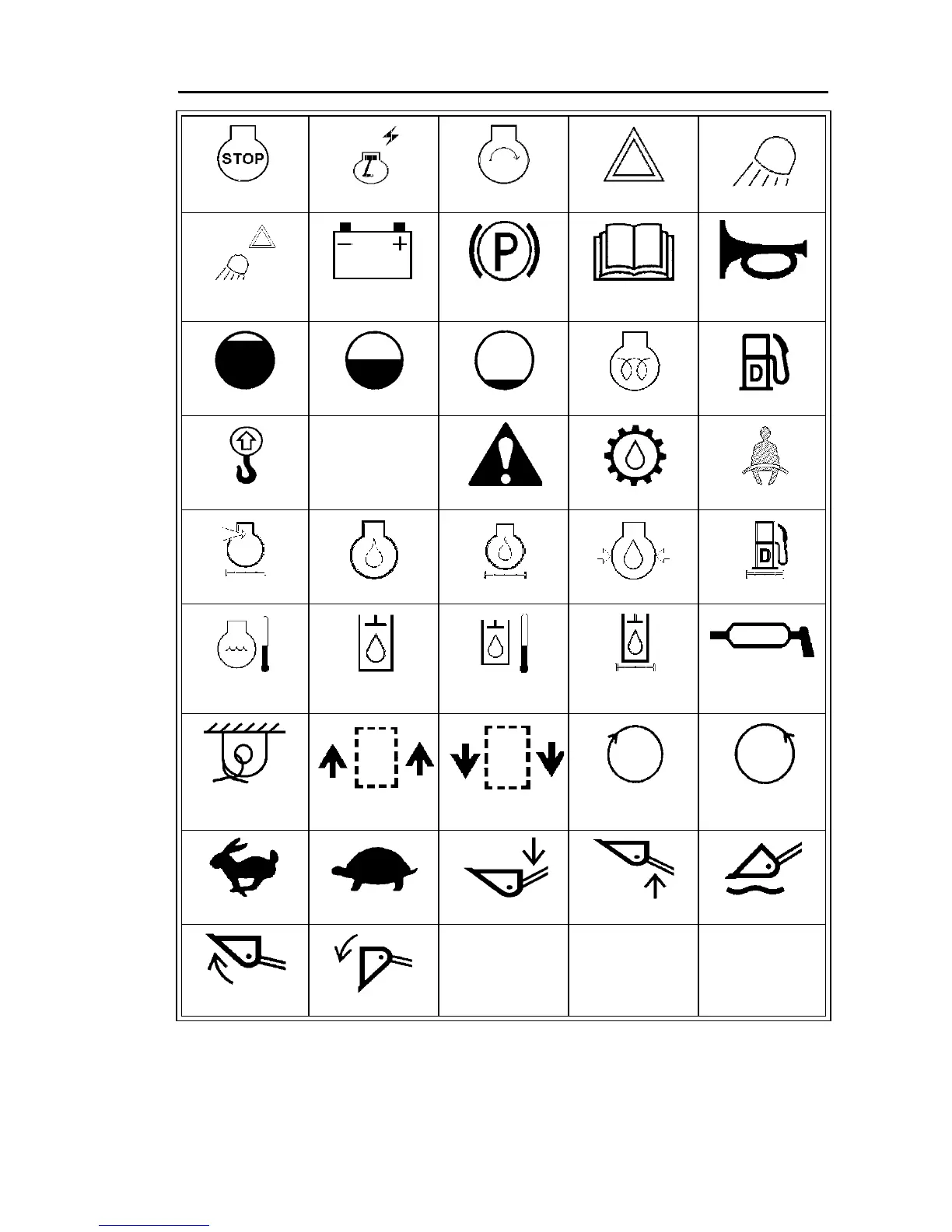

Control/Indicator Symbols
Power Off Power On Engine Start
Hazard Flasher
Worklight
Worklight w/Flasher
Battery Charge
Parking Brake Read Operator’s
Manual
Horn
Volume – Full Volume – Half Full Volume – Empty
Pre-Heat Diesel Fuel
Lift Point
N
Neutral
Safety Alert
Chaincase Oil
Seatbelt – Lap Only
Engine Air Filter
Engine Oil Engine Oil Filter Engine Oil Pressure Fuel Filter
Engine Coolant
Temperature
Hydraulic System Hydraulic Oil
Temperature
Hydraulic Oil Filter Grease Lubrication
Point
Tie-Down
Machine Travel –
Forward
Machine Travel –
Reverse
Clockwise Rotation Counterclockwise
Rotation
Fast Slow Bucket – Lower
Bucket – Raise
Bucket – Float
Bucket – Rollback Bucket – Dump
