28 917334/BP0310
Auxiliary Hydraulic Controls
Auxiliary hydraulics are used with an
attachment that has a mechanism
requiring hydraulic power of its own.
Important: Always be sure the auxiliary
hydraulic control is in neutral before
starting the loader or removing the auxil-
iary hydraulic couplers.
Couplers are located on the left lift arm.
“A” port is pressure, “B” port is return
when the auxiliary control is in the detent
position (refer to page 34).
T-Bar Controlled Loaders
A foot pedal is used to control the direc-
tion of oil flow.

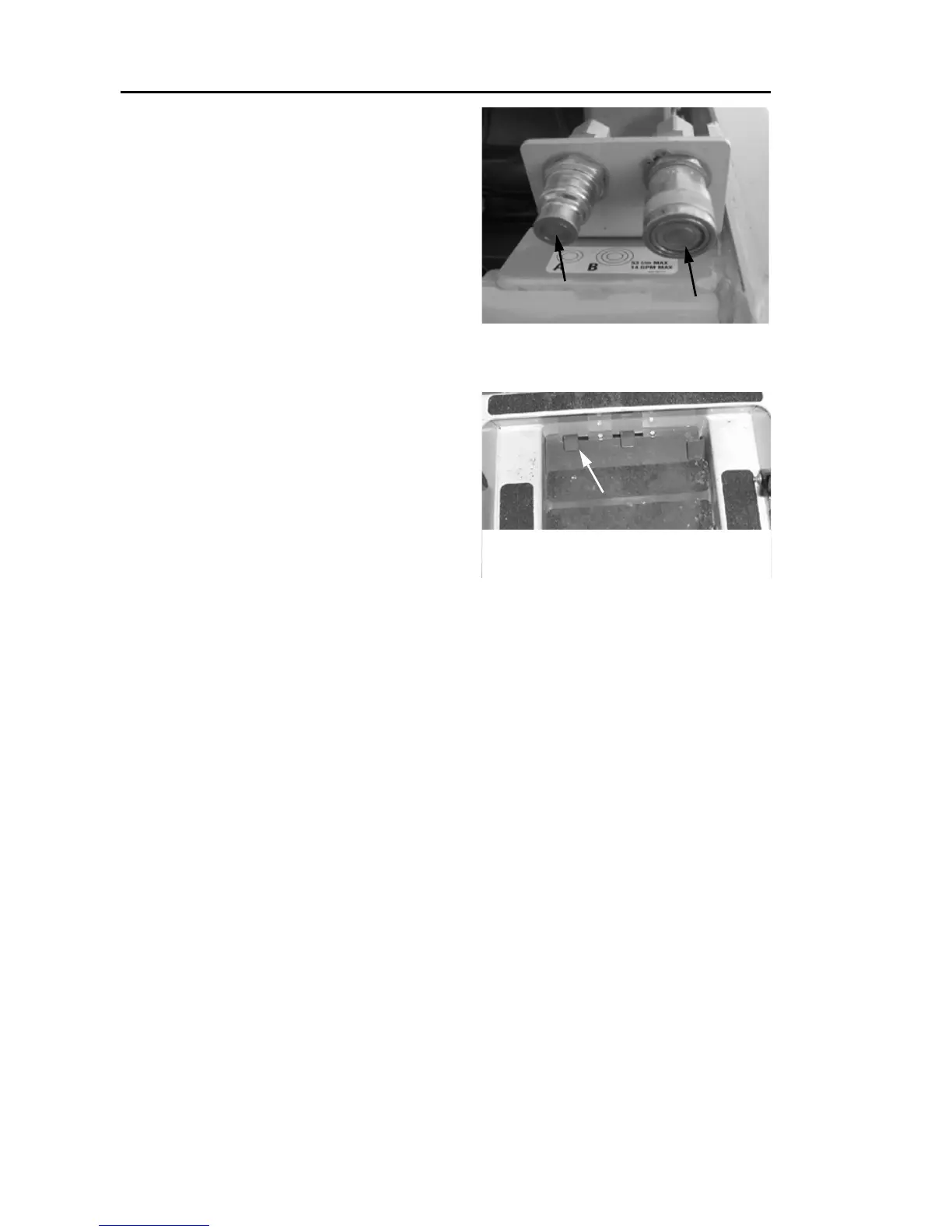

Figure 11 Auxiliary Couplers
A
B
Figure 12 T-Bar Auxiliary
Control
