917334/BP0310 45
Engine Air Cleaner
Important: Failure to follow
proper filter servicing instructions
could result in catastrophic engine
damage.
The air cleaner consists of an outer
(primary) filter element and an
inner (secondary) filter element. An
air filter restriction indicator for
monitoring the condition of the ele-
ments is located on the right side of
the front of the air cleaner. If the air
filter becomes restricted, this indi-
cator will turn red to warn the
operator that the element(s) require
service. Push the reset button
located on the end of the indicator
after fitting a clean element. For
replacement elements, refer to the
“Replacement Parts” topic (page 43).

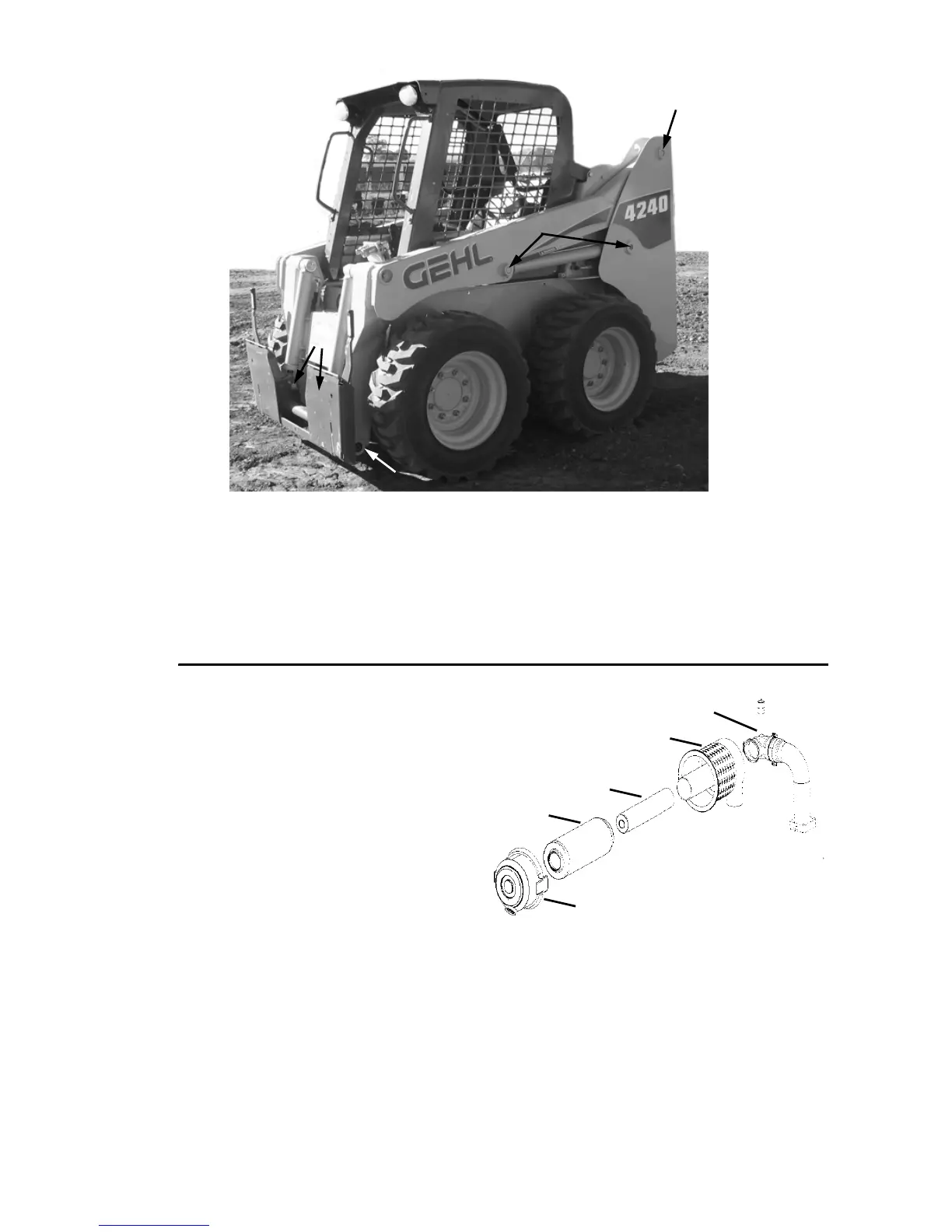

Figure 26 Grease Every 10 Hours (or daily)
1. Lift arm pivots (2)
2. Lift cylinder pivots (4)
3. Tilt cylinder pivots (2)
4. Attachment Bracket pivots (2)
1
2
4
3
Figure 27 Dual-Element Air
Cleaner
1. Restriction Indicator
2. Element Housing
3. Inner Filter Element
4. Outer Filter Element
5. Element Cover
1
2
3
4
5
