GEISMAR MPR-M - Chapter 4 - Equipments; Identification of Main Machine Components

Chap. 4 — page 13
L.GEISMAR Company – Prohibited Reproduction©
HYDRAULIC RAIL THREADER H90461 / NO 10055
TYPE MPR – M
Chapter 4 – Equipments
4 – 1 Location of the main units

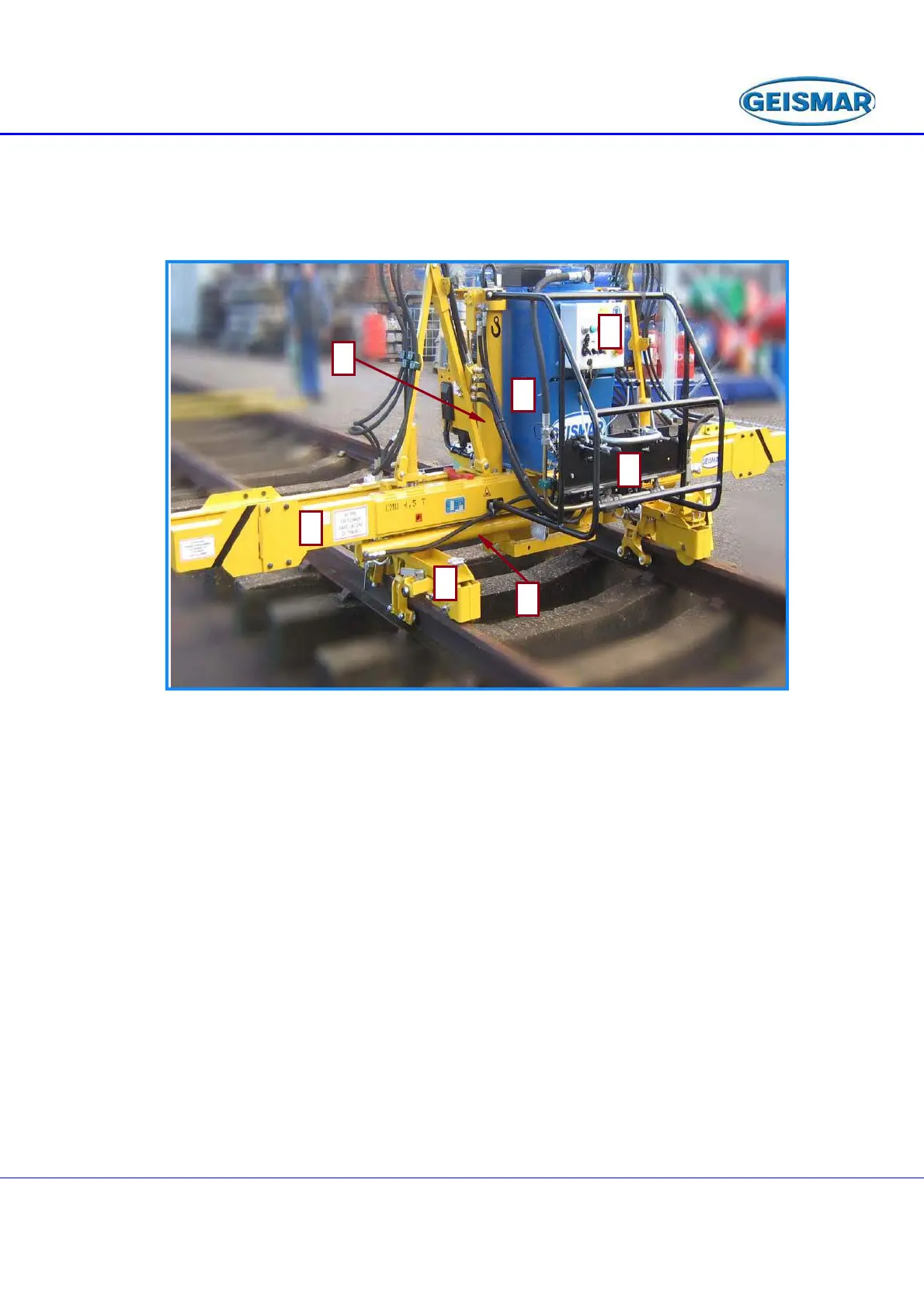

Fig : 1
The Rail Threader (fig. 1) is composed of:
– A hydraulic power unit (1)
– A set of hydraulic controls (2)
– Two motorised carriages equipped with hydraulically-controlled rail clamps, each
equipped with two drive units for travel, one of which is motorised and detachable (3)
– A double beam forming the main frame (4)
– Two lifting cylinders with rods connected by the support frame (5)
– Two shifting cylinders (6)
– An electrical unit (7)
7
2
3
1
4
6
5
