Chap. 6 — page 39
L.GEISMAR Company – Prohibited Reproduction©
HYDRAULIC RAIL THREADER H90461 / NO 10055
TYPE MPR – M

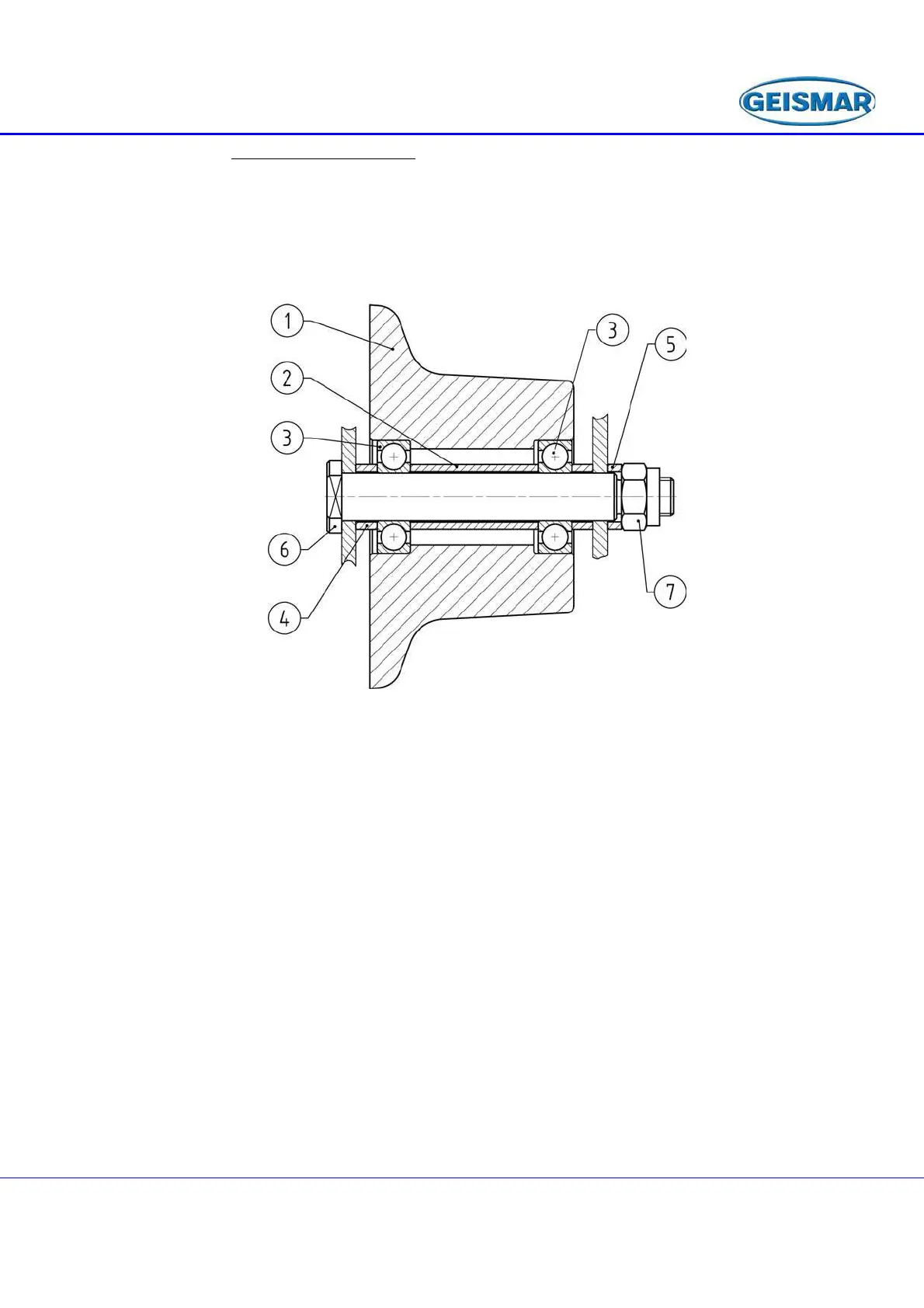

Remove a braked wheel (fig. 32, see plate NO 75035):
– Unscrew the nut ref. 7
– Remove the strut ref. 5, then the shaft ref. 6 holding the roller ref. 1 and the struts ref.
4 to prevent them from falling.
– Take out the bearings ref. 3 and struts ref. 2
Fig : 32
6 – 7 Hydraulic oil
Approved hydraulic oil: TOTAL Equivis ZS 32
Technical features:
– Viscosity at 40°C: 32,3 Cst
– Viscosity index: 160
– Flow point: - 39°C
If you must use another sort of oil: carefully the properties correspond and totally
empty the machine beforehand.
Check the unit's pressure rating every month. A pressure drop of ~ 5% for 1
hour is acceptable. Beyond this value the valves must be checked and/or changed.
