Chap. 8 — page 43
L.GEISMAR Company – Prohibited Reproduction©
HYDRAULIC RAIL THREADER H90461 / NO 10055
TYPE MPR – M
Chapter 8 – Spare parts
8 – 1 Foreword
The spare parts catalogue has all the component parts of the machine. The latter
is considered as an assembly broken down into sub-assemblies, which are themselves
broken down into individual spare parts.
You can consult it and go directly to the plate N° for the part which interests you.
This plate consists of a list of parts with a drawing.
I
N THIS EXAMPLE

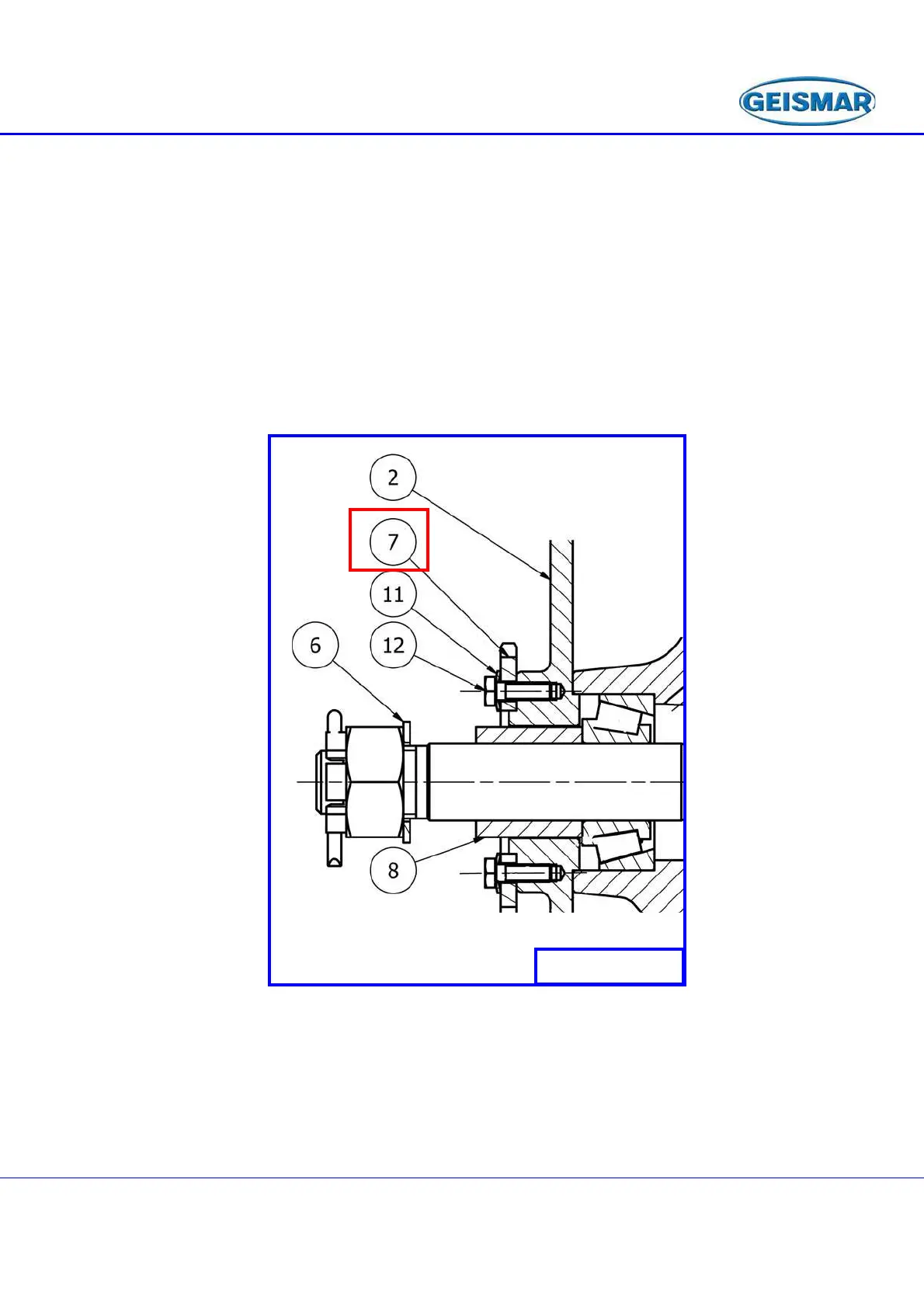

We want to replace the: pinion ref. 7 in assembly NO 09150-2-4
You will find the Code for this pinion in the parts list for this plate (here NO
09150-2-4 ). Simply note the indications on your part replacement request form.
