H90461 / NO 10055 HYDRAULIC RAIL THREADER
TYPE MPR – M
Chap. 4 — page 22
L.GEISMAR Company – Prohibited Reproduction©
4 – 7 – 2 Battery compartment

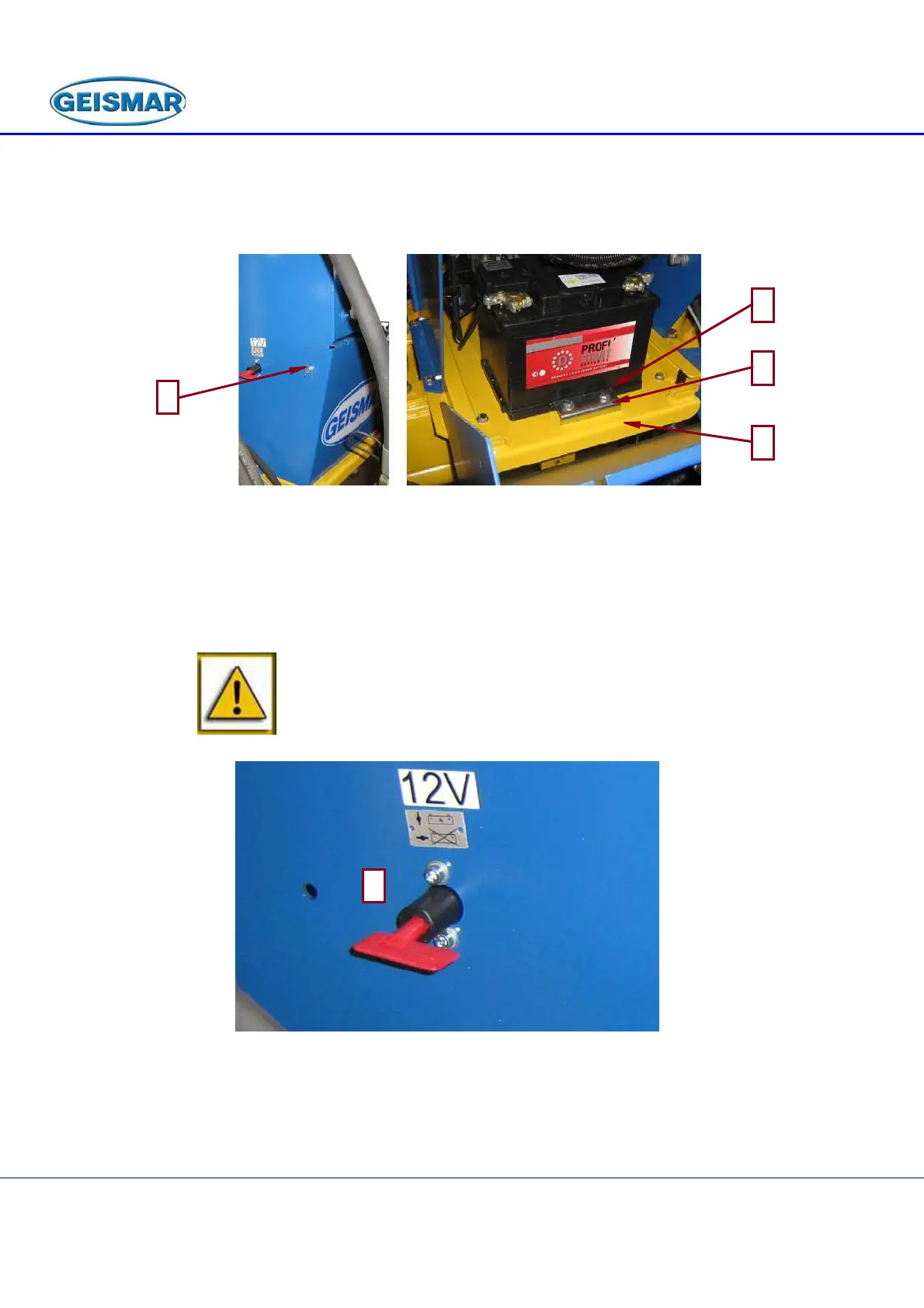

The Rail Threader is equipped with a 12V - 60A/h battery (fig.17) housed in its
compartment. To access this, remove the butterfly screws on the sides of the casing (1).
Fig : 17
TO REMOVE THE BATTERY:
– Remove the screws (2)
– Remove the bracket (3)
– Pull the drawer (4) towards yourself
The Rail Threader is equipped with a battery cut-out (1). When the Rail
Threader is stopped, if work is being done on it, make sure that the battery
cut-out is always horizontal (OFF) (fig.18)
Fig : 18
