Chap. 4 — page 17
L.GEISMAR Company – Prohibited Reproduction©
HYDRAULIC RAIL THREADER H90461 / NO 10055
TYPE MPR – M
4 – 5 – 1 Travel trolley

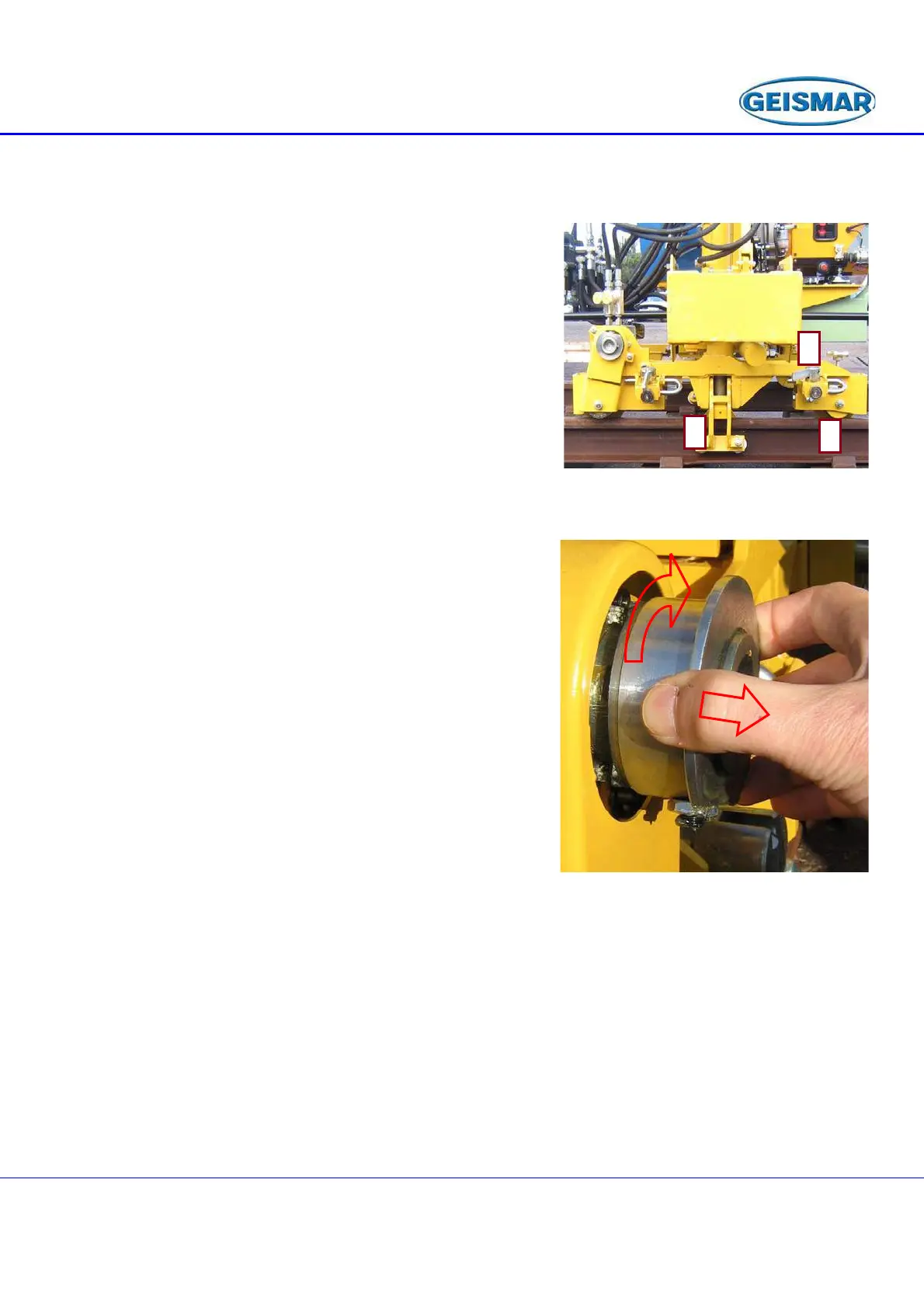

Each travel carriage (fig.6) includes:
Two travel units each equipped with a
cushion roller mounted on a sealed ball bearing
(1). One of these two travel units is motorised
and has a disengaging mechanism, the other is
equipped with a manual screw brake.
Four guide plates on rollers which guide the rails
during installation (2)
One hydraulically-controlled rail clamp. The rail
clamp is mechanically locked and therefore cannot
open, even if the hydraulic pressure drops (3).
The rail clamps must be raised to cope with
obstacles.
Fig : 6
THE DISENGAGEMENT SYSTEM:
The disengagement system (fig.7) is used to
disengage the Rail Threader to move it manually along
the track. To use it:
Pull the disengagement system wheel towards
you and turn it clockwise until it locks.
Fig : 7
To engage the system, turn the wheel anticlockwise until it engages in its initial
system.
