H90461 / NO 10055 HYDRAULIC RAIL THREADER
TYPE MPR – M
Chap. 6 — page 38
L.GEISMAR Company – Prohibited Reproduction©
6 – 6 Procedure for changing a wheel

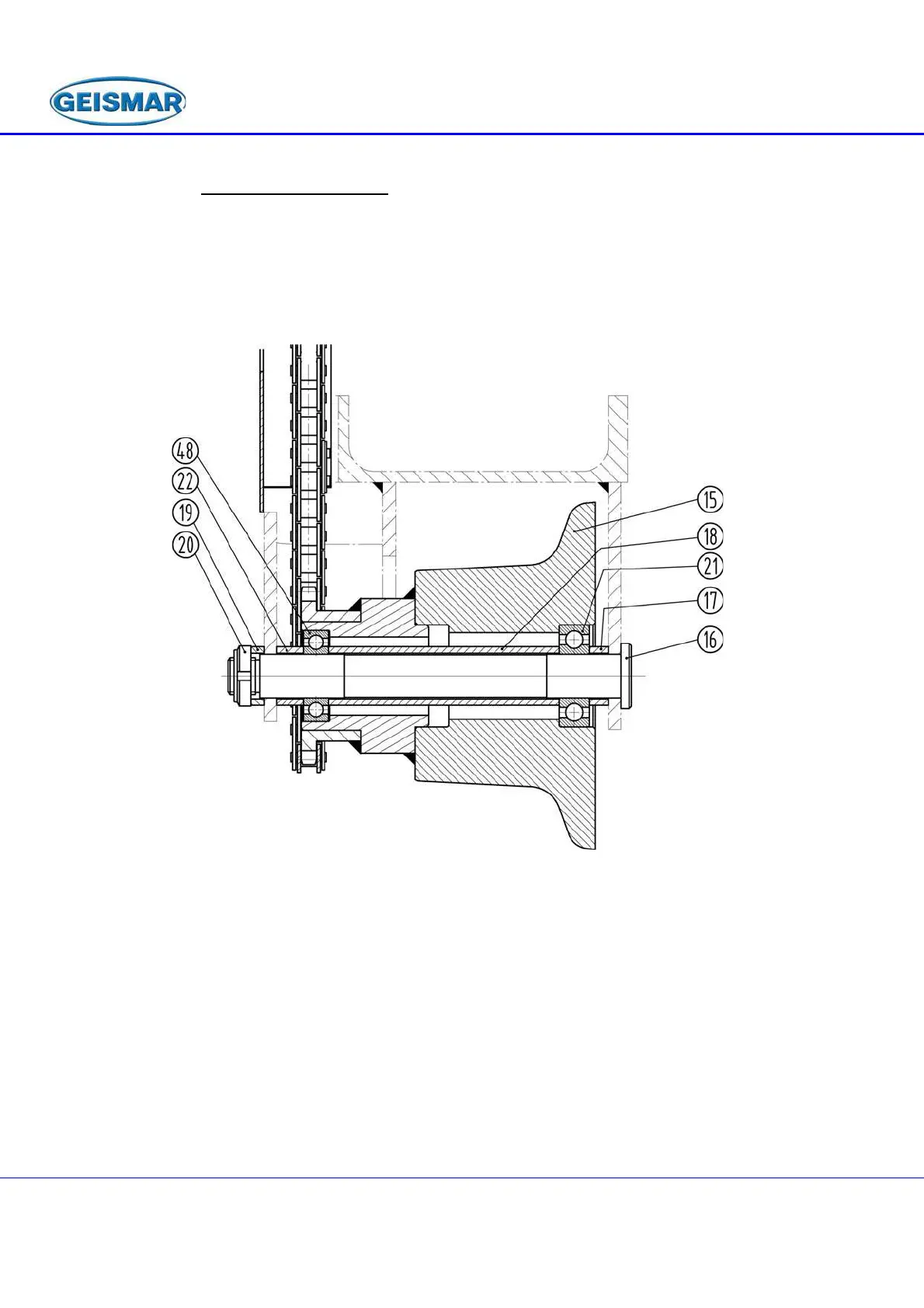

Removing a drive wheel (fig. 31, see plate NO 04110-3-3):
– Remove the protective cap from the motor unit and remove the chain.
– Unscrew the nut ref. 20
– Remove the strut ref. 19, then the shaft ref. 16, holding the roller ref. 15 and struts
ref. 22 and 17 to prevent them from falling.
– Take out the bearings ref. 21 and 48 and the struts ref. 18
Fig : 31
