HYDRAULIC RAIL THREADER H90461 / NO 10055
TYPE MPR – M
5 – 4 – 2 Procedure
(For control lever function, see § 4.3.)

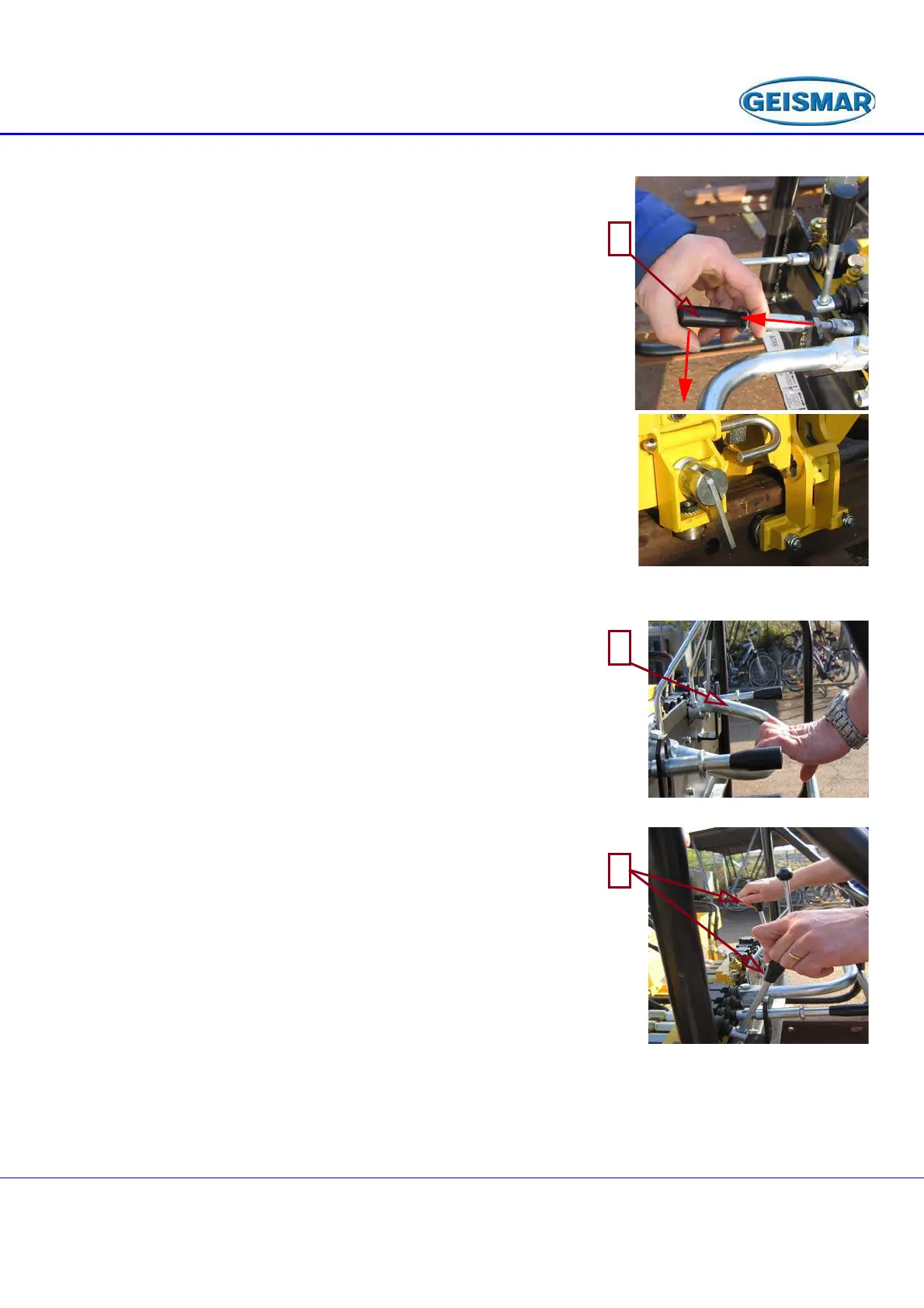

Lock the clamps using the levers (B). These
levers are equipped with safety devices, so to activate
them you must pull the locking sleeve towards yourself
and lower the lever (fig.22)
Fig : 22
Check visually to ensure that the clamps and
guide plates are properly positioned. (fig. 23)
Fig : 23
Lower the handle (A); the frame is lowered, take
hold of a tie and lift the whole carriage and rails to the
limit of travel. (fig. 24)
Fig : 24
Pull or push the levers (C) for the shifting
operation. (fig. 25)
Fig : 25
Lift the handle (A), the unit is lowered and the rails are set on the tie housing and
the contact frame is raised. (fig. 24)
