HYDRAULIC RAIL THREADER H90461 / NO 10055
TYPE MPR – M
4 – 7 Eletrical unit

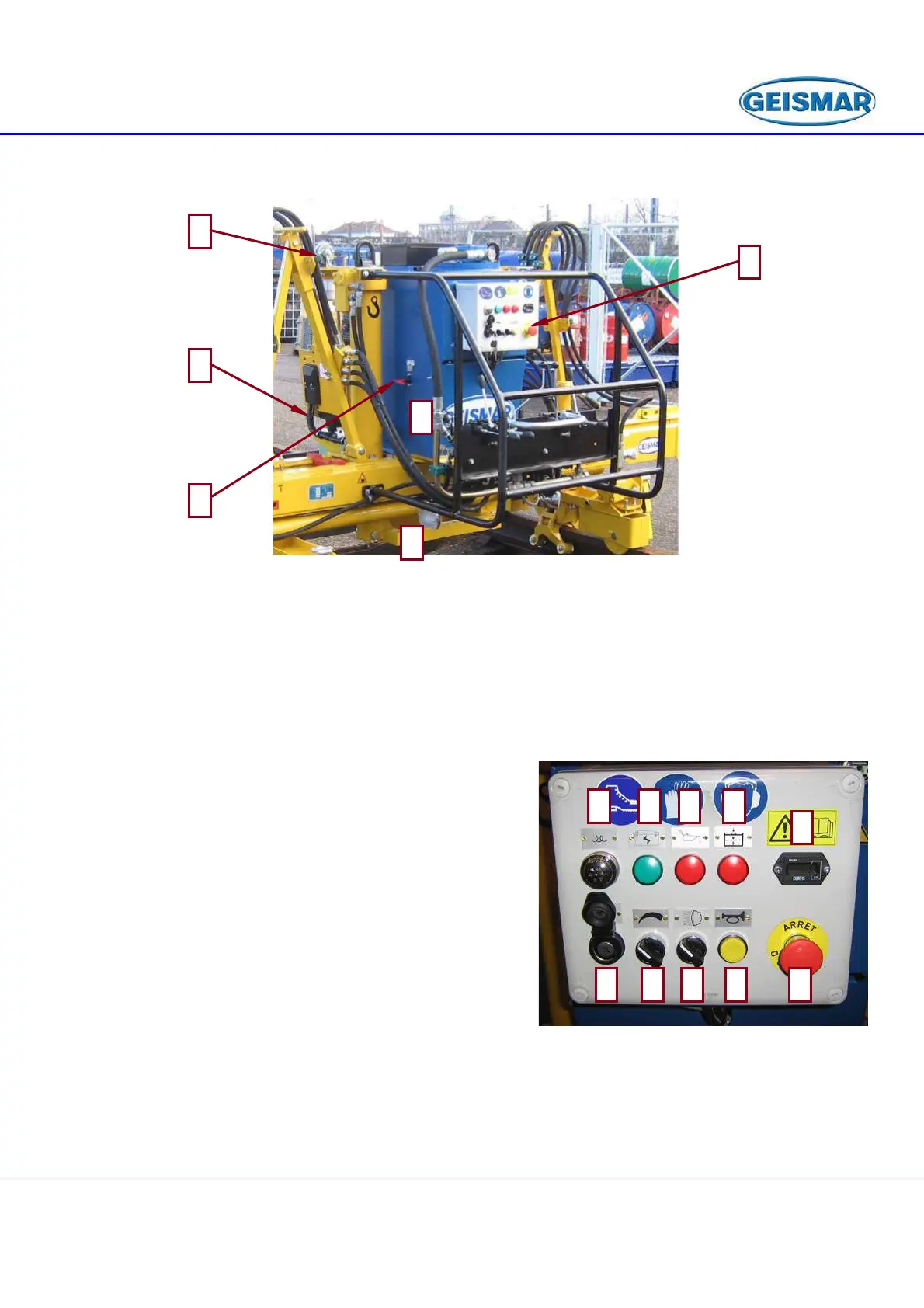

Fig : 15
The Rail Threader (fig.15) is equipped with a motor with built-in starter and electric
accelerator (1), an electrical enclosure (2), a battery compartment (3), a battery cut-out (4),
two headlights for illuminating the work zones (5) and a buzzer (6)
4 – 7 – 1 Electrical enclosure
The electrical enclosure (fig.16) groups all the Rail Threader functions and controls.
1 – Motor starter
2 – Preheating indicator
3 – Battery charge
4 – Oil pressure
5 – Return filter clogging
6 – Hour-meter
7 – Emergency stop
8 – Warning buzzer
9 – Clamp lighting: 2 x 15 W
10 – Slow / Max.
Fig : 16
5
3
2
4
6
1
2 3 4 5
6
