7.5 Electrical data
Electrical connection
type:
1 x 5-pin M12 plug (A-coded)
Supply voltage Uv: 24 V DC (18 to 30 V DC)
Current consumption: typically 30 mA
Duty cycle: Continuous duty
Electrical protection
class:
III
Reverse battery protec-
tion:
yes
Line fuse 630 mA medium time lag (not applicable for operation with IO-Link Master)

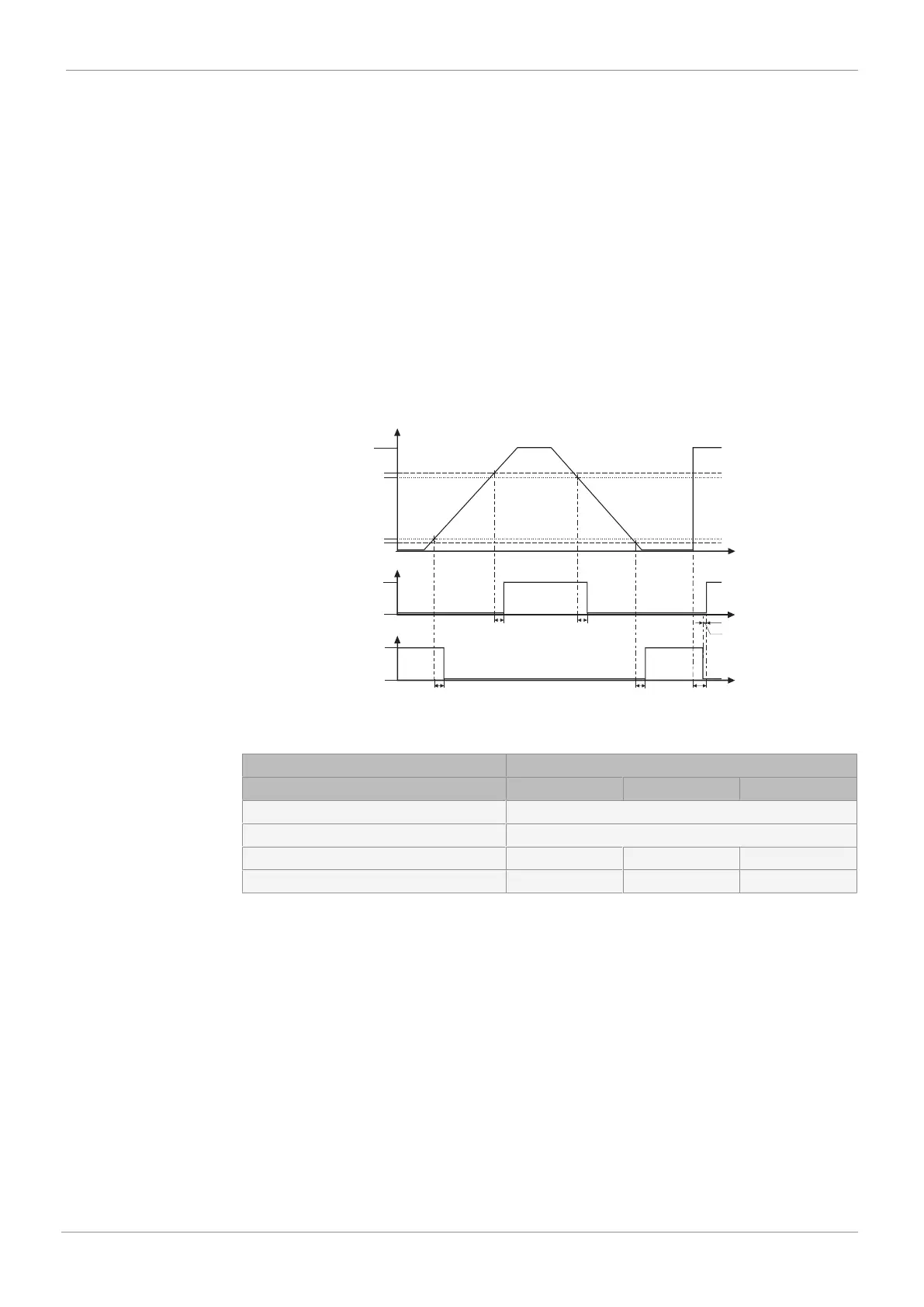

Switching characteristic:
100%
0%
td1
td1
td1
td2
td1
ta
t/ms
t/ms
t/ms
Stroke %
Switch point "Open"
Switching hysteresis
Switching hysteresis
Switching output "Open"
Switch point "Closed"
Active
Inactive
Active
Inactive
Switching output "Closed"
td1: Signal delay
td2: Signal delay
ta: Signal interval
Switch points: The data in percent refers to the programmed stroke, with reference to the lower end position (0%)
Switch points:
Travel sensor version Code
030 050 075
Default setting switch point CLOSED 12 %
Default setting switch point OPEN 25 %
Min. switch point CLOSED 0.8 mm 1.4 mm 2.0 mm
Min. switch point OPEN 0.5 mm 0.9 mm 1.25 mm
If the percentage switch points dependent on the programmed stroke are smaller than the permiss-
ible min. switch points, the min. switch points apply automatically.
