www.gemu-group.com40 / 56GEMÜ 1235 / 1236
24V, 3S, 4S

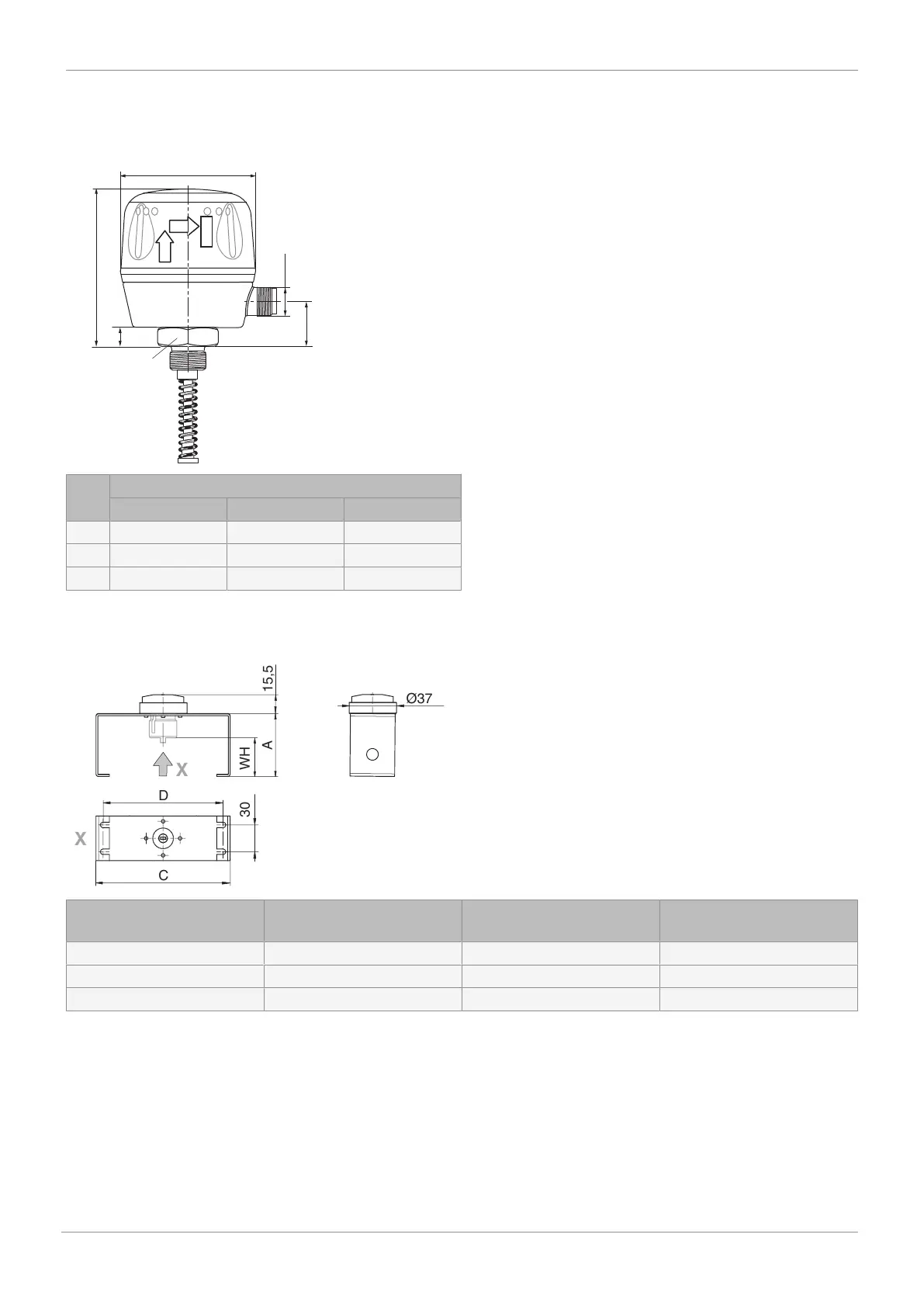

8 Dimensions
8 Dimensions
8.1 1235/1236 electrical position indicator
PULL
TURN
PROG
A
B
SW 27
C
M12
ø 60
Travel sensor version code
030 050 075
A 65.5 87.5 112.5
B 8.5 30.5 55.5
C 19.0 41.0 66.0
Dimensions in mm
8.2 1235/1236 PTAZ mounting bracket for direct mounting on quarter turn actuators
X
Ø37
A
D
C
30
X
15,5
WH
Shaft height
WH
Hole spacing
D
A C
20.0 80.0 40.0 100.0
30.0 80.0 50.0 100.0
50.0 130.0 70.0 150.0
Dimensions in mm
