www.gemu-group.com 45 / 56 GEMÜ 1235 / 1236
24V, 3S, 4S

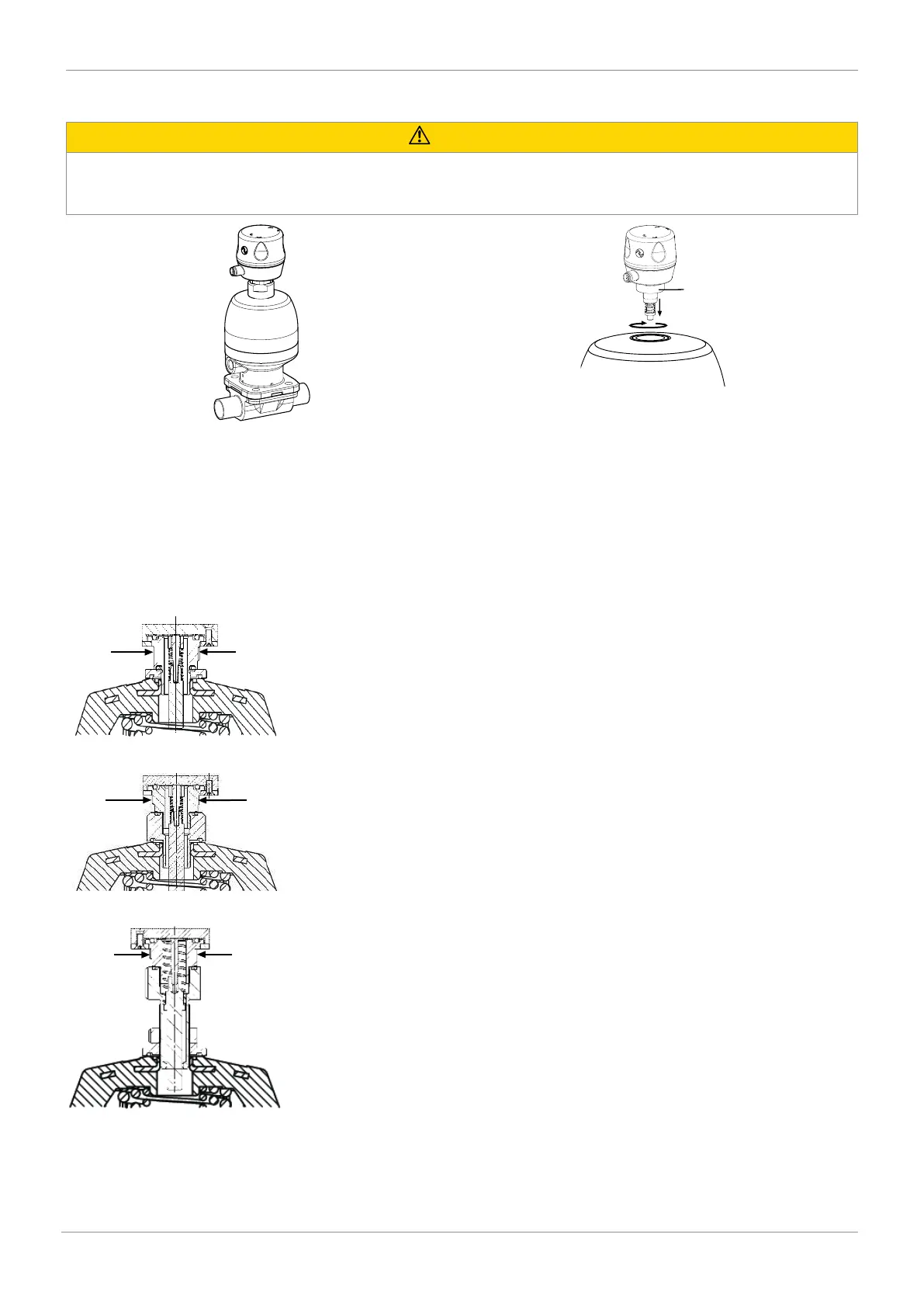

10.7 Installing the electrical position indicator (linear actuator)
CAUTION
Incorrect installation of the product.
▶ Damage to the housing.
● Only tighten the product using the spanner flats provided for this purpose.
1. Move the actuator to the OPEN position.
2. Guide the product as far as it will go into the actuator opening, the adapter 3 (see “Threaded adapter assembly (linear actu-
ator)“, page43) or the stroke limiter 1 (see “Assembling the stroke limiter (linear actuator)“, page44), and screw it in clock-
wise against the initial spring tension.
3. Use the spanner flat of the travel sensor to tighten the product.
4. Turn the housing clockwise to align the pneumatic or electrical connections.
5. Initialize the product.
6. The product with mounting kit is fully assembled.
7. The product with mounting kit and adapter is fully assembled.
8. The product with mounting kit and stroke limiter is fully assembled.
10 Assembly and installation
