Maintenance
Replacing the Engine Oil
(000688)
Personal injury. Before performing any maintenance procedure
or inspection, stop the engine, and allow all parts to cool.
Disconnect spark plug wire and keep spark plug wire away
from spark plug. Failure to do so could result in serious injury.
WARNING
(000139)
WARNING
Risk of burns. Allow engine to cool before
draining oil or coolant. Failure to do so could
result in death or serious injury.
(000210)
WARNING
Skin irritation. Avoid prolonged or repeated contact with
used motor oil. Used motor oil has been shown to cause
skin cancer in laboratory animals. Thoroughly wash
exposed areas with soap and water.
(000135)
Engine damage. Verify proper type and quantity of
engine oil prior to starting engine. Failure to do so
could result in engine damage.
CAUTION
NOTE: Drain oil when engine is warm. Warm oil drains
more completely.
Proceed as follows to replace engine oil:

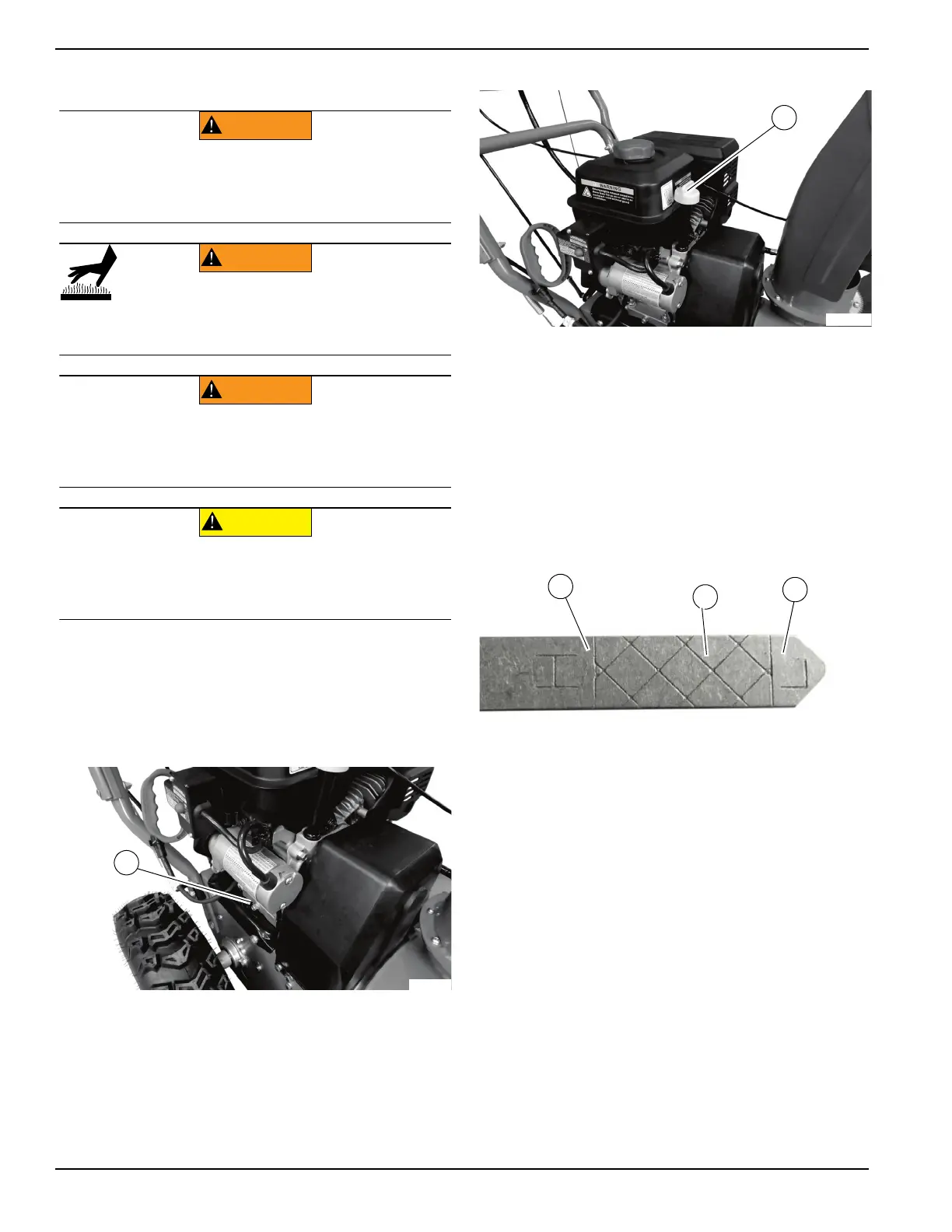

1. See Figure 4-1. Set machine on a level surface
and place a waste oil container under oil drain plug
(A)
.
Figure 4-1. Engine Oil Fill Location (left side)
2. Re
move oil drain plug and allow oil to drain into
container.
3. R
eplace oil drain plug.
4. Fill with recommended engine oil.
See Adding
Engine Oil for more information.
5. R
eplace oil fill/dipstick when finished.
6. Se
e Figure 4-2. Remove oil fill/dipstick cap (B).
Figure 4-2. Oil Fill/Dipstick
7. Ad
d 17–20 oz (0.5–0.59 L) of oil recommended by
the engine manufacturer. Wait one minute for oil to
settle.
8. Ins
ert oil fill/dipstick. Do not screw in completely.
9. R
emove oil fill/dipstick and check oil level. Clean oil
dipstick with a clean rag after checking.
10. Se
e Figure 4-3. Continue adding a few ounces at
a time and check oil fill/dipstick until oil level is in
hatched
area (C) between the bottom of the oil dip-
stick (D) and H(igh) mark (E). Do not overfill.
Figure 4-3. Oil Dipstick and Fuel Fill
11. Ins
ert oil fill/dipstick completely when full.
