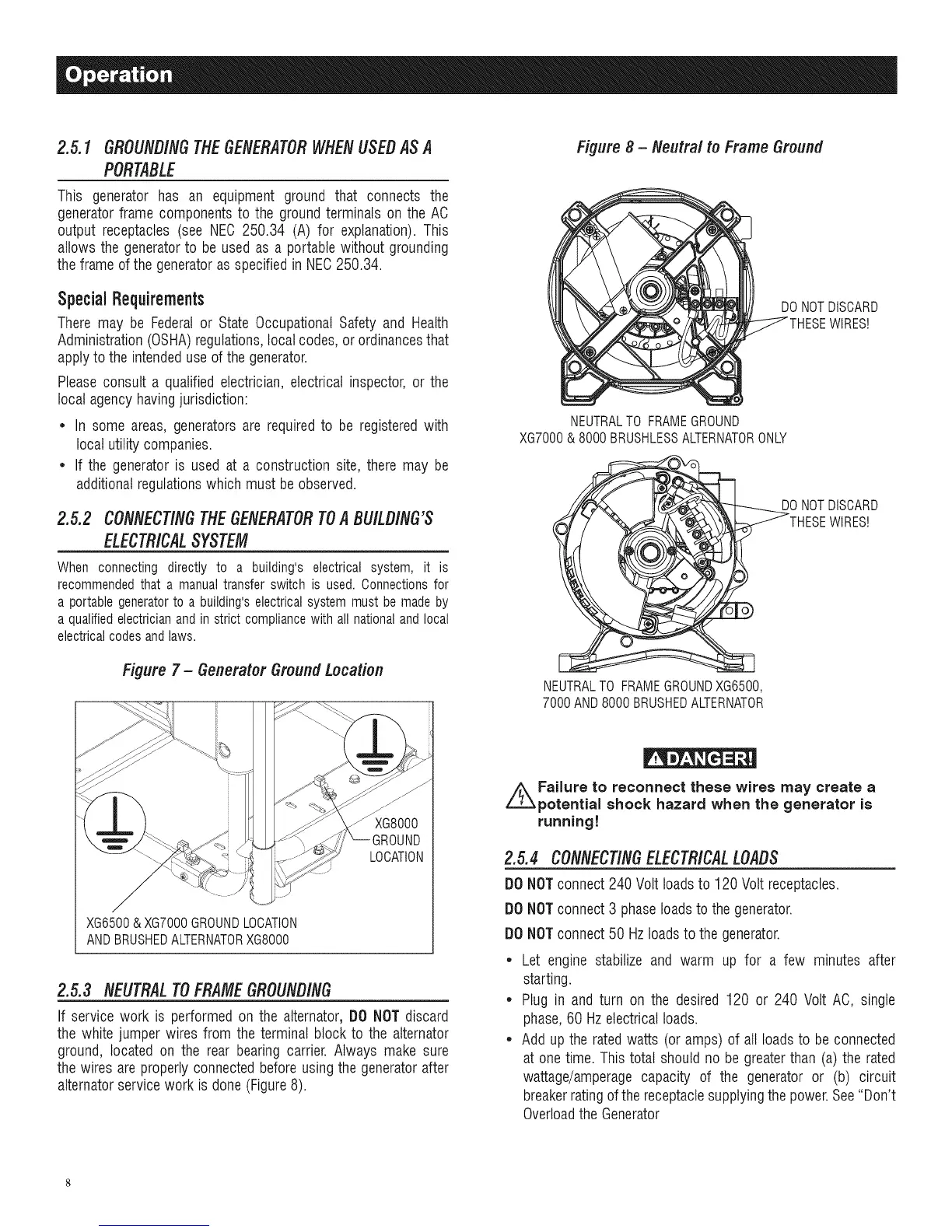

2.5.1 GROUNDINGTHEGENERATORWHENUSEDASA
PORTABLE
This generator has an equipment ground that connects the
generatorframe componentsto the ground terminals on the AC
output receptacles (see NEC 250.34 (A) for explanation).This
allows the generatorto be used as a portable without grounding
the frame of the generatorasspecifiedin NEC250.34.
SpecialRequirements
There may be Federalor State Occupational Safety and Health
Administration(OSHA)regulations,local codes, or ordinancesthat
applyto the intendeduse of the generator.
Pleaseconsult a qualified electrician,electrical inspector, or the
local agencyhavingjurisdiction:
* In some areas, generators are requiredto be registeredwith
local utilitycompanies.
* If the generator is used at a construction site, there may be
additionalregulationswhich must be observed.
2.5.2 CONNECTINGTHEGENERATORTO,4BU/LD/NG'S
ELECTRICALSYSTEM
When connecting directly to a building's electrical system, it is
recommended that a manual transfer switch is used. Connections for
a portable generatorto a building's electrical system must be made by
a qualifiedelectrician and in strict compliance with all national and local
electrical codes and laws.
Figure7 - GeneratorGroundLocation
LOCATION
XG6500& XG7000 GROUNDLOCATION
ANDBRUSHEDALTERNATORXG8000
2.5.3 NEUTRALTOFRAMEGROUNDING
If service work is performed on the alternator, DO NOTdiscard
the white jumper wires from the terminal block to the alternator
ground, located on the rear bearing carrier. Always make sure
the wires are properly connected beforeusingthe generatorafter
alternatorservicework is done (Figure8).
Figure8 - NeutraltoFrameGround
NEUTRALTO FRAMEGROUND
DONOTDISCARD
WIRES!
XG7000 & 8000 BRUSHLESSALTERNATORONLY
DONOTDISCARD
WIRES!
NEUTRALTO FRAMEGROUNDXG6500,
7000 AND8000 BRUSHEDALTERNATOR
//_Failure to reconnect these wires may create a
potential shock hazard when the generator is
running!
2.5.4 CONNECTINGELECTR/CALLOADS
DONOTconnect240 Volt loadsto 120 Volt receptacles.
DONOTconnect3 phaseloadsto the generator.
DONOTconnect50 Hzloadsto the generator.
* Let engine stabilize and warm up for a few minutes after
starting.
* Plug in and turn on the desired 120 or 240 Volt AO, single
phase,60 Hzelectrical loads.
* Add up the ratedwatts (or amps) of all loadsto be connected
at one time. This total should no be greaterthan (a) the rated
wattage/amperagecapacity of the generator or (b) circuit
breakerratingofthereceptaclesupplyingthe power.See"Don't
OverloadtheGenerator
