Rear Panel
Network Cable
Connector
DC Power
Connector
Reset Button
10/100 Ethernet
DC 5V
Reset
Network Cable Connector

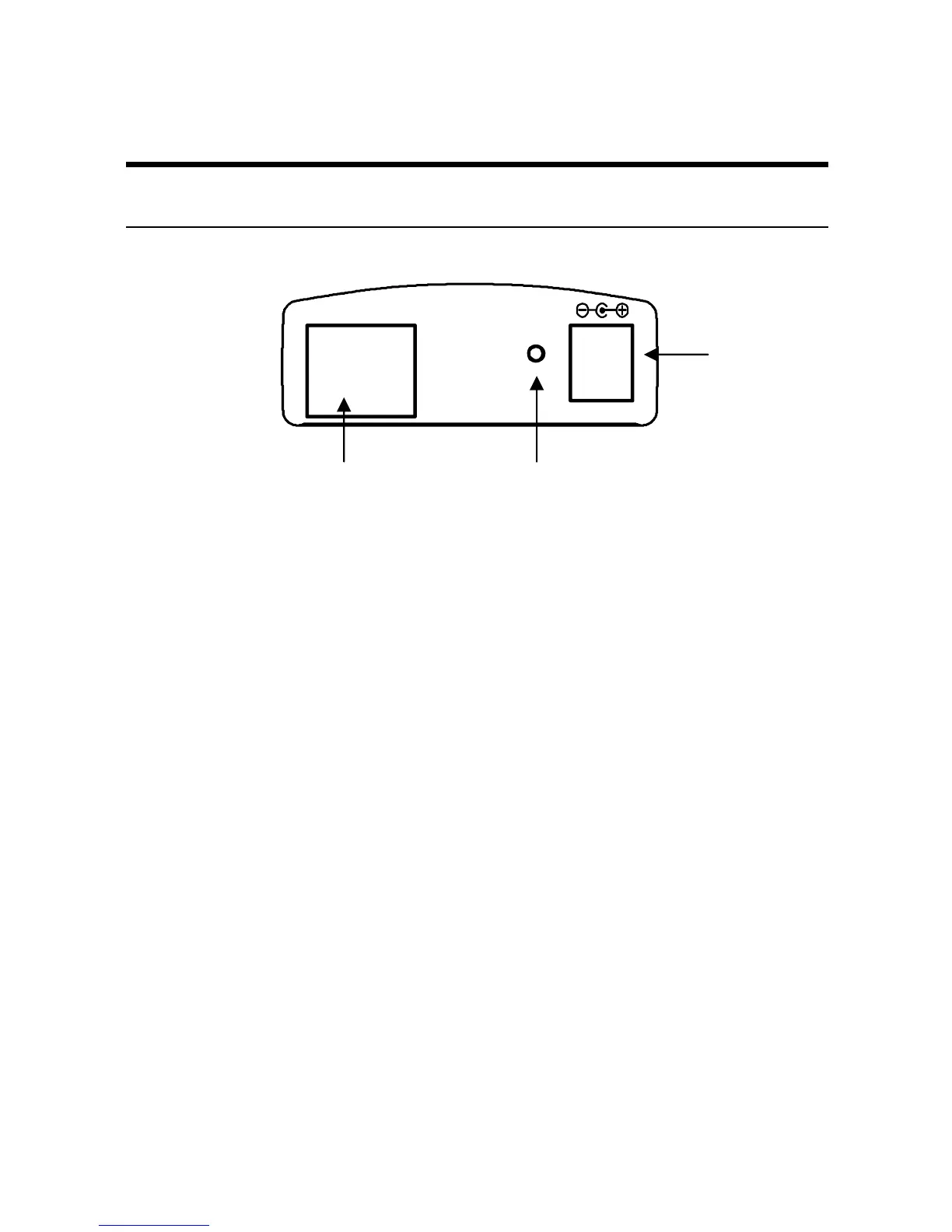

The IPCam SECURE300’s rear panel features an RJ-45
connector for connections to 10Base-T Ethernet cabling or
100Base-TX Fast Ethernet cabling (which should be Category 5
twisted-pair cable). The port supports the NWay protocol,
allowing the IPCam SECURE300 to automatically detect or
negotiate the transmission speed of the network.
DC Power Connector
The DC power input connector is located on the IPCam
SECURE300’s rear panel, and is labeled DC 5V with a single
jack socket to supply power to the IPCam SECURE300. Power
will be generated when the power supply is connected to a wall
outlet.
