GeoMax Zenith60 Series - Setting Up as a Real-Time Rover

4.1.3 Setting Up as a Real-Time Rover

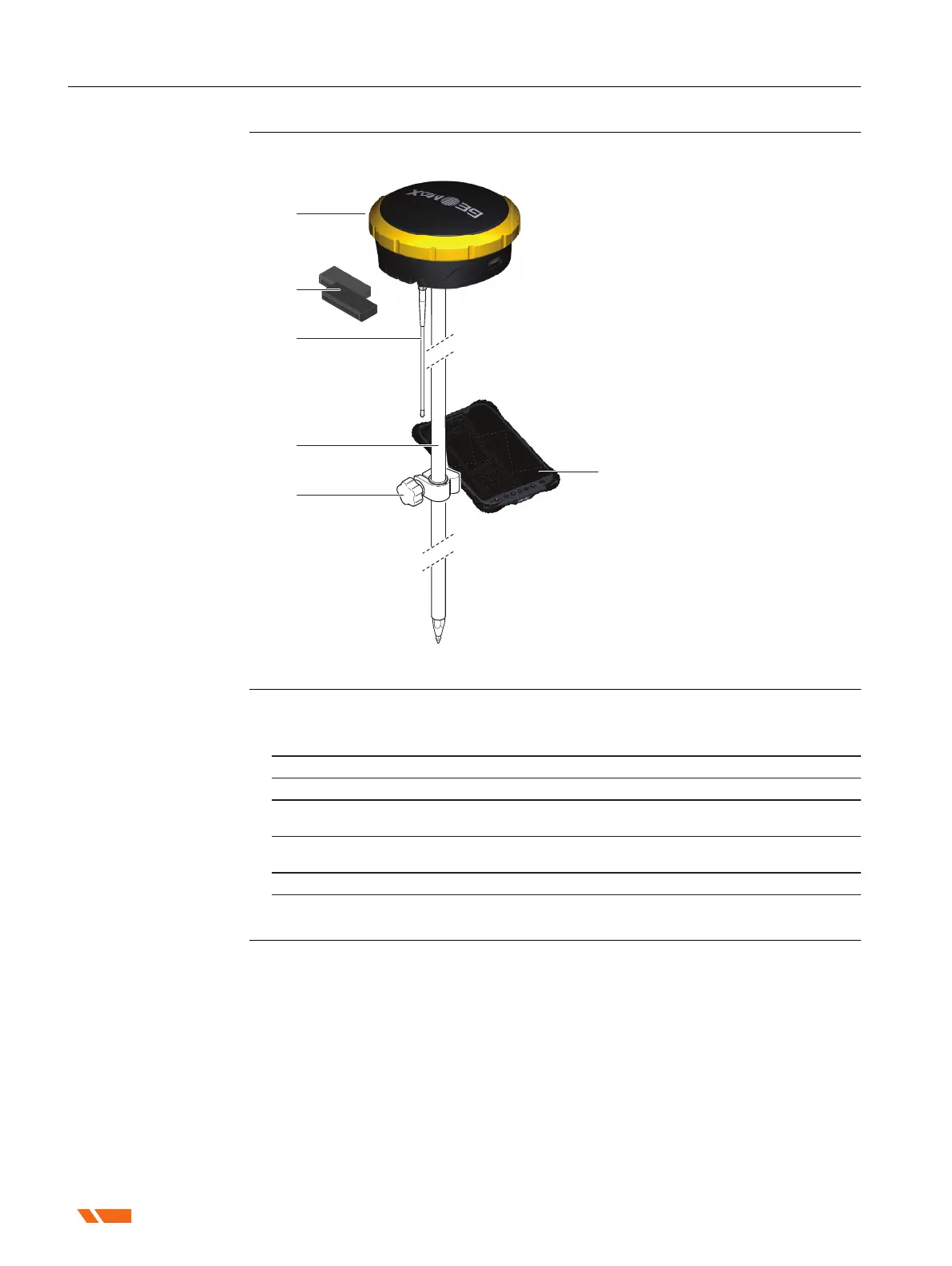

The following equipment setup is used for real-time rover.
23003_002
a
b
c
d
e
f
a Zenith60 GNSS smart
antenna
b Batteries
c UHF antenna
d Pole
e Holder
f Field controller
1. Attach the field controller to the pole.
Clip the field controller into the holder and lock it by tightening the screw on the
holder.
2. Turn on the field controller.
3. Insert the batteries into the GNSS smart antenna.
4. Connect the UHF antenna to the GNSS smart antenna. This connection is only
required when using the internal radio.
5. Press ON/OFF button on the GNSS smart antenna for 2 s to switch on the GNSS
smart antenna.
6. Screw the GNSS smart antenna on to the top of the pole.
7. Connect the field controller to the GNSS smart antenna through Bluetooth.
Use
Equipment setup -
Zenith60
Equipment setup
step-by-step
