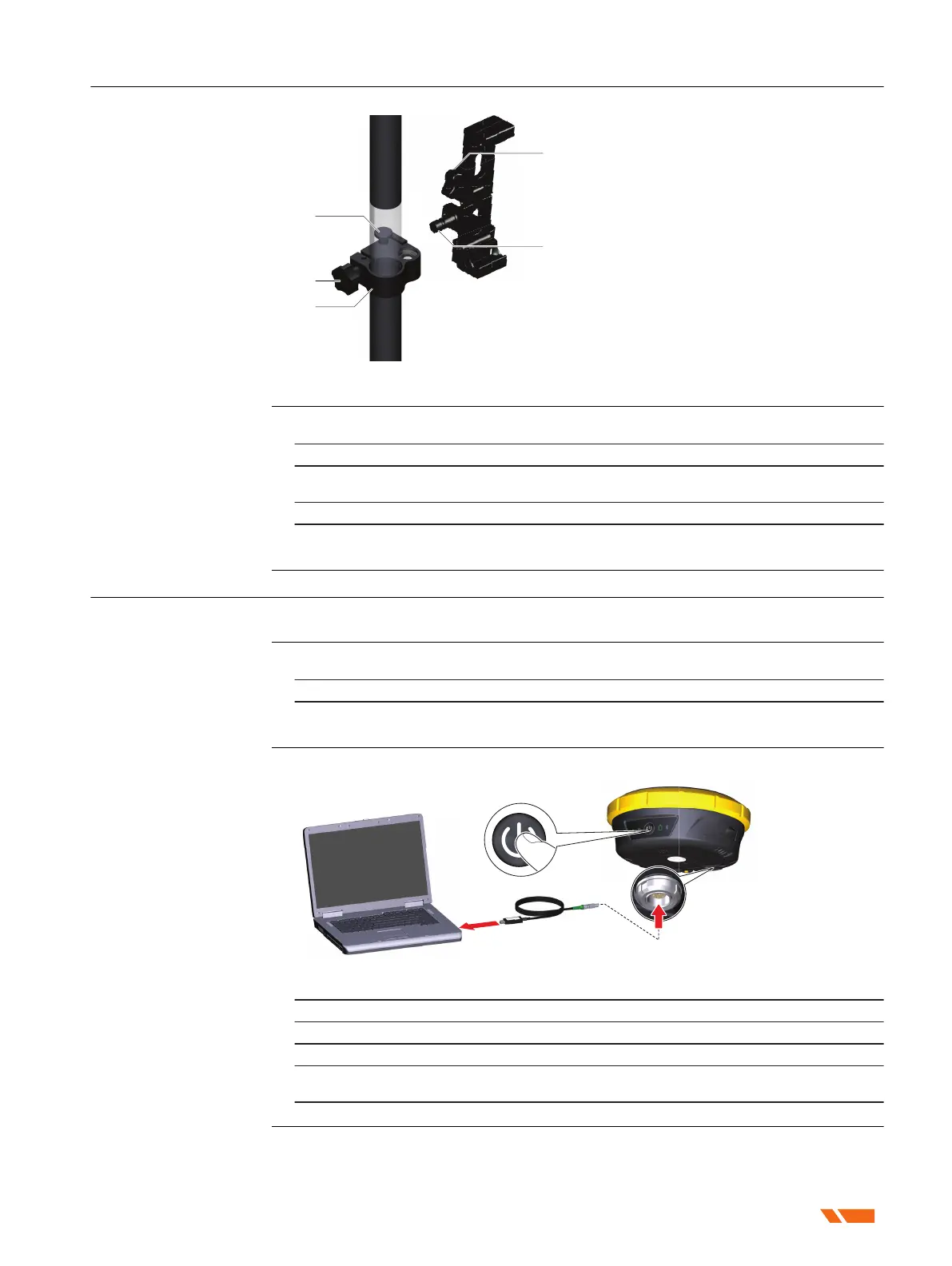

4.1.4 Fixing the Field Controller to a Holder and Pole
Clamp
a Locking pin
b
Tightening screw
c Pole clamp
Holder
d Tightening screw
e Pin
1. Insert the pole into the clamp hole.
2. Tighten the clamp with the tightening screw.
3. To attach the holder to the clamp insert the pin into the catch of the clamp while
pushing down the locking pin.
4. Place the field controller in the holder.
5. Tighten the screw of the holder to fix the field controller to the holder.
4.1.5 Connecting to a Personal Computer
The instrument is connected to a Personal Computer via serial/USB cable.
1. Start the PC.
2. Download the cable driver from the GeoMax website.
3. Install the cable driver on a PC using a Windows operating system.
1. Start the computer.
2. Plug the included cable into the port of the Zenith60.
3. Turn on the Zenith60.
4. Plug the cable into the USB port of the computer. If Windows Hardware Wizard
starts up
, select CLOSE.
Components of the holder
Fixing the field controller
to the holder step-by-step
Description
Install software
Connect the Zenith60 to a
computer
21
Operation
