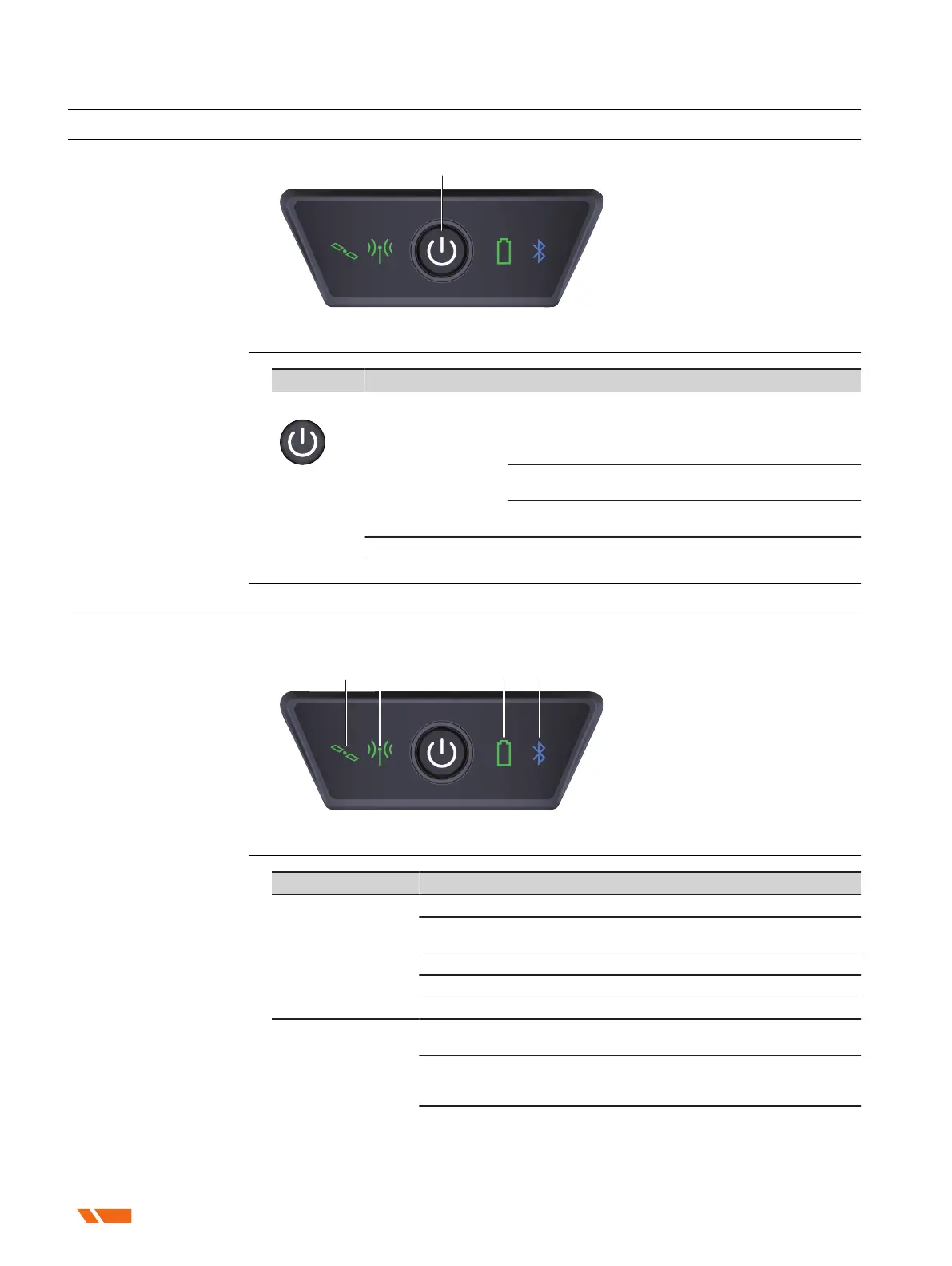

3 User Interface
3.1 Keyboard
a ON/OFF button
Button Status Function
ON/OFF If Zenith60 is off Turns on the Zenith60 when held for 2 s.
☞
While the Zenith60 is booting the Power
LED is solid green while the other LED are
off.
Shows the battery status when the ON/OFF button is
pressed and held for less than 2 s.
Starts the recovery process when held > 6 s. Refer to
4.6 Recovery Process for more details.
If Zenith60 is on Turns off the Zenith60 when held for 2 s.
3.2 LED Indicators
The Zenith60 has Light Emitting Diode indicators. They indicate the basic instrument status.
a Position LED
b RTK LED
c Power LED
d Bluetooth LED
LED Status Description
Position LED Off No satellites are tracked.
Flashing yellow Fewer than four satellites are tracked. A position is
not yet available.
Yellow A navigated position is available.
Flashing green A code-only position is available.
Green A fixed RTK position is available.
RTK LED Off The device is not configured to receive or send out
the RTK data or device is in static mode.
Green Zenith60 is in rover mode. No RTK data is being
received at the interface of the communication
device.
Description
ON/OFF button
LED indicators
Description of the LED
16
User Interface
