GeoMax Zone60 DG User Manual

5 Receivers
5.1 Overview
The Zone60 DG is sold with either the ZRP105, ZRD105 or the ZRD105B receiver. The ZRD105B
receiver enhances the performance of the Zone60 DG with automatic Beam Catching and monit-
oring.

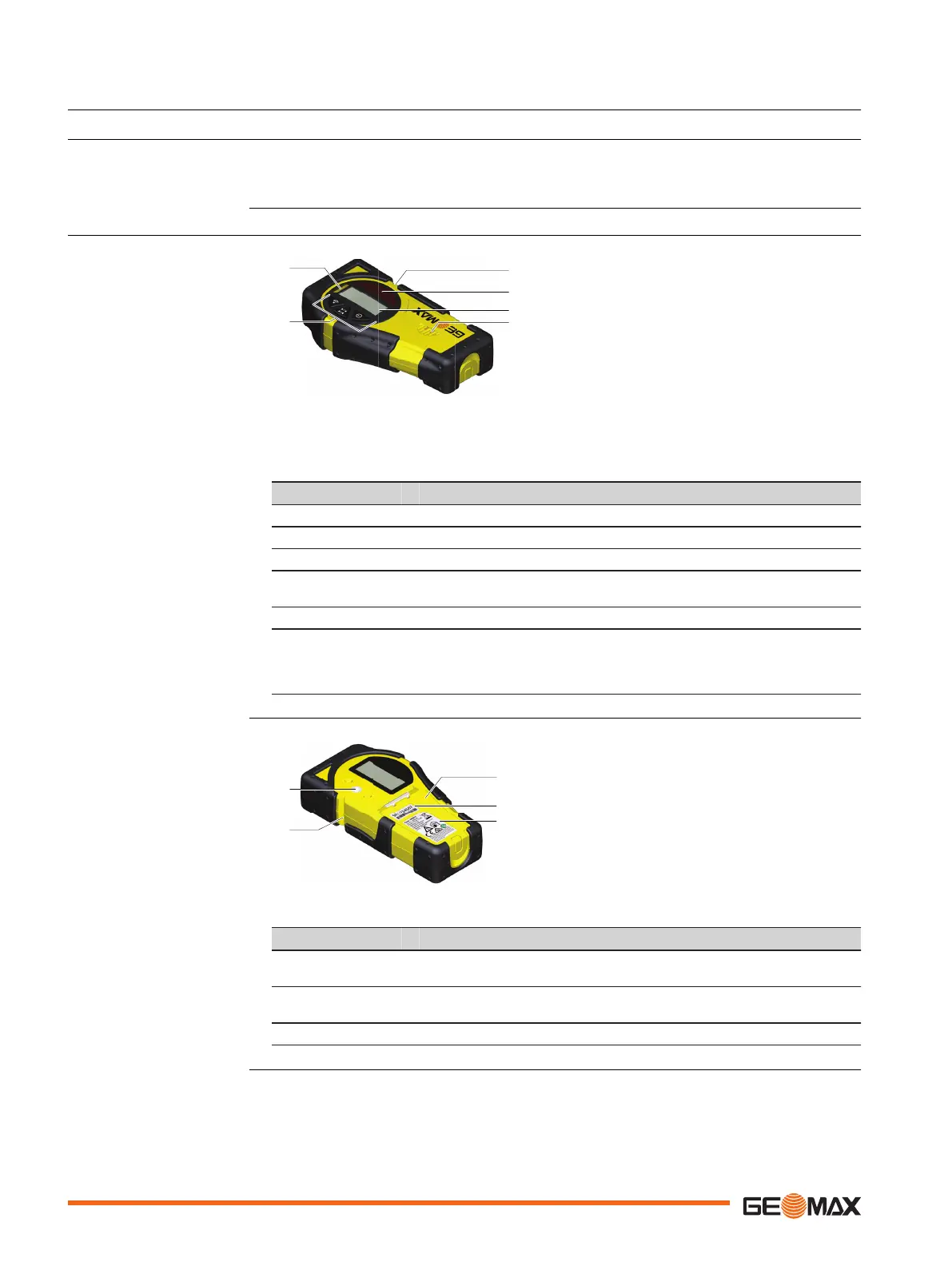

5.1.1 ZRB35, Basic Receiver
011190_001
a
b
c
d
e
f
a Level vial
b Keypad
c On-grade
d Laser Reception window
e LCD window
f Audio Speaker
Component Description
Level vial Aids to keep the rod plumb when taking readings.
Keypad Power, accuracy and volume functions.
On-grade Indicates the on-grade position of the laser.
Laser Reception
window
Detects the laser beam. The reception windows must be directed
towards the laser.
LCD window Front and rear LCD arrow indicate the detector’s position.
Audio Speaker Indicates the detector’s position:
•
High - Fast beeping
•
On-grade - Solid tone
•
Low - Slow beeping
005666_001
a
b
c
d
e
a Bracket Mounting Hole
b Offset notch
c Battery door
d Serial number label
e Product label
Component Description
Bracket Mounting
Hole
Location to attach the receiver bracket for normal operation.
Offset notch Use to transfer reference marks. The notch is 45 mm (1.75") below to
top of the detector.
Battery door Access to the battery compartment.
Description
Instrument components
part 1 of 2
Instrument components
part 2 of 2
