8 Applications
8.1 Setting Forms

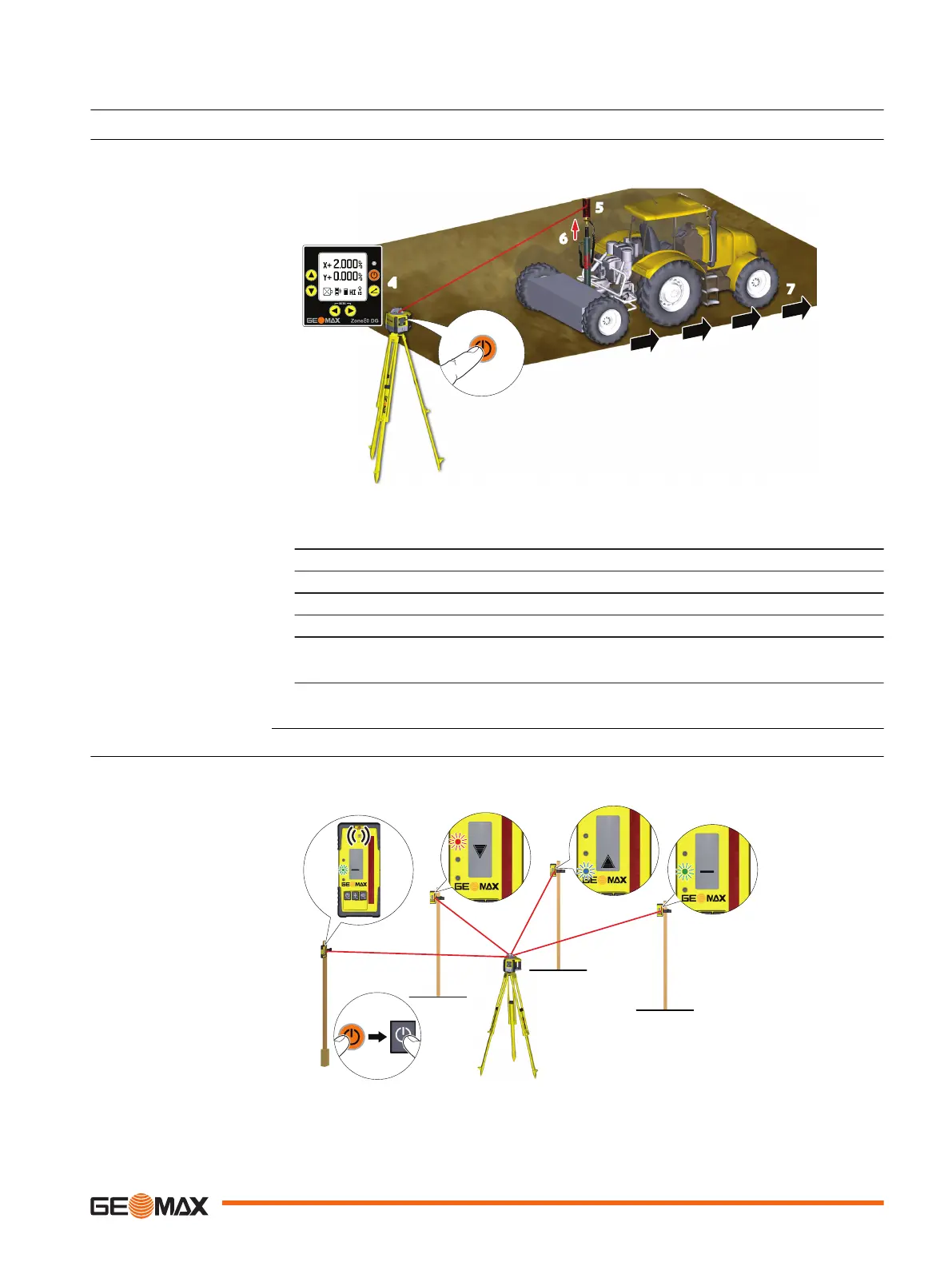

Application shown using the GeoMax ZRP105 receiver.
1. Set up the Zone60 DG on a tripod.
2. Set up the tripod on a stable surface outside the working area.
3. Turn on the Zone60 DG.
4. Enter the required grade on the Zone60 DG. Refer to "3.4 Grade Entry".
5. Attach the receiver on the mast that is mounted on the machine.
6. Raise the mast until receiver is on grade with the reference line.
☞
The laser beam of the Zone60 DG acts as a constant grade reference.
7. Level the ground according to the grade reference.
8.2 Checking Grades
Application shown using the ZRP105 receiver.
4
011224_001
3
1 + 2
5
7a
7b
7c
Agriculture levelling
step-by-step
Checking grades
step-by-step
