GeoMax Zone60 DG User Manual

011196_001
a
b
c
d
e
f
g
h

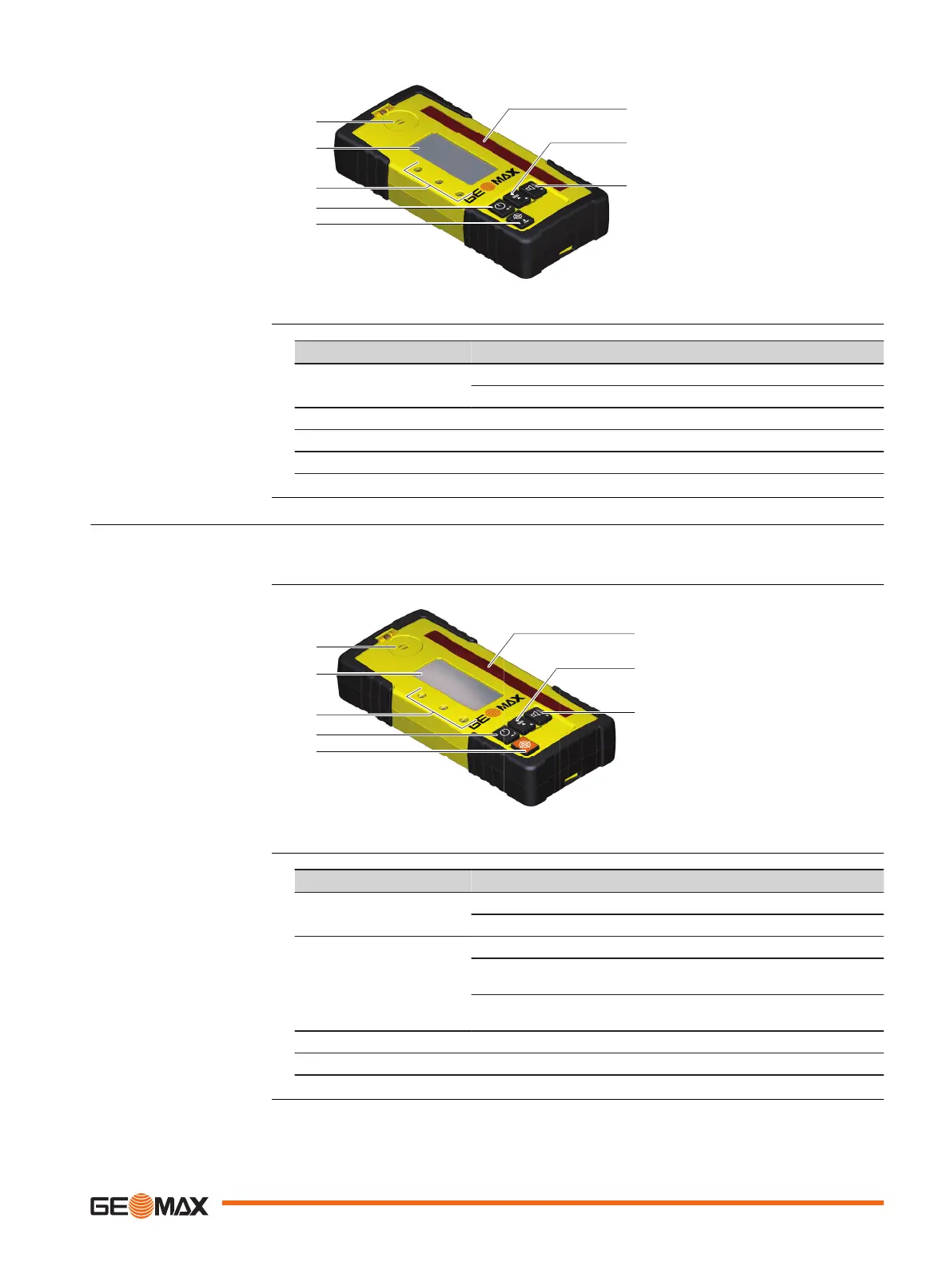

a Speaker
b LCD Digital Display
c LED Display
d Power button
e Target button
f Reception window
g Bandwidth button
h Audio button
Button Function
Power Press once to turn on the receiver.
Press 1.5 seconds to turn off the receiver.
Target Press to capture the digital reading.
Bandwidth Press to change detection bandwidths.
Audio Press to change the audio output.
5.1.4 ZRD105B, Digital RF Receiver
The ZRD105B receiver provides you with basic position information by using an arrow display,
digital readout plus RF communication to the Zone60 DG for special features.
014300_002
a
b
c
d
e
f
g
h
a Speaker
b LCD Digital Display
c LED Display
d Power button
e Beam Catch button
f Reception window
g Bandwidth button
h Audio button
Button Function
Power Press once to turn on the receiver.
Press 1.5 seconds to turn off the receiver.
Beam Catch Press to capture the digital reading.
Press 1.5 seconds to start the Beam Catching function. Refer to
"8.4 BeamCatching (Grade Matching)".
Press 5 seconds to start the Beam Lock function. Refer to "8.5
BeamLock (Grade Matching and Monitoring)".
Bandwidth Press to change detection bandwidths.
Audio Press to change the audio output.
Instrument components
Description of the buttons
Instrument components
Description of the buttons
Receivers 31
