Geotech G200 - Instrument Connection Points

Page 15 of 61
Operating Manual
www.geotechuk.com
OMG200N Iss.04
© QED Environmental Systems Ltd.
G 2 00 R A N G E
Instrument Connection Points

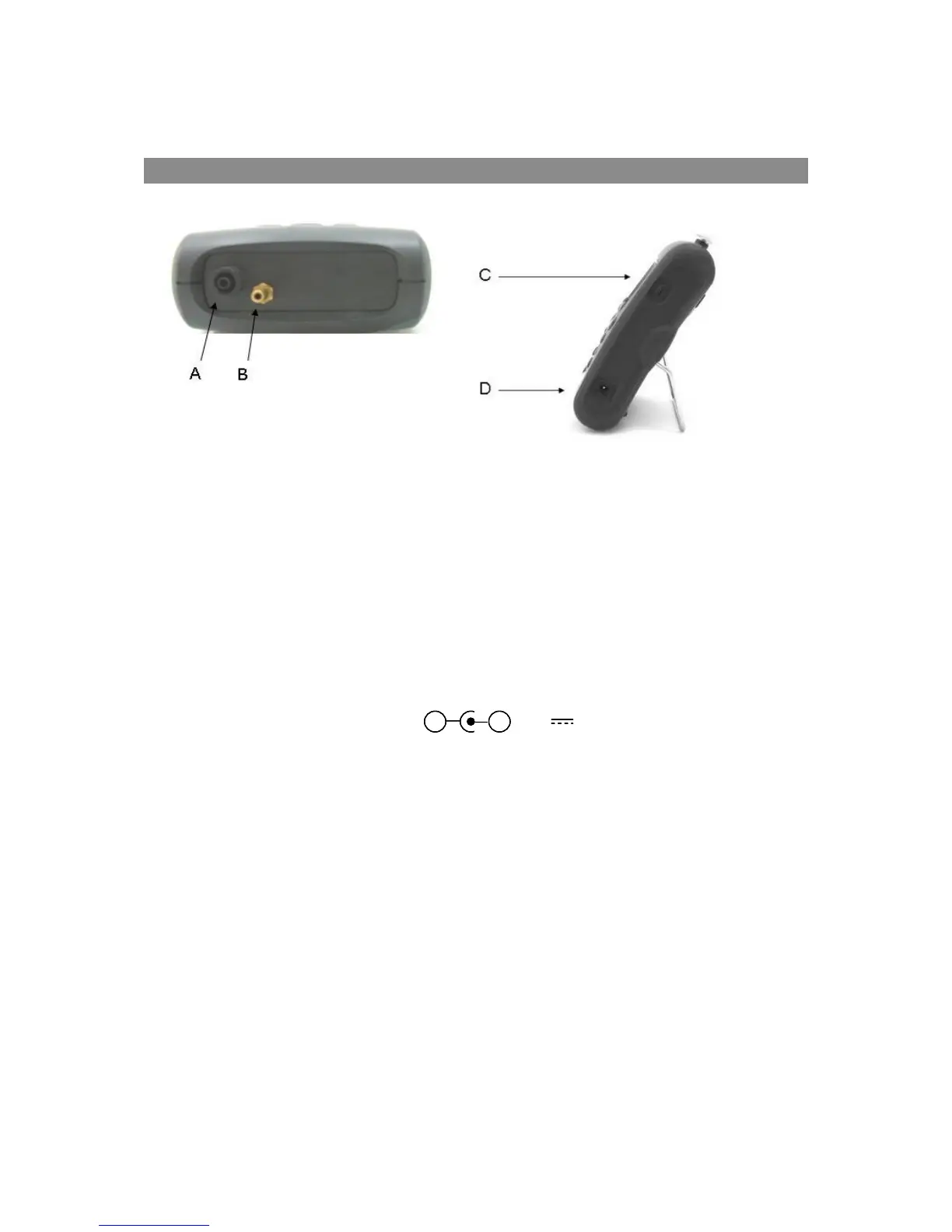

Top View:
Side View:
Key
Description
Function
A
Gas Inlet
Gas inlet point used to attach the sample tube and filter
in order to take the gas reading
B
Gas Outlet
Gas outlet port used to exhaust the gas
C
USB Port
Used to connect the analyser to a PC via a USB cable to
download data
D
Charger Port
Used to attach the main charger to the analyser for
charging
5V ± 0.5V(max 1000mA)
+-
5V ± 0.5V(max 1000mA)
+- +-
