2.5.2 Adding the Reader to GV-DVR/NVR

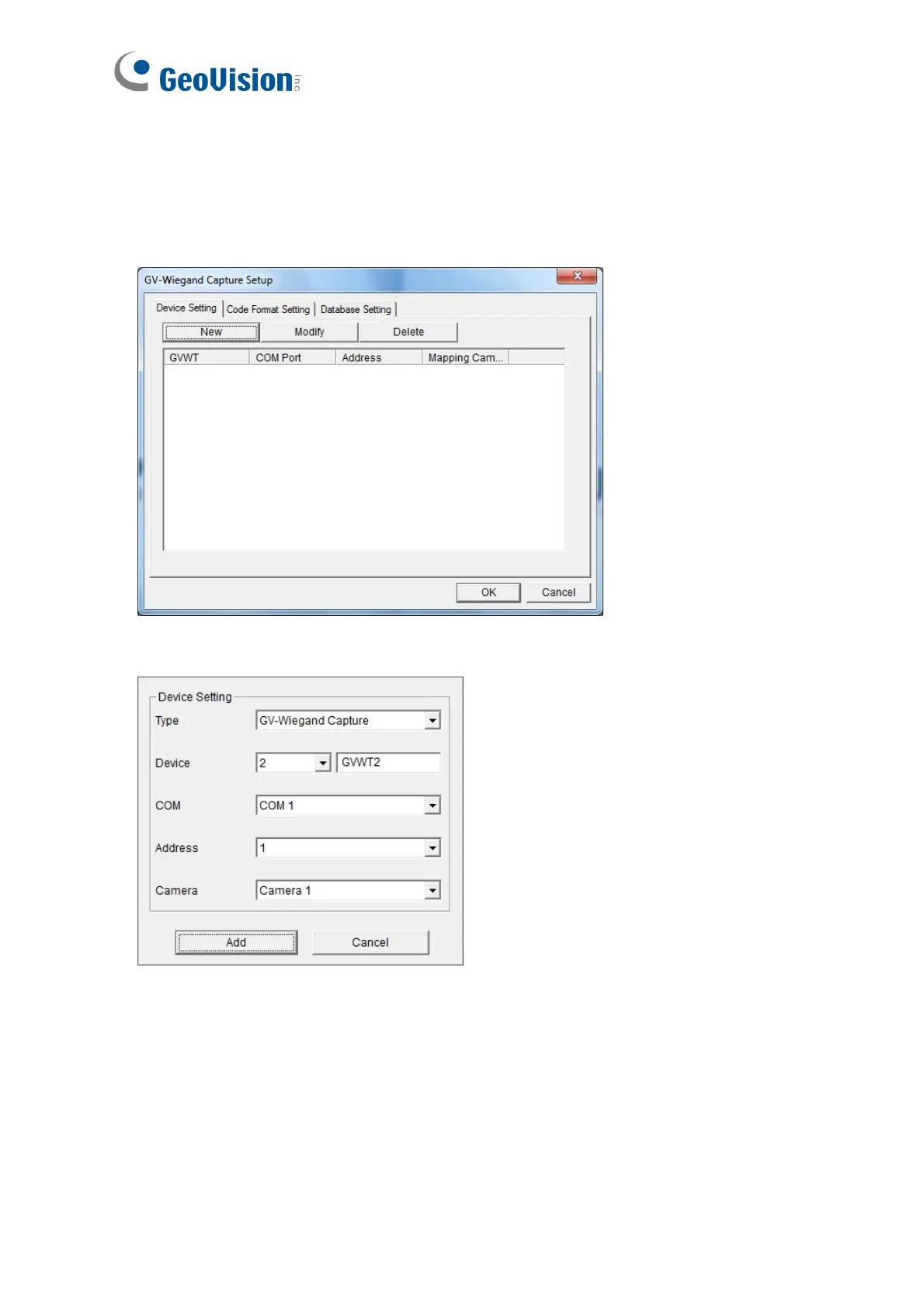

1. In GV-DVR/NVR, click the Configure button, select Accessories, and select GV
Wiegand Capture Device Setting. This dialog box appears.
2. Click the New button. This dialog box appears.
 Type: Select GV-Wiegand Capture.
 Device: Type a number and name to help you identify the reader.
 COM: Select the COM port connected to the reader.
 Address: Select the ID of the connected reader you set in GV-R/RK/DFR Config AP.
 Camera: Assign the reader to a channel to overlay card numbers on the live view.
3. Click the Add button.
