GeoVision GV-Reader1251 User Manual

2

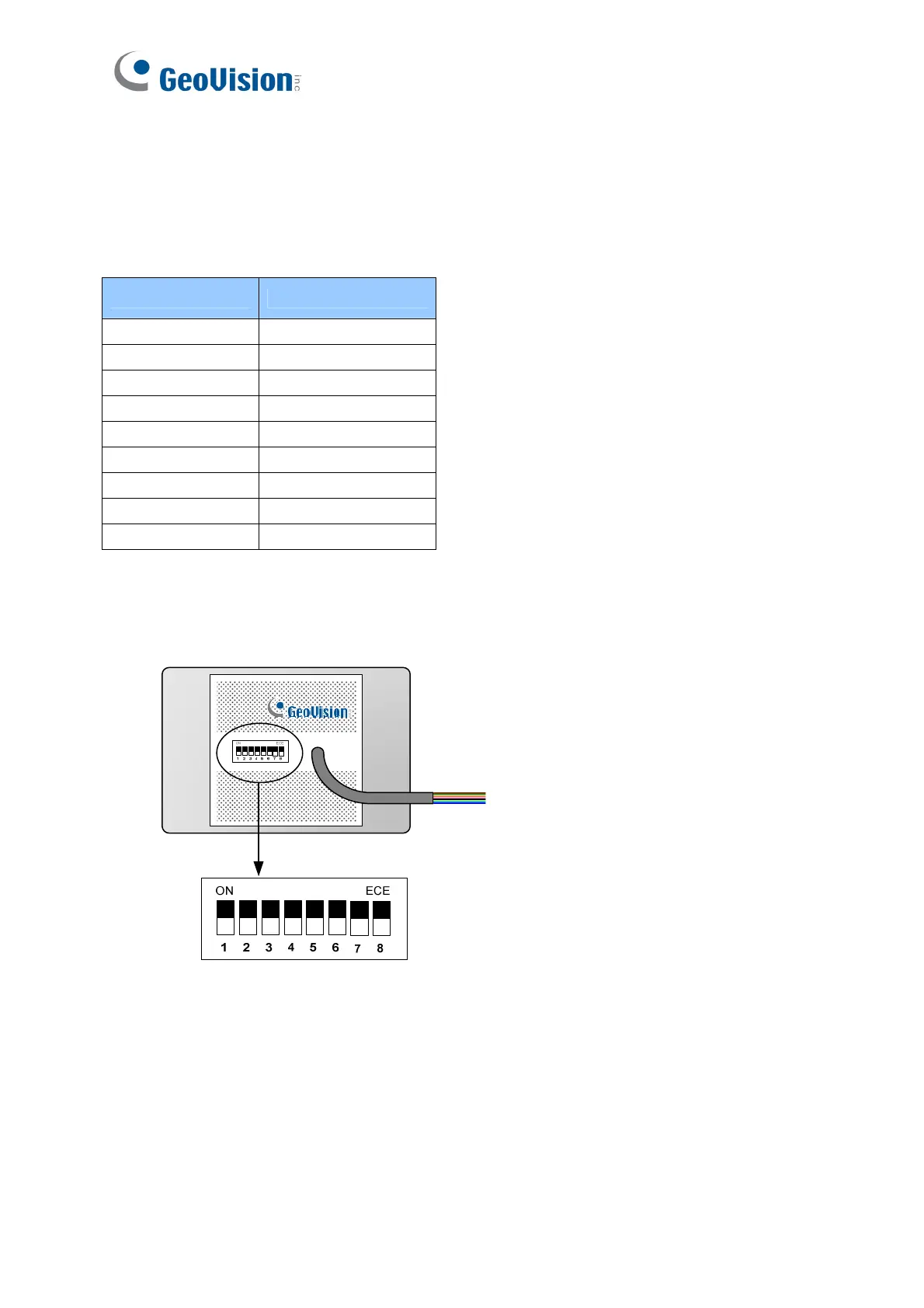

1.2 Installation
1.2.1 Electric Wire
1.2.2 Switch Setting of GV-Reader1251 / 1352 V2
Electric
Wire
Switch
Default settings are all ON.
 SW 1 Beeper Control: The default mode for the Beeper Control is the internal control.
When the setting is “On”, the Reader is sounded after a card is read. When the setting
is “Off”, the Beeper is controlled externally. You can use the external beeper control line
to activate the beeper.
Wire Color Function
Red DC 7.5 ~ 12 V
Black GND
Green Wiegand Data 0
White Wiegand Data 1
Blue RS-485 +
Light Blue RS-485 -
Yellow Beeper
Orange Green LED
Light Red Red LED
