Gerber DCS 2500 - (3 A) Keypad

Page 15
English
(3a) Keypad

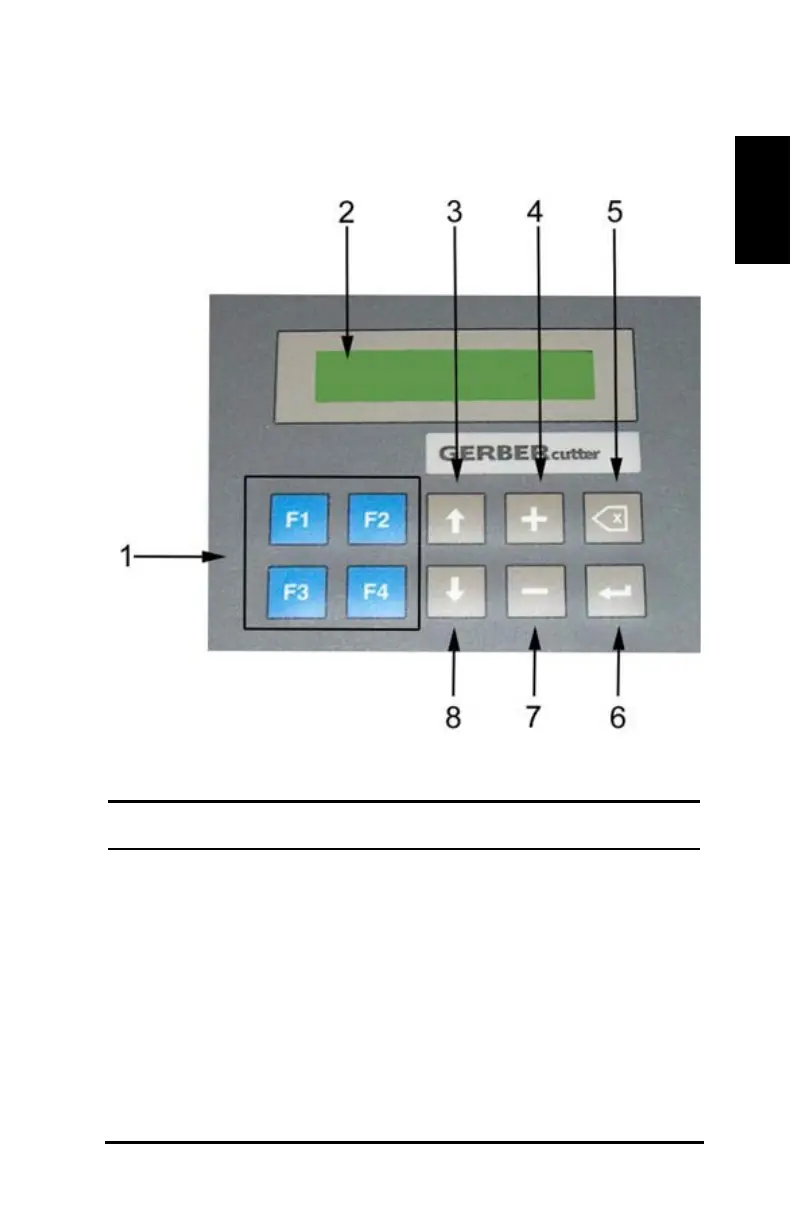

Figure 7: Beam control panel keypad
ID Component

F1, F2, F3, F4 Keys – Used in specified calibrations and
digitizing mode.

Display Screen – Displays the system mode and details
of specified calibrations.

Up Arrow key – Navigates menus and is used in
specified calibrations.

Plus key – Used in specified calibrations.

Cancel key – Push to exit any mode, return to Online
mode, or abort a paused job.
