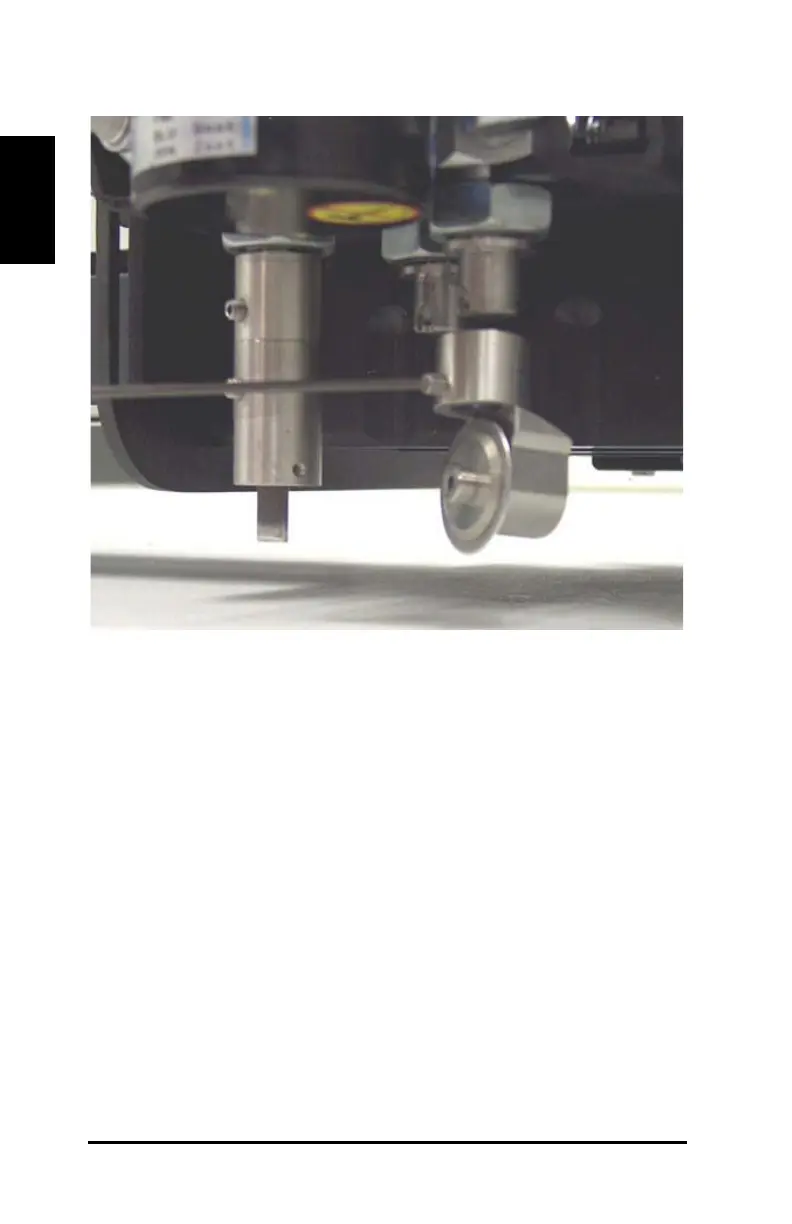

Figure 16: Cutting tool installation
2) Place the cutting tool on the tool holder.
3) Use a 5/64 in. hex wrench to tighten the set screw and attach the
cutting tool to the tool holder.
Knife Cutter Calibration Procedure
The Knife Cutter must be calibrated for the material thickness each time a
new material is cut. This procedure requires a 5/64 in. hex wrench, depth
gauge and calipers.
1) Place the caliper edge, or other flat surface, on top of the depth
gauge.
2) Turn the depth gauge face plate until the dial points to zero.
