Page 27

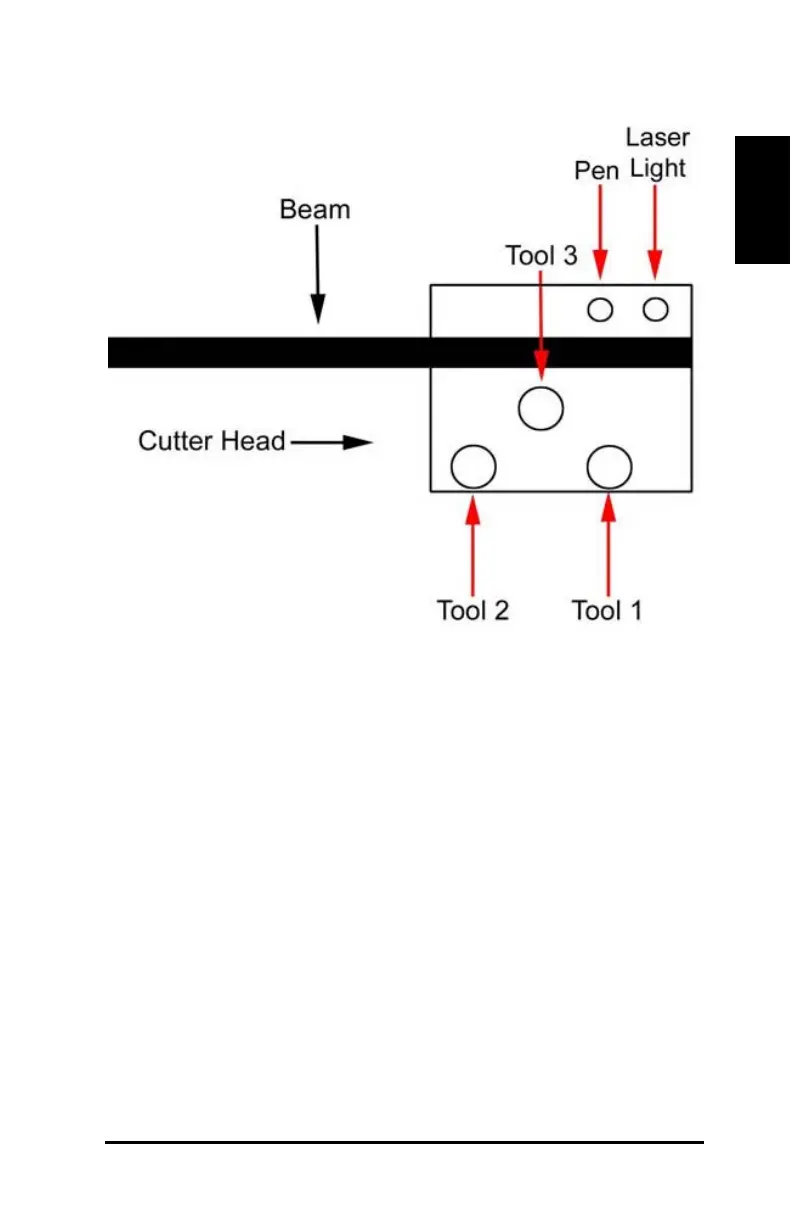

Figure 15: Tool holder locations (not to scale)
Cutting Tool Installation
Each cutting tool is equipped with a set screw that can be loosened and
tightened with a 5/64 in. hex wrench.
The calibration procedure for the Knife Cutter is explained in the Knife
Cutter Calibration Procedure section.
Each cutting tool is equipped with a set screw that can be loosened and
tightened with a 5/64 in. hex wrench.
1) Bring the desired cutting tool up to the tool holder. Figure 14
illustrates the wheel tool being installed in tool holder 1.
